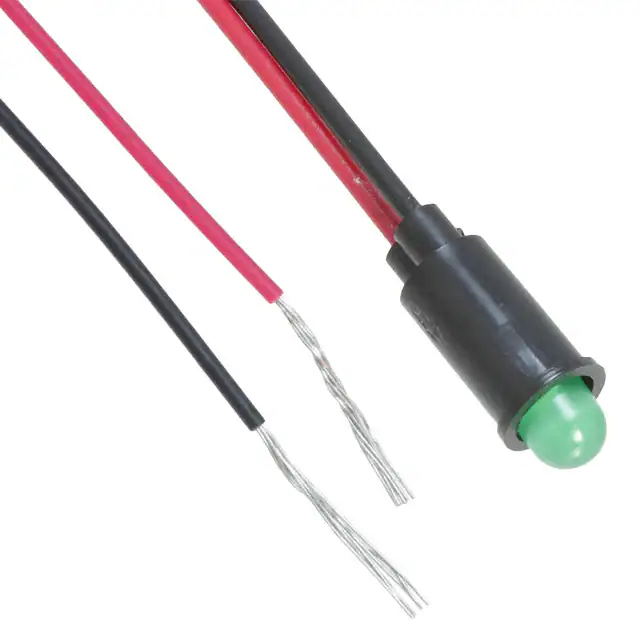

Dialight 559-8200-007F
RECT PMI IND, G, 14" LEADS
Answer first: this page is a purchasing reference for the exact part number 559-8200-007F from Dialight. Use it to start datasheet, package, manufacturer and RFQ verification; do not treat page text as a live stock, price or lead-time promise.
Key Parameters
| Part Number | 559-8200-007F |
|---|---|
| Manufacturer | Dialight |
| Category | Panel Indicators, Pilot Lights |
| series | 559 |
| packaging | Bag |
| product status | Discontinued at Digi-Key |
| param 1 | LED |
| param 2 | Green |
| param 3 | - |
| param 4 | - |
| param 5 | DC |
| param 6 | 2.1V |
| param 7 | 20mA |
| param 8 | Rectangle |
| param 9 | 0.22" x 0.14" (5.49mm x 3.53mm) |
| param 10 | 3.99mm x 2.00mm |
| param 11 | Rectangle with Flat Top |
| param 12 | 120mcd |
| param 13 | 565nm |
| param 14 | 104° |
| param 15 | Wire Leads - 14" (355.60mm) |
| param 16 | - |
| param 17 | - |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
How to Verify 559-8200-007F Before Ordering
Datasheet and parameter checks
- Confirm the full manufacturer part number, not only a shortened search keyword.
- Compare package, pinout, dimensions, voltage or rating fields, temperature range and compliance wording against the released BOM.
- Use the manufacturer datasheet or drawing for electrical and mechanical limits before approving a substitute.
RFQ fields SENICO needs
- Send exact part number, manufacturer, quantity, target delivery date, destination and required packaging.
- State whether alternates are allowed, and list any date-code, certificate, traceability or customer AVL requirement.
- Keep exact stock, factory lead time and proposed alternatives in separate quote lanes.
For 559-8200-007F, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and replacement risk before issuing a purchase order. If a supplier suggests an equivalent, record the changed fields and approval owner before comparing price.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
