Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXF6R3ARA221MF61GCAP ALUM POLY 220UF 20% 6.3V SMD Chemi-Con |
125,135 |
|
Datasheet |
 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXJ6R3ARA561MF80GCAP ALUM POLY 560UF 20% 6.3V SMD Chemi-Con |
149,859 |
|
Datasheet |
|
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXJ350ARA680MF61GCAP ALUM HYBRID 68UF 20% 35V SMD Chemi-Con |
101,984 |
|
Datasheet |
|
HXJ | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

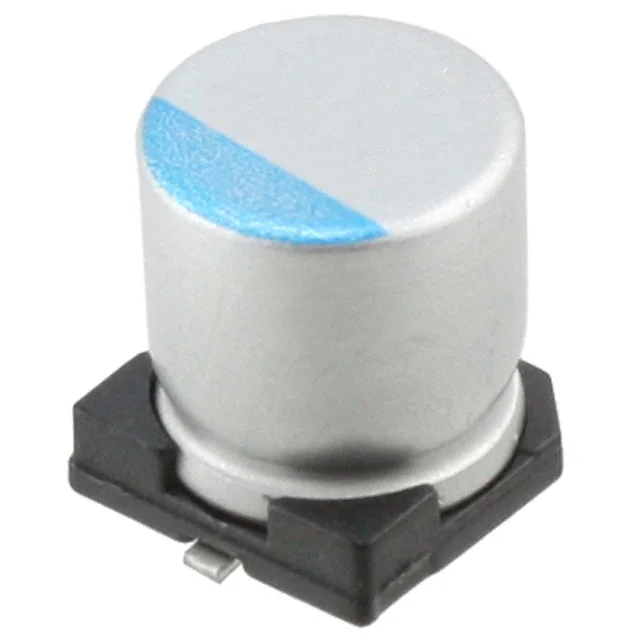

APXE100ARA680ME61GCAP ALUM POLY 68UF 20% 10V SMD Chemi-Con |
167,851 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
HHXD500ARA100MF61GCAP ALUM HYBRID 10UF 20% 50V SMD Chemi-Con |
134,971 |
|
Datasheet |
|
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 33 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXD500ARA220MF61GCAP ALUM HYBRID 22UF 20% 50V SMD Chemi-Con |
197,080 |
|
Datasheet |
|
HXD | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 77 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXD630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD Chemi-Con |
143,865 |
|
Datasheet |
|
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 30 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APSG250ELL560MF05SCAP ALUM POLY 56UF 20% 25V TH Chemi-Con |
161,373 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
HHXC160ARA470ME61GCAP ALUM HYBRID 47UF 20% 16V SMD Chemi-Con |
177,093 |
|
Datasheet |
|
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 16 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

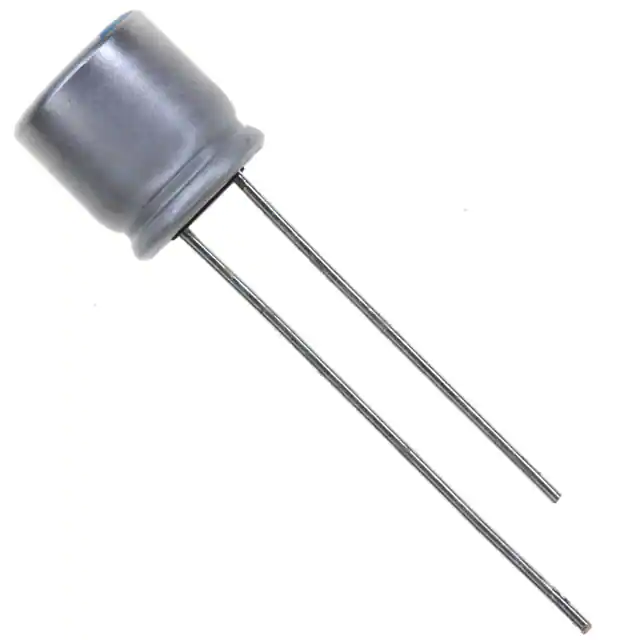

APSC6R3ELL471MH08SCAP ALUM POLY 470UF 20% 6.3V TH Chemi-Con |
183,837 |
|
Datasheet |
|
NPCAP™-PSC | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
