Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

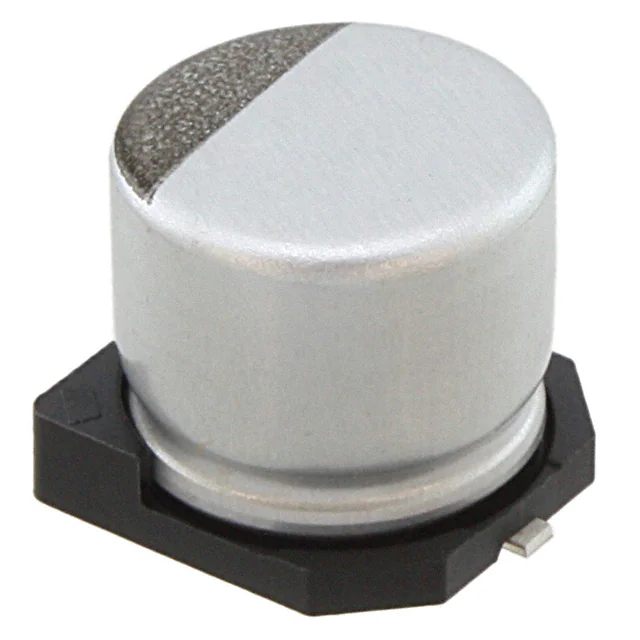

HHXA350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD Chemi-Con |
122,472 |
|
Datasheet |
 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXF250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD Chemi-Con |
119,413 |
|
Datasheet |
|
HXF | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 18mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HHXC800ARA470MJA0GCAP ALUM HYBRID 47UF 20% 80V SMD Chemi-Con |
125,096 |
|
Datasheet |
|
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 80 V | 33mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.393" L x 0.433" W (10.00mm x 11.00mm) | 0.413" (10.50mm) | - | Surface Mount |
|
HHXB500ARA330MF80GCAP ALUM HYBRID 33UF 20% 50V SMD Chemi-Con |
198,608 |
|
Datasheet |
|
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXB250ARA101MF80GCAP ALUMHYB 100UF 20% 25V SMD Chemi-Con |
111,019 |
|
Datasheet |
|
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXE100ARA470ME61GCAP ALUM POLY 47UF 20% 10V SMD Chemi-Con |
165,415 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE6R3ARA121ME61GCAP ALUM POLY 120UF 20% 6.3V SMD Chemi-Con |
146,490 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE6R3ARA101ME61GCAP ALUM POLY 100UF 20% 6.3V SMD Chemi-Con |
112,457 |
|
Datasheet |
|
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APSG160ELL152MH20SCAP ALUM POLY 1.5MF 20% 16V TH Chemi-Con |
188,776 |
|
Datasheet |
|
NPCAP™-PSG | Bulk | Active | Polymer | 1.5 mF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
APXA160ARA330MF60GCAP ALUM POLY 33UF 20% 16V SMD Chemi-Con |
162,901 |
|
Datasheet |
|
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
