Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AH-T-R-M-12VCB RELAY HR 1 FORM A 12V |
42,649 |
|
Datasheet |
 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-D-24VCB RELAY HR 1 FORM A 24V |
12,722 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AH-T-D-24VCB RELAY HR 1 FORM A 24V |
45,668 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1-T-D-M-12VCB RELAY (HEAT RESISTANT, DIODE |
20,168 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-R-M-24VCB RELAY HR 1 FORM A 24V |
33,842 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-D-M-12VCB RELAY HR 1 FORM A 12V |
18,702 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-D-M-24VCB RELAY HR 1 FORM A 12V |
21,985 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-D-M-24VCB RELAY HR 1 FORM A 24V |
43,820 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-R-M-24VCB RELAY HR 1 FORM A 24V |
23,143 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-R-P-12VCB RELAY HR 1 FORM A 12V |
14,258 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1414121-0POWER FA V23136 |
31,859 |
|
Datasheet |
|
F4A | Bulk | Active | Non Latching | 105.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CB1AH-T-D-P-24VCB RELAY HR 1 FORM A 24V |
26,522 |
|
Datasheet |
|
CB | Bulk | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
2-1904020-4V23234A0001X037-EV-100 |
27,034 |
|
Datasheet |
|
- | Box | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
CA1R-DC24V-NAUTOMOTIVE POWER RELAY |
45,604 |
|
Datasheet |
|
CA | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
7-1393302-7RELAY GEN PURPOSE SPST 40A 12V |
16,917 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1393303-0RELAY GEN PURPOSE SPST 20A 24V |
17,776 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
4-1414992-3RELAY GEN PURPOSE SPST 40A 12V |
28,128 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
4-1393303-4RELAY GEN PURPOSE SPST 20A 24V |
37,311 |
|
Datasheet |
|
F4 | Box | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

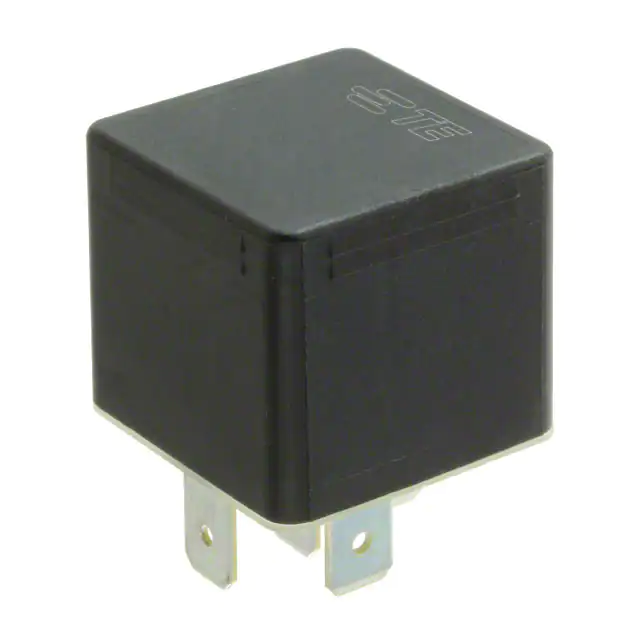

2-1904025-6V23234A0004X055-EV-100 |
12,171 |
|
Datasheet |
|
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1393303-9RELAY GEN PURPOSE SPST 40A 12V |
18,923 |
|
Datasheet |
|
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
