Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-12C-D-XRELAY AUTOMOTIVE SPST 130A 12V |
13,204 |
|
Datasheet |
 |
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-R-XRELAY AUTOMOTIVE SPST 130A 24V |
18,324 |
|
Datasheet |
|
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12C-R-XRELAY AUTOMOTIVE SPST 130A 12V |
42,012 |
|
Datasheet |
|
PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-D-XRELAY AUTOMOTIVE SPST 130A 24V |
25,082 |
|
Datasheet |
|
PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
7-1414968-8RELAY AUTOMOTIVE SPST 130A 12V |
29,377 |
|
Datasheet |
|
- | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | Resistor | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
AEBN11112RELAY AUTOMOTIVE SPST 100A 12V |
21,638 |
|
Datasheet |
|
AEB | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 60VDC - Max | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 85°C |
|
|
5-1415002-5V23132E2001B200 |
10,058 |
|
- |
|
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 17.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

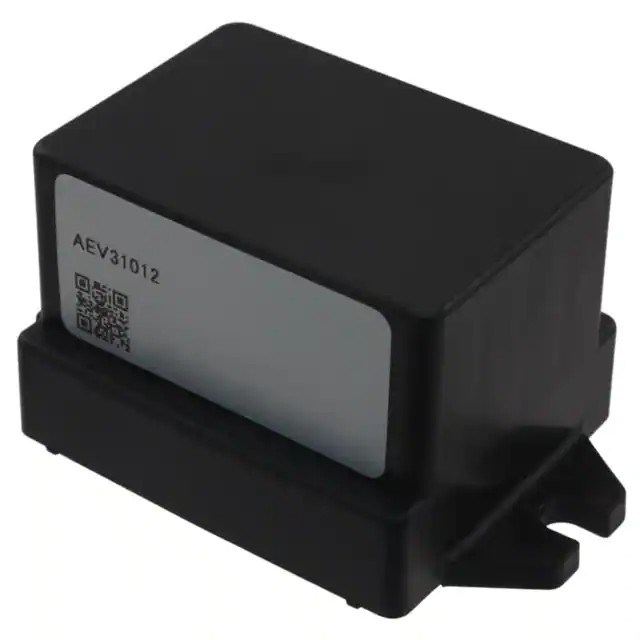

AEV31012RELAY AUTOMOTIVE SPST 10A 12V |
15,378 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 103 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|
|
AEV31024RELAY AUTOMOTIVE SPST 10A 24V |
36,717 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|

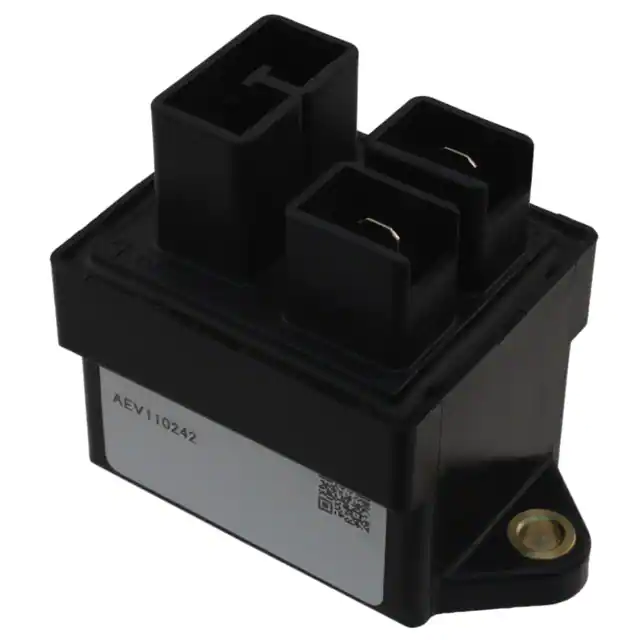

AEV110242RELAY AUTOMOTIVE SPST 10A 24V |
47,452 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 80°C |
|
|
ACNL111RELAY AUTOMOTIVE SPST 150A 12V |
37,104 |
|
Datasheet |
|
CN-L | Bulk | Active | Latching, Single Coil | 2.5 A | 12VDC | SPST-NO (1 Form A) | 150 A | 14VDC - Nom | 7 VDC | - | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Plug In | -40°C ~ 125°C |
|
|
AEVH900122RELAY AUTOMOTIVE SPST 100A 12V |
33,166 |
|
Datasheet |
|
AEV | Bulk | Active | Non Latching | 453 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 450VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|

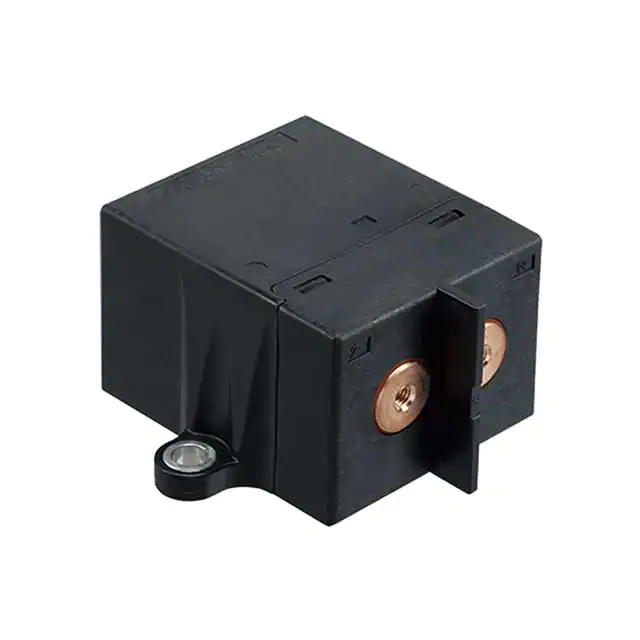

AEVS960122RELAY AUTO SPST-NO 60A 12V |
44,520 |
|
Datasheet |
|
AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C |
|

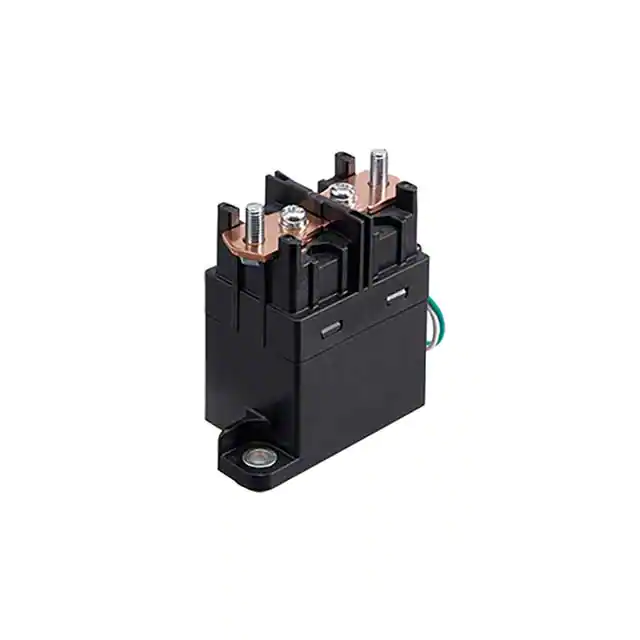

AEVS16012RELAY AUTO SPST-NO 60A 12V |
33,099 |
|
Datasheet |
|
AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Wire Leads | -40°C ~ 80°C |
|
AEV18024RELAY AUTOMOTIVE SPST 80A 24V |
21,934 |
|
Datasheet |
|
AEV | Bulk | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|

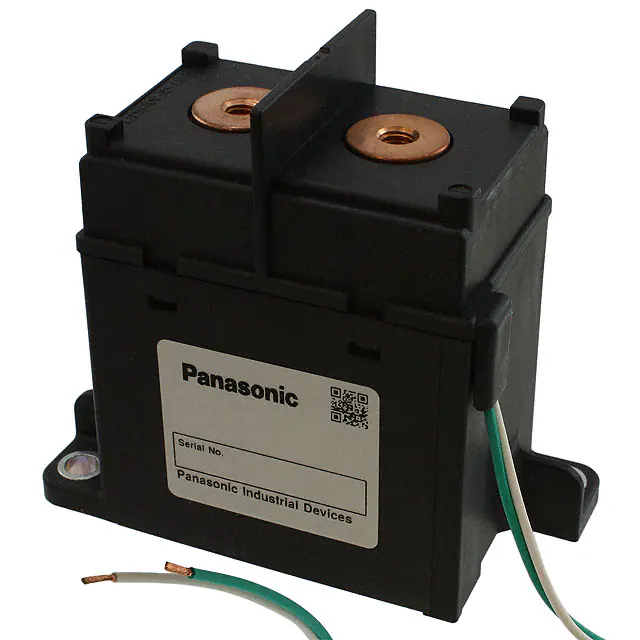

AEV17024RELAY AUTOMOTIVE SPST 200V 24V |
40,377 |
|
Datasheet |
|
AEV | Bulk | Last Time Buy | Non Latching | 250 mA | 24VDC | SPST-NO (1 Form A) | 200 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 80°C |
|
AEV19012WRELAY AUTOMOTIVE SPST 300A 12V |
46,080 |
|
Datasheet |
|
AEV | Tray | Active | Non Latching | 3.2 A | 12VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 9 VDC | 2 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|

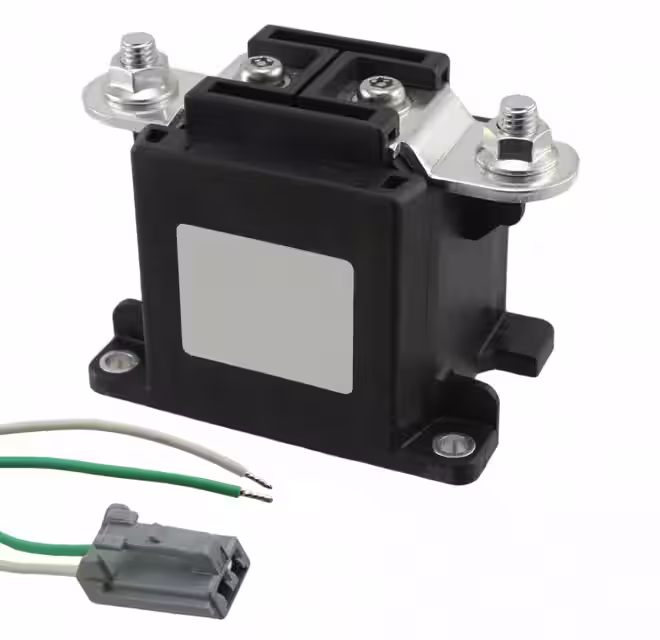

AEV19024WRELAY AUTOMOTIVE SPST 300A 24V |
19,268 |
|
Datasheet |
|
AEV | Tray | Active | Non Latching | 1.9 A | 24VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 18 VDC | 4 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
G8JN-1C7T-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
28,104 |
|
Datasheet |
|
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1C7T-MF-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
32,712 |
|
Datasheet |
|
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
