Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

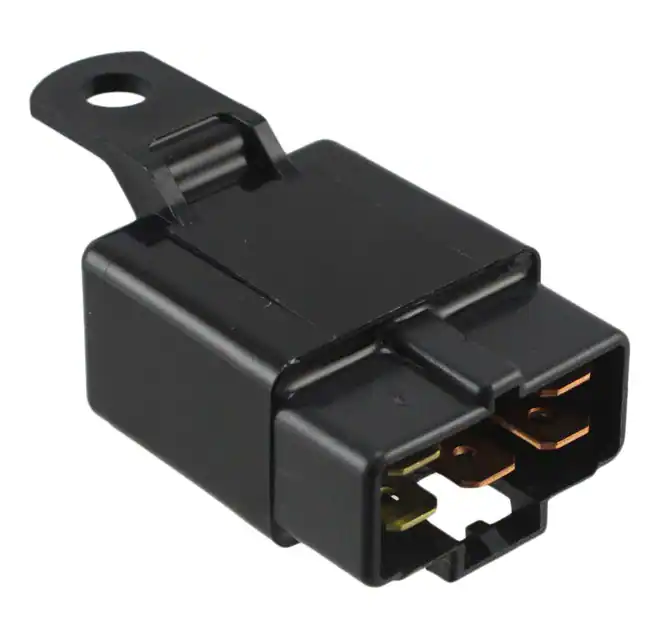

CA1A-DC12V-ARELAY AUTOMOTIVE SPST 30A 12V |
21,733 |
|
Datasheet |
 |
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1A-DC24V-NRELAY AUTOMOTIVE SPST 10A 24V |
28,162 |
|
Datasheet |
|
CA | Tray | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
CA1B-DC12V-NRELAY AUTOMOTIVE SPST 20A 12V |
25,608 |
|
Datasheet |
|
CA | Tray | Obsolete | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
CB1-D-12VRELAY AUTOMOTIVE SPDT 40A 12V |
33,555 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
40,949 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
14,078 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
17,549 |
|
Datasheet |
|
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1-D-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
35,509 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1A-D-12VRELAY AUTOMOTIVE SPST 40A 12V |
34,898 |
|
Datasheet |
|
CB | Tube | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
17,961 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
15,115 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1A-D-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
11,692 |
|
Datasheet |
|
CB | Tube | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-24VRELAY AUTOMOTIVE SPST 20A 24V |
43,117 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
10,503 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AF-D-P-12VRELAY AUTOMOTIVE SPST 40A 12V |
33,170 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1F-D-24VRELAY AUTOMOTIVE SPDT 20A 24V |
44,340 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

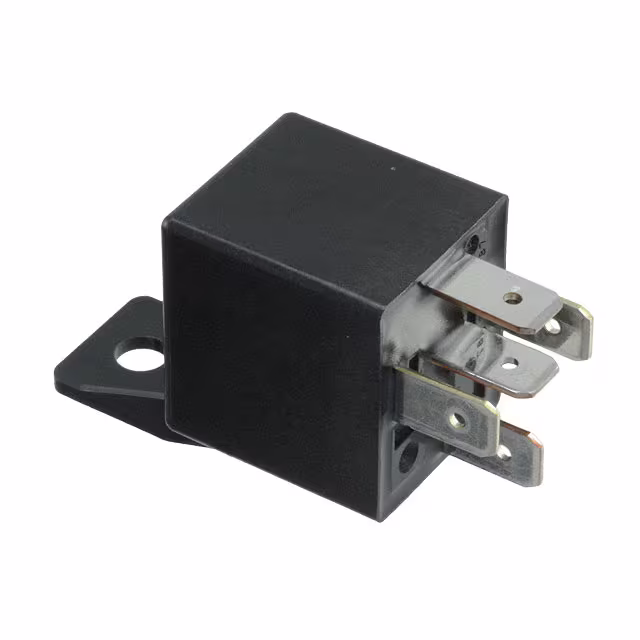

CB1F-D-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
32,189 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-D-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
17,925 |
|
Datasheet |
|
CB | Bulk | Obsolete | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

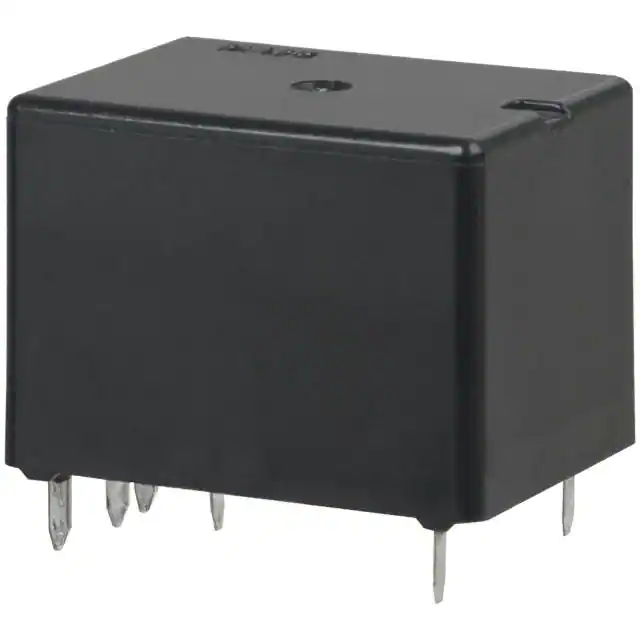

CF2-12VRELAY AUTOMOTIVE SPDT 10A 12V |
23,060 |
|
Datasheet |
|
CF | Tube | Obsolete | Non Latching | 53 mA | 12VDC | SPDT (1 Form C) x 2 | 10 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CM1-D-12VRELAY AUTOMOTIVE SPDT 35A 12V |
11,524 |
|
Datasheet |
|
CM | Bulk | Obsolete | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
