DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP12RTSWITCH PIANO DIP SPST 0.025A 24V |
4,044 |
|
Datasheet |
 |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP12ETSWITCH PIANO DIP SPST 0.025A 24V |
3,652 |
|
Datasheet |
|
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

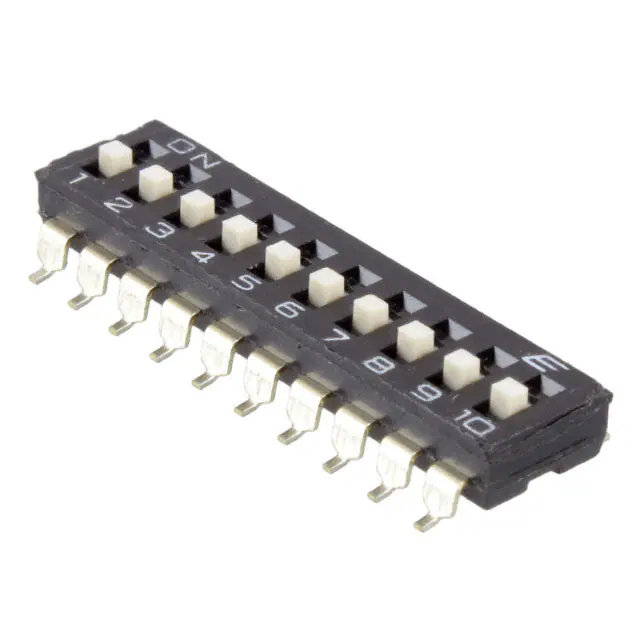

KAE10LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,129 |
|
Datasheet |
|
KAE | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
218-10LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
4,689 |
|
Datasheet |
|
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-10LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
3,060 |
|
Datasheet |
|
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

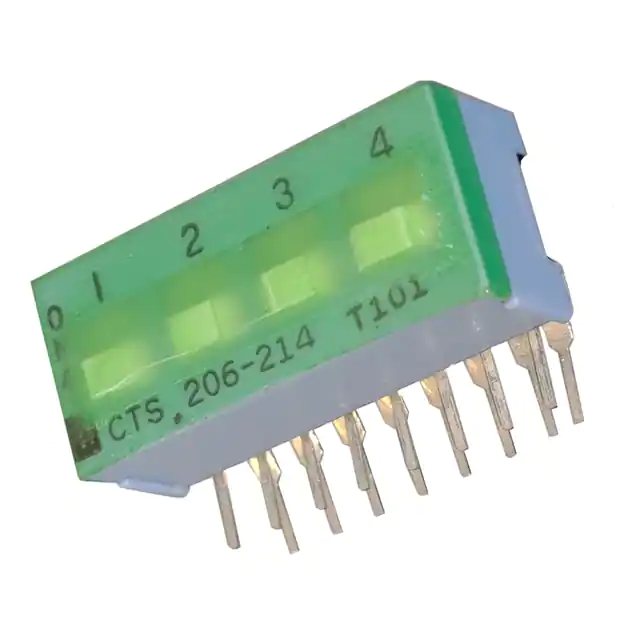

206-214RASTSWITCH SLIDE DIP DPST 0.05A 24V |
2,232 |
|
Datasheet |
|
206RA | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS02C-254-2L-12BESWITCH PIANO DIP SPST 0.025A 24V |
2,979 |
|
Datasheet |
|
DS02-254 | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
20412STRSWITCH SLIDE DIP SPST 0.05A 24V |
3,198 |
|
Datasheet |
|
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
204-12LPSTRSWITCH SLIDE DIP SPST 0.05A 24V |
2,054 |
|
Datasheet |
|
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

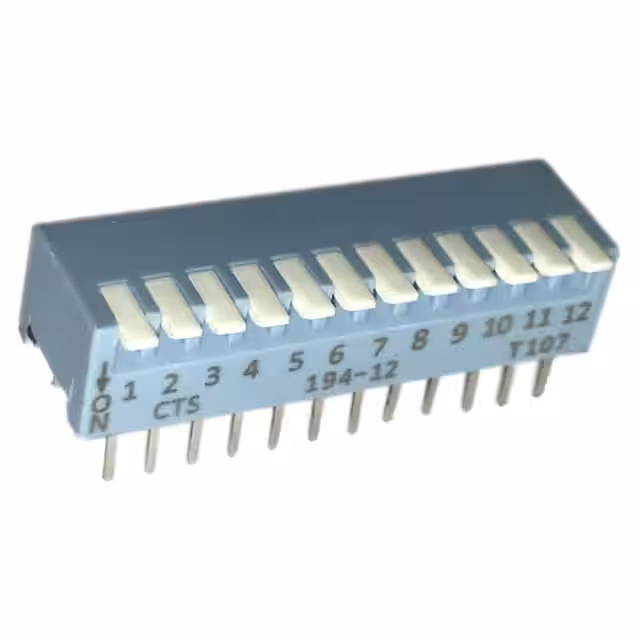

194-12MSSWITCH PIANO DIP SPST 0.05A 24V |
4,672 |
|
Datasheet |
|
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
194-12MSNSWITCH PIANO DIP SPST 0.05A 24V |
3,201 |
|
Datasheet |
|
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
ADF04SASWITCH SLIDE DIP SPST 0.025A 24V |
2,987 |
|
Datasheet |
|
ADF | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1571999-4SWITCH PIANO DIP SPST 0.025A 24V |
3,331 |
|
Datasheet |
|
ADP | Bulk | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1571999-9SWITCH PIANO DIP SPST 0.025A 24V |
2,697 |
|
Datasheet |
|
ADP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-124RASSWITCH SLIDE DIP SPDT 0.05A 24V |
4,491 |
|
Datasheet |
|
206RA | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
ADPA07SWITCH PIANO DIP SPST 0.025A 24V |
3,367 |
|
Datasheet |
|
ADPA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF05SWITCH SLIDE DIP SPST 0.025A 24V |
4,360 |
|
Datasheet |
|
ADF | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
2-1825058-0SWITCH STANDARD DIP SPST |
3,699 |
|
Datasheet |
|
ADE | Tape & Reel (TR) | Active | SPST | 8 | - | - | Standard | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
435668-3SWITCH ROCKER DIP SPST |
3,413 |
|
Datasheet |
|
7100 | Tube | Active | SPST | 4 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
|
KR10ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,971 |
|
Datasheet |
|
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
