DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDA-06T-VSWITCH SLIDE DIP SPST 0.025A 24V |
2,833 |
|
Datasheet |
 |
NDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
204-123STSWITCH SLIDE DIP SPDT 0.05A 24V |
4 |
|
Datasheet |
|
204 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
GDH02SA04SWITCH SLIDE DIP SPST 0.025A 24V |
3,215 |
|
Datasheet |
|
GDH | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

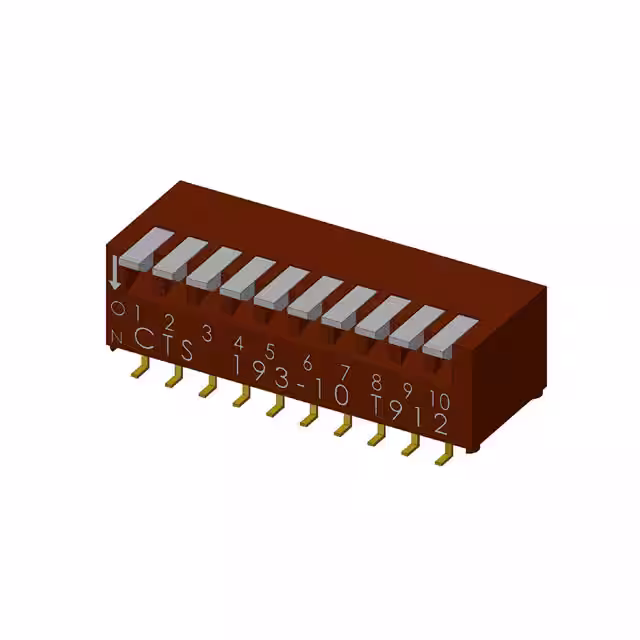

193-10MSRSWITCH PIANO DIP SPST 0.05A 24V |
2,578 |
|
Datasheet |
|
193 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

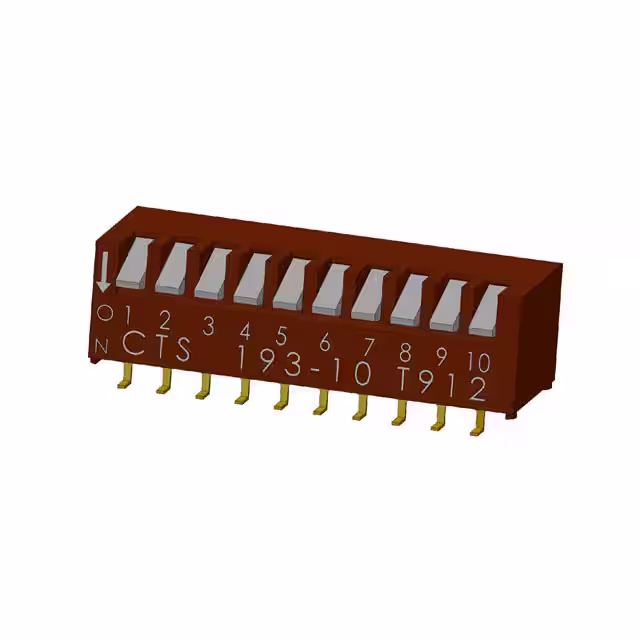

193-10MSRNSWITCH PIANO DIP SPST 0.05A 24V |
4,243 |
|
Datasheet |
|
193 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KAN1102RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V |
2,482 |
|
- |
|
KAN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
KAN1104RR-TAPEOFFSETSWITCH SLIDE DIP SPST 0.025A 24V |
3,681 |
|
- |
|
KAN | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
KAD04SGGRSwitches |
2,960 |
|
Datasheet |
|
KAD | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -30°C ~ 85°C |
|
|
1-1571999-1SWITCH PIANO DIP SPST |
4,754 |
|
Datasheet |
|
ADP | Tube | Active | SPST | 5 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
5-1825059-3SWITCH STANDARD DIP SPST |
3,894 |
|
Datasheet |
|
ADF | Bulk | Active | SPST | 10 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
KAJ12SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,206 |
|
Datasheet |
|
KAJ | Tape & Reel (TR) | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
206-215RASTSWITCH SLIDE DIP DPST 0.05A 24V |
2,346 |
|
Datasheet |
|
206RA | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
SD02H0BDSWITCH SLIDE DIP SPST 0.1A 25V |
3,113 |
|
Datasheet |
|
SD | Tube | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
206-125RASWITCH SLIDE DIP SPDT 0.05A 24V |
3,525 |
|
Datasheet |
|
206RA | Tube | Active | SPDT | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
5-5435640-4SWITCH ROCKER DIP SPST |
3,287 |
|
Datasheet |
|
7100 | Tube | Active | SPST | 4 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
3-435668-0SWITCH ROCKER DIP SPST 0.06A 5V |
3,860 |
|
Datasheet |
|
7100 | Tube | Obsolete | SPST | 10 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
CS-4-12YTASWITCH ROTARY DIP SPDT 0.1A 16V |
4,439 |
|
Datasheet |
|
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | - | Yes | - | -25°C ~ 70°C |
|
CS-4-12YTBSWITCH ROTARY DIP SPDT 0.1A 16V |
2,615 |
|
Datasheet |
|
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | - | -25°C ~ 70°C |
|
|
CS-4-12YASWITCH ROTARY DIP SPDT 0.1A 16V |
3,757 |
|
Datasheet |
|
CS-4 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | - | Yes | - | -25°C ~ 70°C |
|
|
CS-4-12YBSWITCH ROTARY DIP SPDT 0.1A 16V |
2,940 |
|
Datasheet |
|
CS-4 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | - | -25°C ~ 70°C |
