AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

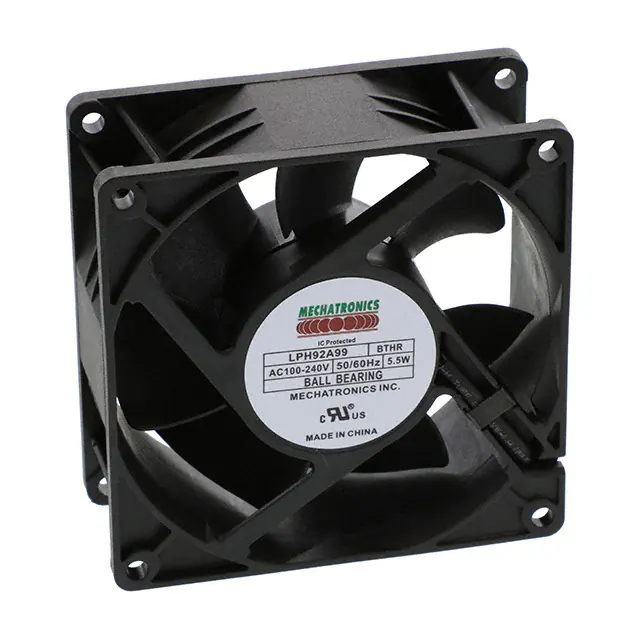

LPH92A99-BTHRFAN AXIAL 92X38MM 100-240VAC |
81 |
|
Datasheet |
 |
LPH92A99 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 68.0 CFM (1.90m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 42.0dB(A) | 5.50W | 3500 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.384 lb (174.18 g) |
|
UF92A12-BTHR-CCFAN AXIAL 92X38MM 115VAC TERM |
19 |
|
Datasheet |
|
UF92A | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 46.0 CFM (1.29m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Conformal Coating | 38.0dB(A) | 12.00W | 3300 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cETL, ETL, TUV | 0.992 lb (449.96 g) |
|
OA80EC-UR-1WBEC FAN 80X38MM 85-265VAC 39CFM |
29 |
|
Datasheet |
|
OA80EC | Box | Active | 110/220VAC | Square - 80mm L x 80mm H | 38.00mm | 39.0 CFM (1.09m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 32.0dB | 1.50W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.397 lb (180.08 g) |
|
11938TB-A1N-NP-00FAN 119MM X 38MM 115VAC TERMINAL |
10 |
|
Datasheet |
|
11938TB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 117.9 CFM (3.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 50.0dB | 17.00W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
OA119AP-11-1WBFAN AXIAL 127X38.5MM 115VAC WIRE |
20 |
|
Datasheet |
|
OA119 | Box | Active | 115VAC | Square - 127mm L x 127mm H | 38.50mm | 130.0 CFM (3.64m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 46.0dB | 14.00W | 2750 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.3 lbs (589.7 g) |
|
|
OA119AP-11-3TBFAN AXIAL 127X38.5MM 115VAC TERM |
9 |
|
Datasheet |
|
OA119 | Bulk | Active | 115VAC | Square - 127mm L x 127mm H | 38.50mm | 74.0 CFM (2.07m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.0dB | 7.00W | 1400 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.3 lbs (589.7 g) |
|
OA9232EC-UR-1WBEC FAN 92X32MM 85-265VAC 56CFM |
91 |
|
Datasheet |
|
OA9232EC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 32.00mm | 58.0 CFM (1.62m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 43.0dB | 2.10W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.325 lb (147.42 g) |
|
109S085FAN 120X25MM 100VAC |
50 |
|
Datasheet |
|
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 12.00W | 2900 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
OA109AP-11-1TB03FAN AXIAL 119.5X38.5MM 115VAC |
42 |
|
Datasheet |
|
OA109 | Box | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 63.0 CFM (1.76m³/min) | - | Ball | Tubeaxial | Temperature Sensor | 37.0dB | 16.00W | 1600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|
OA938EC-UR-1WBEC FAN 92X38MM 85-265VAC 60CFM |
35 |
|
Datasheet |
|
OA938EC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 0.270 in H2O (67.2 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 43.0dB | 2.20W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.420 lb (190.51 g) |
|

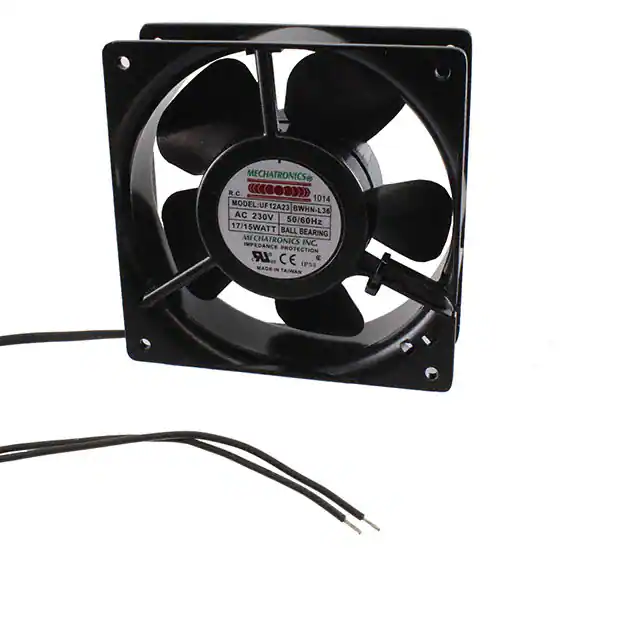

UF12A23-BWHNR-L36FAN AXIAL 120X38MM 230VAC WIRE |
72 |
|
Datasheet |
|
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 15.00W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
109-183FAN 60X28MM 115VAC |
70 |
|
Datasheet |
|
San Ace 60 | Box | Active | 115VAC | Square - 60mm L x 60mm H | 28.00mm | 11.7 CFM (0.328m³/min) | 0.075 in H2O (18.6 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 4.00W | 2700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, TUV, UL | 0.265 lb (120.2 g) |
|
OD9225-SPOTFAN AXIAL 92.5X25MM 120VAC |
12 |
|
Datasheet |
|
OD9225 | Bulk | Active | 120VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Kit, Thermal Overload Protector (TOP) | 23~35dB | 19.00W | 1500 RPM | Cord and Plug | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OA109AP-11-1TBXCIP55FAN AC 120X38 115V W/IP55 |
10 |
|
Datasheet |
|
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.50mm | 104.0 CFM (2.91m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 15.00W | 3000 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | - |
|
4715HS-23T-B50-AM0FAN AXIAL 119X38MM 230VAC TERM |
47 |
|
Datasheet |
|
HS | Box | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 44.0dB | 15.50W | 3100 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | 14 ~ 149°F (-10 ~ 65°C) | CE, UL, VDE | 1.3 lbs (589.7 g) |
|

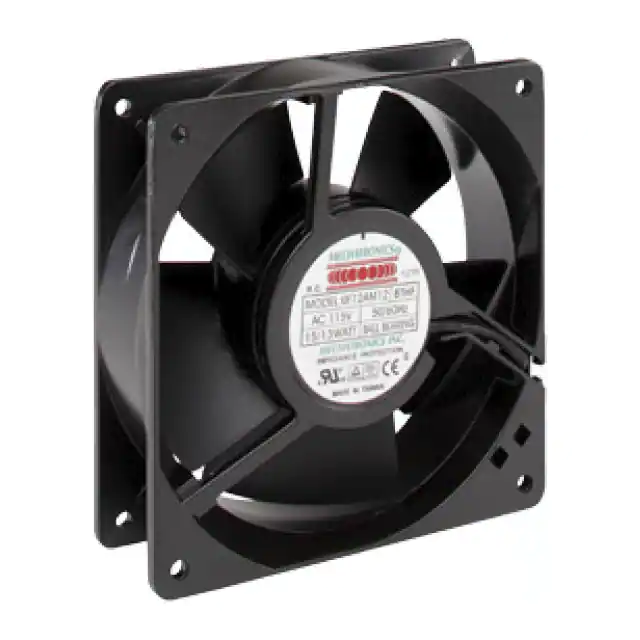

UF12AMR23-BTHR-FAC FAN AXIAL 120X120X38MM, 230VA |
6 |
|
Datasheet |
|
UF12AMR | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | 2950 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | - | - |
|
UF15P23-BTHRFAN AXIAL 172X51MM 230VAC TERM |
30 |
|
Datasheet |
|
UF15P | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 29.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
|
LPH12A99-BWHR-B1-2EMEC FAN AXIAL 120X120X38MM 100-24 |
33 |
|
Datasheet |
|
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 49.0dB(A) | 9.50W | 3500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.631 lb (286.20 g) |
|
4550NFAN AXIAL 119X38MM 230VAC TERM |
13 |
|
Datasheet |
|
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 85.2 CFM (2.39m³/min) | - | Sintec | Tubeaxial | - | 44.0dB(A) | 16.50W | 2550 RPM | 2 Terminals | - | 14 ~ 131°F (-10 ~ 55°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
FKA1-17251NBHT31FAN AXIAL 172X50.8MM 115VAC TERM |
99 |
|
Datasheet |
|
FKA1-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | Tubeaxial | - | 57.7dB(A) | 51.8W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
