AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA5920-23TBFAN AXIAL 172X50.8MM 230VAC TERM |
9 |
|
Datasheet |
 |
OA5920 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB | 41.00W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 2 lbs (907.2 g) |
|
8850NFAN AXIAL 80X38MM 230VAC WIRE |
20 |
|
Datasheet |
|
8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 21.8 CFM (0.610m³/min) | - | Sintec | Tubeaxial | - | 24.0dB(A) | 12.50W | 2150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
OA109AP-11-1WB1855FAN AXIAL 119.5X38.5MM 115VAC |
19 |
|
Datasheet |
|
OA109 | Box | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 48.0dB | 20.00W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.3 lbs (589.7 g) |
|
OA109AP-22-1TB1855FAN AXIAL 119.5X38.5MM 230VAC |
10 |
|
Datasheet |
|
OA109 | Box | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 48.0dB | 10.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.3 lbs (589.7 g) |
|

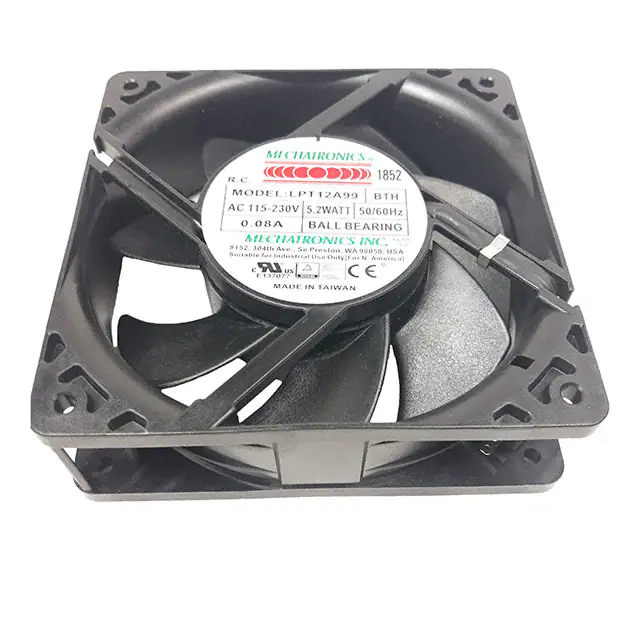

LPT12A99-BTHREC FAN AXIAL 120X120X38MM 100-24 |
31 |
|
Datasheet |
|
LPT12A99 | Bulk | Active | 115 ~ 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 43.0dB(A) | 4.90W | 3200 RPM | 2 Terminals | - | - | - | 0.644 lb (292.11 g) |
|
UF15PE23-BWHRFAN AXIAL 172X51MM 230VAC WIRE |
16 |
|
Datasheet |
|
UF15PE | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 1.8 lbs (816.5 g) |
|

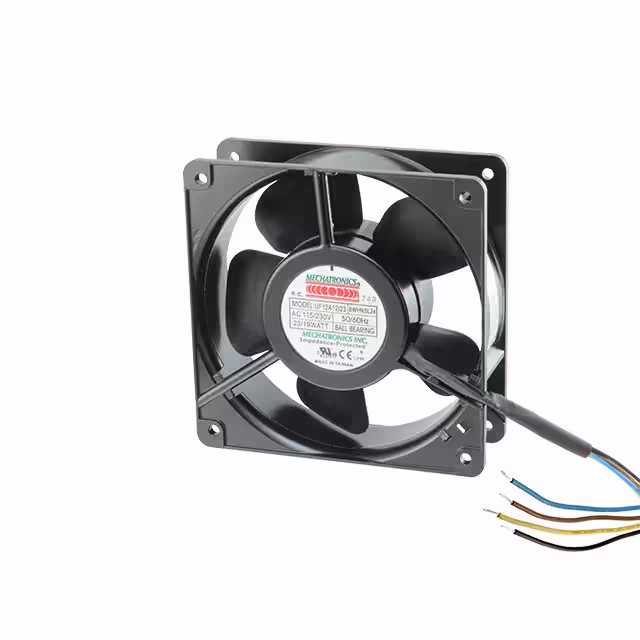

UF12A12/23-BWHNSR-L24FAN AXIAL 120X38MM 115/230VAC |
24 |
|
Datasheet |
|
UF12A | Bulk | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Dual Voltage, Salt Fog Rated | 46.0dB(A) | 12.00W, 15.00W | 3100 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, UL | 1.168 lbs (530 g) |
|
FDA2-17251NBHW4FFAN AXIAL 172X51MM 115VAC WIRE |
55 |
|
Datasheet |
|
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 25.00W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
OA119AP-22-1TB1855FAN AXIAL 127X38.5MM 230VAC TERM |
19 |
|
Datasheet |
|
OA119 | Box | Active | 230VAC | Square - 127mm L x 127mm H | 38.50mm | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | - | 48.0dB | 26.00W | 2950 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.4 lbs (635 g) |
|
19030519AFAN AXIAL 119X39MM 115VAC MX2B2 |
70 |
|
Datasheet |
|
Muffin XL AC | Box | Active | 115VAC | Square - 119mm L x 119mm H | 39.00mm | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Ball | Tubeaxial | - | 47.6dB(A) | 15.00W | 3100 RPM | 2 Wire Leads | - | - | CE, cUL, UL | 1.3 lbs (589.7 g) |
|

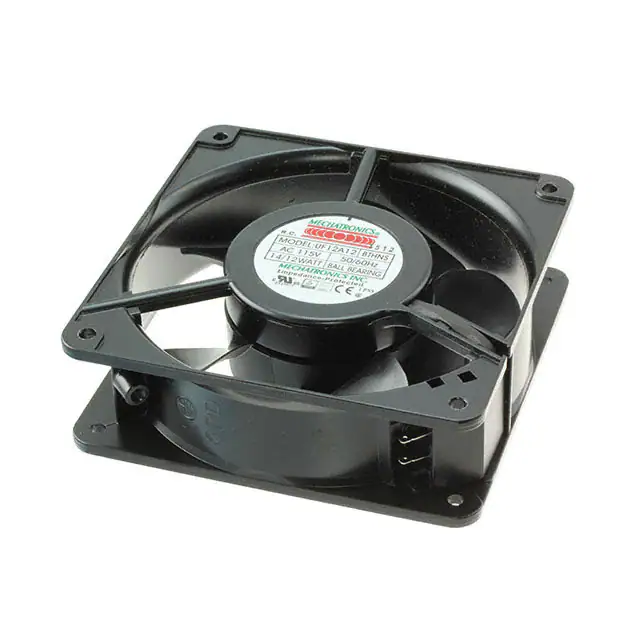

UF12A12-BTHNSRFAN 120X38MM 115V IP55 SALT FOG |
12 |
|
Datasheet |
|
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Salt Fog Rated | 46.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
OA119AP-11-1TB1855FAN AXIAL 127X38.5MM 115VAC TERM |
14 |
|
Datasheet |
|
OA119 | Box | Active | 115VAC | Square - 127mm L x 127mm H | 38.50mm | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | - | 48.0dB | 26.00W | 2950 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.4 lbs (635 g) |
|
OA172SAP-11-2WBAC FAN 172MM X 51MM |
5 |
|
Datasheet |
|
OA172SA | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | - | 39.8dB(A) | 20.00W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
4890NFAN AXIAL 119X38MM 230VAC TERM |
10 |
|
Datasheet |
|
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 47.0 CFM (1.32m³/min) | - | Sintec | Tubeaxial | - | 25.0dB(A) | 11.00W | 1550 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
OA172SAP-11-1TBIP55FAN AXIAL 172X51MM 115VAC TERM |
24 |
|
Datasheet |
|
OA172SAP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 58.0dB | 31.00W | 3400 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
|
UF15PC12/23-BWHRFAN 172X150X51MM 115/230VAC |
22 |
|
Datasheet |
|
UF15PC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 29.00W, 31.00W | 3400 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
109S087FAN 120X25MM 230VAC |
9 |
|
Datasheet |
|
San Ace 120 | Box | Active | 230VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 12.00W | 2900 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
OA172AN-11-1TBFAN AXIAL 172X50.8MM 115VAC TERM |
5 |
|
Datasheet |
|
OA172AN | Bulk | Active | 115VAC | Round - 172mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor | 52.0dB | 35.00W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | 2.7 lbs (1.2 kg) |
|
|
109S024FAN 120X38MM 120VAC |
22 |
|
Datasheet |
|
San Ace 120 | Box | Active | 120VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
|
|
109S005ULFAN 120X38MM 100VAC |
20 |
|
Datasheet |
|
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
