AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15PC23-BWHNRFAN AXIAL 172X51MM 230VAC WIRE |
4 |
|
Datasheet |
 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 29.00W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
9AD0901M12FAN 92X38MM 90/264VAC |
10 |
|
Datasheet |
|
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 41.7 CFM (1.17m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 3.00W | 3100 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.551 lb (249.93 g) |
|
|
15038PB-B3L-GP-00FAN 150MM X 172MM X 38MM 230VAC |
16 |
|
Datasheet |
|
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 35.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
LPT12A99-BWHR-2EM-EXEC FAN AXIAL 120X120X38MM 100-24 |
3 |
|
Datasheet |
|
LPT12A99 | Bulk | Active | 115 ~ 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 43.0dB(A) | 4.90W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | ATEX | 0.644 lb (292.11 g) |
|
|
09225PB-B2L-EA-00FAN 92MM X 25MM 200VAC TERMINAL |
15 |
|
Datasheet |
|
09225PB | Bulk | Active | 220VAC | Square - 92.5mm L x 92.5mm H | 25.00mm | 34.5 CFM (0.966m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 10.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

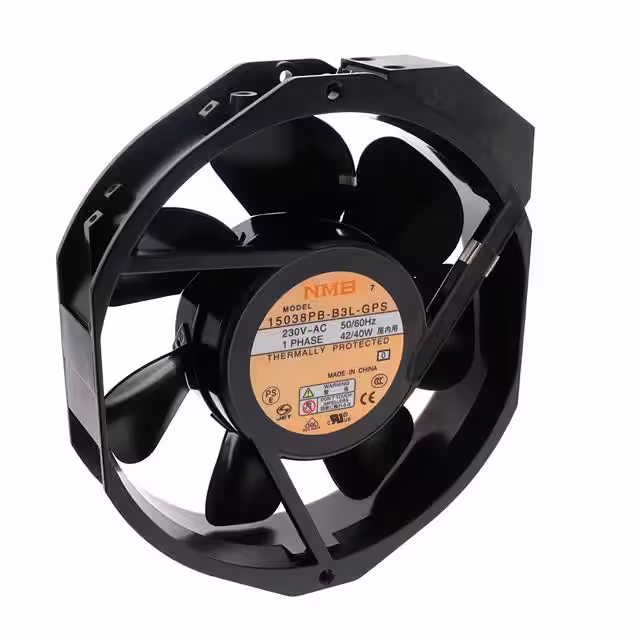

15038PB-B3L-GP-S0FAN 150MM X 172MM X 38MM 230VAC |
17 |
|
Datasheet |
|
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 35.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
55442.55250AC FAN BLOWER CROSSFLOW |
7 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UF25GC23-BWHNSRFAN 254X89MM 230V IP55 SALT FOG |
2 |
|
Datasheet |
|
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
R87F-A1A85HPFAN AXIAL 80X38MM 100VAC TERM |
3 |
|
Datasheet |
|
R87F | Bulk | Active | 100VAC | Square - 80mm L x 80mm H | 38.00mm | 32.1 CFM (0.899m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 32.0dB | 10.00W | 2700 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 0.617 lb (279.87 g) |
|

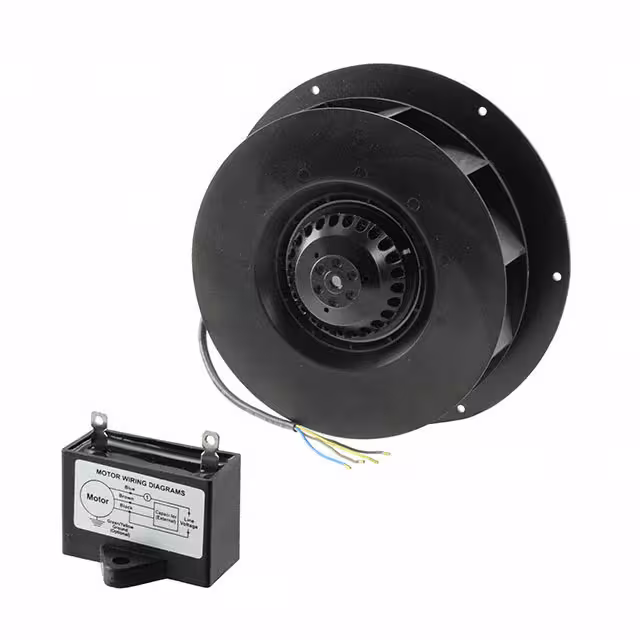

UF220APA23-H2C2FIMPELLER 223X71MM 230VAC RING |
15 |
|
Datasheet |
|
UF220APA-F | Bulk | Active | 230VAC | Round - 259mm Dia | 97.80mm | 434.0 CFM (12.15m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 117W | 2650 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
UF16FC12-BWHR4AC FAN AXIAL 160X160X62MM, 120VA |
11 |
|
Datasheet |
|
UF16FC | Bulk | Active | 115VAC | Square - 160mm L x 160mm H | 62.00mm | 265.0 CFM (7.42m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 56.0dB(A) | 41.00W | 3400 RPM | 2 Wire Leads | - | - | - | - |
|
UF225(69)APA12-H1C2AIMPELLER 225X69MM 115VAC |
8 |
|
Datasheet |
|
UF225(69)APA | Bulk | Active | 115VAC | Round - 225mm Dia | 69.00mm | 550.0 CFM (15.40m³/min) | 2.305 in H2O (574.2 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 72.0dB(A) | 125W | 2950 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 5 lbs (2.3 kg) |
APA23-H2C2A.jpg)
|

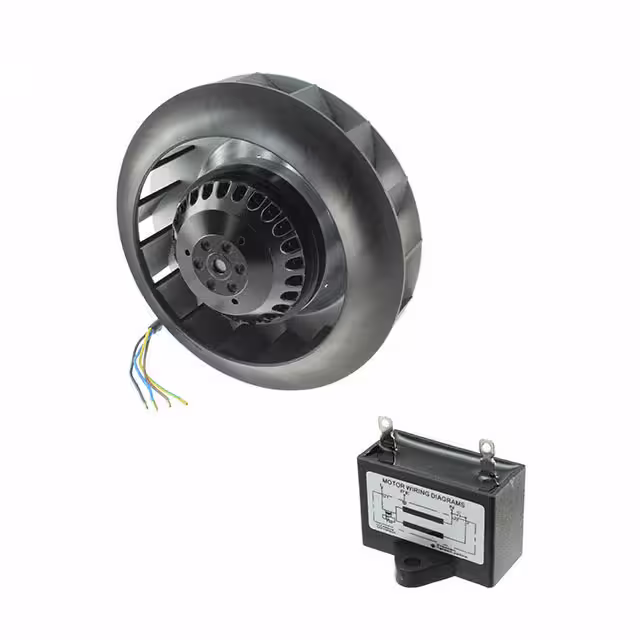

UF180(55)APA23-H2C2AIMPELLER 182X55MM 230VAC |
6 |
|
Datasheet |
|
UF180(55)APA | Bulk | Active | 230VAC | Round - 182mm Dia | 55.00mm | 290.0 CFM (8.12m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 67.0dB(A) | 78.0W | 2800 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cETL, ETL, TUV | 2.7 lbs (1.2 kg) |
|
UF15KC23-BTHNSR172X150X55MM 230V IP55 SALT FOG |
10 |
|
Datasheet |
|
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 4 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
4656EZUAC TUBEAXIAL FAN |
3 |
|
Datasheet |
|
4656 | Bulk | Active | 230VAC | Round - 109mm Dia | 39.00mm | 83.6 CFM (2.34m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 18.00W | - | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CCC, CE, CSA, UL, VDE | - |
|
|
OA172SAP-11-1TBSFFAN AXIAL 172X51MM 115VAC TERM |
5 |
|
Datasheet |
|
OA172SAP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Capacitor, Salt Fog Rated | 58.0dB | 31.00W | 3400 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.9 lbs (861.8 g) |
APA12-H1S2A.jpg)
|

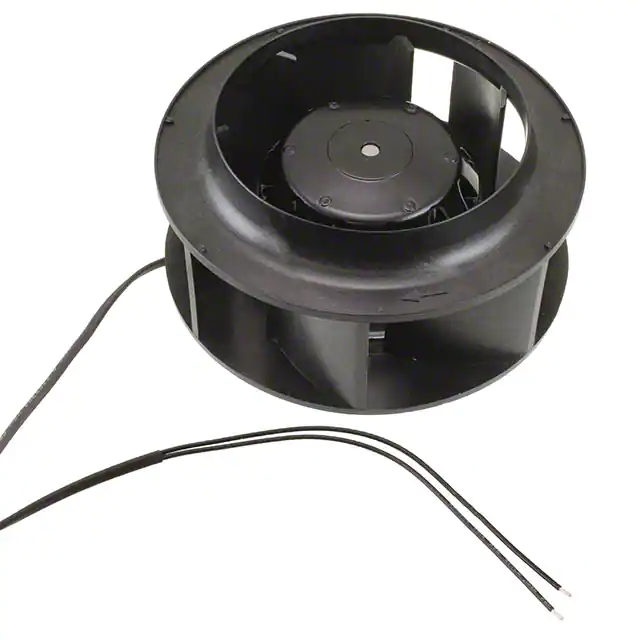

UF133(72)APA12-H1S2AIMPELLER 133X72MM 115VAC |
22 |
|
Datasheet |
|
UF133(72) | Bulk | Active | 115VAC | Round - 133mm Dia | 72.50mm | 188.0 CFM (5.26m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Motorized Impellers | - | 60.0dB(A) | 41.00W | 3200 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2 lbs (907.2 g) |
|
OA180APL-11-1WB1869KAC FAN, IP69K, 180X180X65MM, 115 |
3 |
|
Datasheet |
|
OA180APL-IP69K | Box | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 400.0 CFM (11.20m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB | 80.0W | 3250 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|

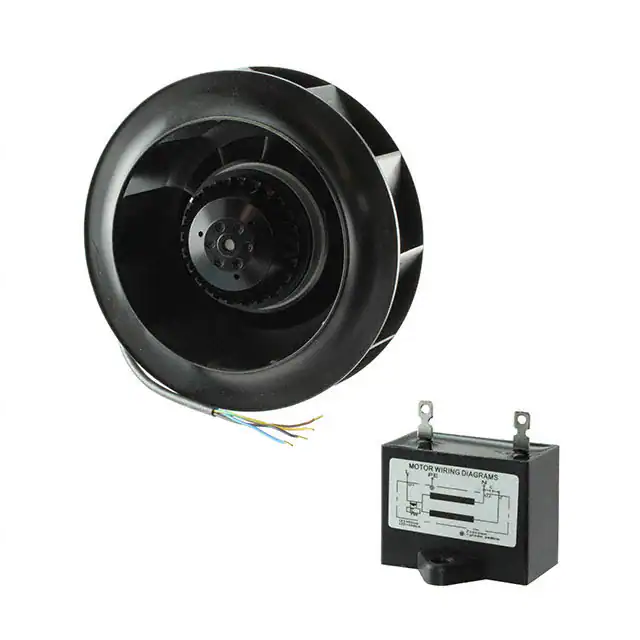

UF220APA12-H2C2AIMPELLER 223X71MM 115VAC |
4 |
|
Datasheet |
|
UF220APA | Bulk | Active | 115VAC | Round - 223mm Dia | 71.00mm | 530.0 CFM (14.84m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB(A) | 117W | 2650 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 3.2 lbs (1.5 kg) |
|
|
UF220APA23-H2C2AIMPELLER 223X71MM 230VAC |
8 |
|
Datasheet |
|
UF220APA | Bulk | Active | 230VAC | Round - 223mm Dia | 71.00mm | 530.0 CFM (14.84m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB(A) | 117W | 2650 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 3.2 lbs (1.5 kg) |
