AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2S130-AA25-76FAN AXIAL |
7 |
|
Datasheet |
 |
W2S130 | Bulk | Active | 115VAC | Round - 172mm Dia | 55.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 38.00W | 3250 RPM | 2 Wire Leads with Splice Terminals | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL, VDE | - |
|
OA254EC-11-1TBXCEC FAN 254X89MM 115VAC TERMINAL |
6 |
|
Datasheet |
|
OA254EC XC | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 70.0dB | 75.0W | 2750 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
OA180AN-11-1WB1856FAN AXIAL 176X89MM 115VAC WIRE |
9 |
|
Datasheet |
|
OA180AN | Box | Active | 115VAC | Square - 176mm L x 176mm H | 89.00mm | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 63.0dB | 80.0W | 3250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.1 lbs (1.9 kg) |
|
OA180AN-11-1TB1856FAN AXIAL 176X89MM 115VAC TERM |
10 |
|
Datasheet |
|
OA180AN | Box | Active | 115VAC | Square - 176mm L x 176mm H | 89.00mm | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 63.0dB | 80.0W | 3250 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4.1 lbs (1.9 kg) |
|
OA180ANL-22-1TB1856FAN AXIAL 180X65MM 230VAC TERM |
9 |
|
Datasheet |
|
OA180ANL | Box | Active | 230VAC | Square - 180mm L x 180mm H | 65.00mm | 330.0 CFM (9.24m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB | 80.0W | 3250 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 3.7 lbs (1.7 kg) |
|
OA180ANL-11-1WB1856FAN AXIAL 180X65MM 115VAC WIRE |
8 |
|
Datasheet |
|
OA180ANL | Box | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 330.0 CFM (9.24m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB | 80.0W | 3250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 3.7 lbs (1.7 kg) |
|
UF20JC12-BTHRFAN AXIAL 205X90MM 115VAC TERM |
3 |
|
Datasheet |
|
UF20JC | Bulk | Active | 115VAC | Square - 205mm L x 205mm H | 90.00mm | 680.0 CFM (19.04m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | - | 71.0dB(A) | 98.0W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cETL, ETL, TUV | 5.2 lbs (2.4 kg) |
|
OA200AN-11-1WB1856FAN AXIAL 200X70MM 115VAC WIRE |
5 |
|
Datasheet |
|
OA200AN | Box | Active | 115VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|
UF225(85)APA12-H1C2AIMPELLER 225X85MM 115VAC |
7 |
|
Datasheet |
|
UF225(85)APA | Bulk | Active | 115VAC | Round - 225mm Dia | 85.00mm | 680.0 CFM (19.04m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 75.0dB(A) | 135W | 3000 RPM | 4 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UL | 5 lbs (2.3 kg) |
|
OA200AP-22-1WB1869KAC FAN, IP69K, 220X220X72MM, 230 |
10 |
|
Datasheet |
|
OA200AP-IP69K | Box | Active | 230VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
|
OA200AP-22-1TB1869KAC FAN, IP69K, 220X220X72MM, 230 |
7 |
|
Datasheet |
|
OA200AP-IP69K | Box | Active | 230VAC | Rectangular/Rounded - 220mm L x 200mm H | 70.00mm | 485.0 CFM (13.58m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 68.0dB | 105W | 3300 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
UF20TC23-BWHRAC FAN AXIAL 205X205X72MM 230VAC |
9 |
|
Datasheet |
|
UF20TC | Bulk | Active | 230VAC | Square - 205.5mm L x 205.5mm H | 72.00mm | 710.0 CFM (19.88m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor | 73.0dB(A) | 126W | 3350 RPM | 2 Wire Leads | - | - | - | - |
|

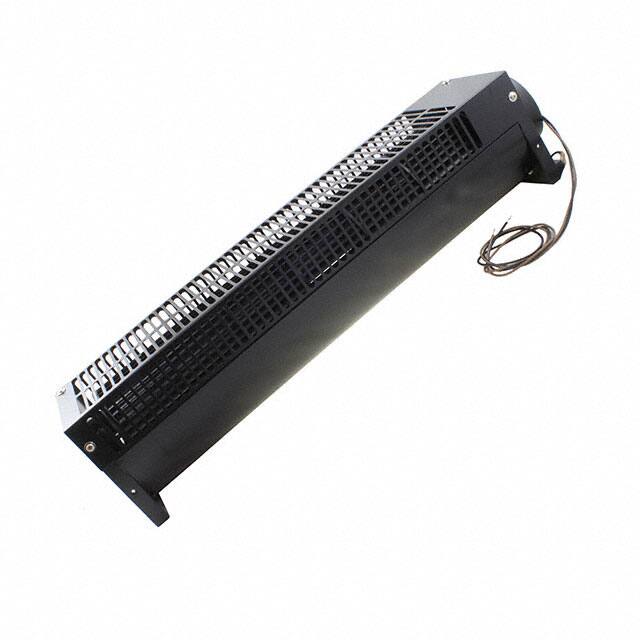

UF9446CBP23H-LFAN BLWR CF 230VAC 570X150X130MM |
5 |
|
Datasheet |
|
UF9446 | Bulk | Active | 230VAC | Rectangular - 570mm L x 130mm H | 125.0mm | 354.0 CFM (9.91m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower, Cross Flow | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 53.0dB(A) | 50.0W | 1550 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, TUV | 7.9 lbs (3.6 kg) |
|
W2S130-AA01-16FAN AXIAL |
3,980 |
|
- |
|
W2S130 | Bulk | Active | - | - | - | - | - | Ball | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
OA180AP-22-1WB1868FAN 230AC 176X176X89MM IP68 WIRE |
2 |
|
Datasheet |
|
OA180AP | Box | Active | 230VAC | Square - 176mm L x 176mm H | 89.00mm | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 63.0dB | 80.0W | 3250 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.1 lbs (1.9 kg) |
|
W2E143-AA09-88FAN AXIAL 172X51MM 230VAC TERM |
20 |
|
Datasheet |
|
W2E143 | Box | Active | 230VAC | Round - 171.5mm Dia | 51.00mm | 260.0 CFM (7.28m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 29.00W | - | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | - | 2.2 lbs (997.9 g) |
|
FDA2-25489NBHT4FFAN AXIAL 254X89MM 115VAC TERM |
3 |
|
Datasheet |
|
HPLC, FDA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 860.0 CFM (24.08m³/min) | 0.846 in H2O (210.7 Pa) | Ball | Tubeaxial | - | 68.0dB(A) | 97.0W | 3200 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 6 lbs (2.7 kg) |
|
A2S130-AA03-31AC AXIAL FAN |
2 |
|
Datasheet |
|
A2S130 | Bulk | Active | 230VAC | Round - 138.3mm Dia | 57.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 39.00W | 3250 RPM | - | IP20 | - | - | - |
|
OA254EC-22-1WBXCEC FAN 254X89MM 230VAC WIRE |
4 |
|
Datasheet |
|
OA254EC XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 70.0dB | 72.0W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4.6 lbs (2.1 kg) |
|
OA180AP-22-1TB1869KAC FAN, IP69K, 176X176X89MM, 230 |
4 |
|
Datasheet |
|
OA180AP-IP69K | Box | Active | 230VAC | Square - 176mm L x 176mm H | 89.00mm | 380.0 CFM (10.64m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 63.0dB | 80.0W | 3250 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 4.1 lbs (1.9 kg) |
