DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

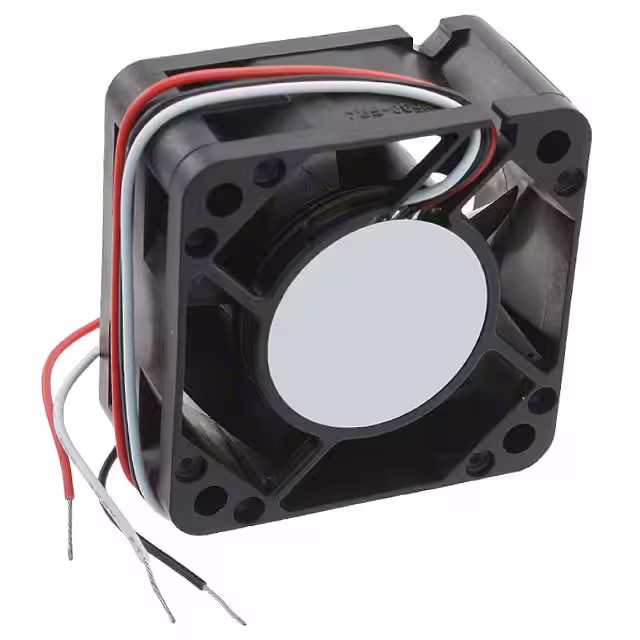

1608KL-04W-B29-L00FAN AXIAL 40X20MM 12VDC WIRE |
4,134 |
|
Datasheet |
 |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.121 in H2O (30.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB | 720 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
1608KL-04W-B49-L00FAN AXIAL 40X20MM 12VDC WIRE |
4,760 |
|
Datasheet |
|
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.4 CFM (0.235m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 1.08 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
PMD1207PTB1-A.(2).GNFAN AXIAL 70X25MM 12VDC WIRE |
3,403 |
|
Datasheet |
|
PMD | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.4 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.199 lb (90.26 g) |
|

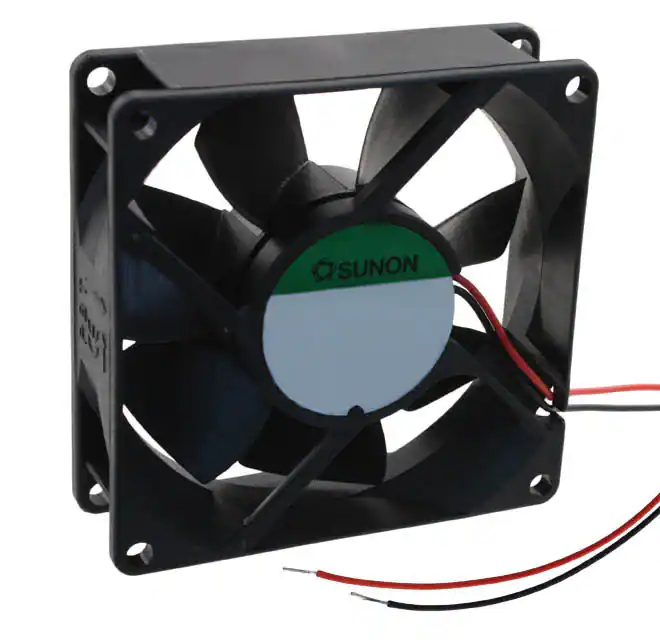

PMD1208PTB1-A.(2).GNFAN AXIAL 80X25MM 12VDC WIRE |
3,733 |
|
- |
|
PMD | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 4.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
|
PMD2408PTB1-A.(2).GNFAN AXIAL 80X25MM 24VDC WIRE |
3,456 |
|
- |
|
PMD | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 5 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
PMD1209PTB1-A.(2).GNFAN AXIAL 92X25MM 12VDC WIRE |
4,081 |
|
Datasheet |
|
PMD | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 5.5 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|
|
PMD2409PTB1-A.(2).GNFAN AXIAL 92X25MM 24VDC WIRE |
2,039 |
|
Datasheet |
|
PMD | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 5.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|
AFB0912LDFAN AXIAL 92X20MM 12VDC WIRE |
4,946 |
|
Datasheet |
|
AFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 41.0 CFM (1.15m³/min) | 0.084 in H2O (20.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
1004KL-01W-B39-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
4,618 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB | 325 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-01W-B39-B50FAN AXIAL 25X10MM BALL 5VDC WIRE |
3,251 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB | 325 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-01W-B49-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
3,402 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB | 425 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-01W-B49-B50FAN AXIAL 25X10MM BALL 5VDC WIRE |
2,258 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 425 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-01W-B59-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
2,083 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB | 625 mW | 11000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-01W-B59-B50FAN AXIAL 25X10MM BALL 5VDC WIRE |
4,636 |
|
Datasheet |
|
1004KL | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 625 mW | 11000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B39-B00FAN AXIAL 25X10MM 12VDC WIRE |
2,938 |
|
Datasheet |
|
1004KL | Box | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB | 425 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B39-B50FAN AXIAL 25X10MM 12VDC WIRE |
4,779 |
|
Datasheet |
|
1004KL | Box | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB | 425 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B49-B00FAN AXIAL 25X10MM 12VDC WIRE |
4,083 |
|
Datasheet |
|
1004KL | Box | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB | 540 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B49-B50FAN AXIAL 25X10MM 12VDC WIRE |
4,076 |
|
Datasheet |
|
1004KL | Box | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 540 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B59-B50FAN AXIAL 25X10MM 12VDC WIRE |
3,134 |
|
Datasheet |
|
1004KL | Box | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 720 mW | 11000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1204KL-01W-B39-B00FAN AXIAL 30X10MM BALL 5VDC WIRE |
4,439 |
|
Datasheet |
|
1204KL | Box | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB | 500 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
