DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BG1203-B055-00S-00FAN BLOWER 120X32MM 24VDC WIRE |
4,650 |
|
Datasheet |
 |
12032GA | Box | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 55.0dB | 11.5 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|

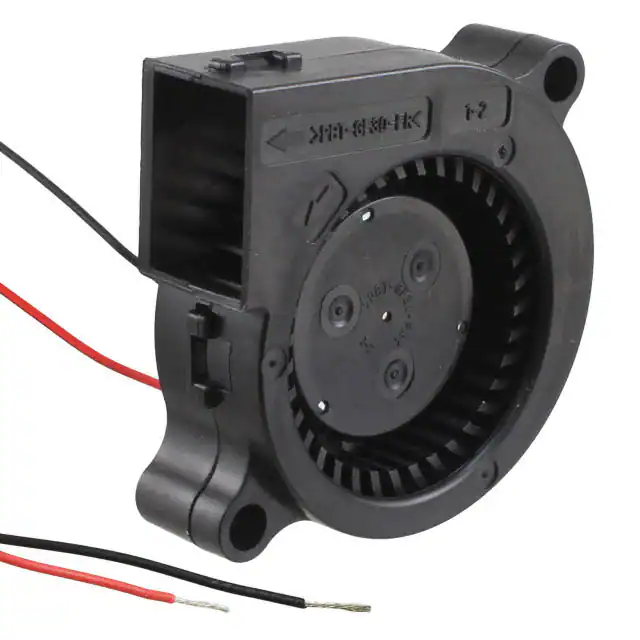

BM4515-04W-B30-L00FAN BLOWER 44X15MM 12VDC WIRE |
4,248 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 2.6 CFM (0.073m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Locked Rotor Sensor | 35.0dB | 1.08 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B39-L00FAN BLOWER 44X15MM 12VDC WIRE |
2,290 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 2.6 CFM (0.073m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Locked Rotor Sensor | 35.0dB | 1.08 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B39-L50FAN BLOWER 44X15MM 12VDC WIRE |
2,702 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 2.6 CFM (0.073m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 35.0dB | 1.08 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B40-L00FAN BLOWER 44X15MM 12VDC WIRE |
4,641 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.0 CFM (0.084m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Blower | Locked Rotor Sensor | 39.0dB | 1.68 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B49-L00FAN BLOWER 44X15MM 12VDC WIRE |
4,101 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.0 CFM (0.084m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Blower | Locked Rotor Sensor | 39.0dB | 1.68 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B49-L50FAN BLOWER 44X15MM 12VDC WIRE |
4,582 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.0 CFM (0.084m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Blower | Speed Sensor (Tach) | 39.0dB | 1.68 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B59-L00FAN BLOWER 44X15MM 12VDC WIRE |
2,609 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | Locked Rotor Sensor | 43.0dB | 2.28 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM4515-04W-B59-L50FAN BLOWER 44X15MM 12VDC WIRE |
3,298 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 43.0dB | 2.28 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
BM5115-04W-B39-L00FAN BLOWER 51X15MM 12VDC WIRE |
3,663 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.1 CFM (0.059m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Blower | Locked Rotor Sensor | 26.0dB | 720 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM5115-04W-B39-L50FAN BLOWER 51X15MM 12VDC WIRE |
3,419 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.1 CFM (0.059m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 26.0dB | 720 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM5115-04W-B49-L00FAN BLOWER 51X15MM 12VDC WIRE |
4,108 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Blower | Locked Rotor Sensor | 35.0dB | 1.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM5115-04W-B49-L50FAN BLOWER 51X15MM 12VDC WIRE |
2,285 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 35.0dB | 1.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM5115-04W-B59-L50FAN BLOWER 51X15MM 12VDC WIRE |
3,097 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 42.0dB | 2.16 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
BM5125-04W-B39-L00FAN BLOWER 51X25MM 12VDC WIRE |
3,630 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 3.5 CFM (0.098m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Blower | Locked Rotor Sensor | 27.0dB | 720 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
|
BM5125-04W-B39-L50FAN BLOWER 51X25MM 12VDC WIRE |
3,860 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 3.5 CFM (0.098m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Blower | Speed Sensor (Tach) | 27.0dB | 720 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
|
BM5125-04W-B49-L00FAN BLOWER 51X25MM 12VDC WIRE |
3,410 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 5.3 CFM (0.148m³/min) | 0.341 in H2O (85.0 Pa) | Ball | Blower | Locked Rotor Sensor | 34.0dB | 1.56 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
|
BM5125-04W-B49-L50FAN BLOWER 51X25MM 12VDC WIRE |
3,469 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 5.3 CFM (0.148m³/min) | 0.341 in H2O (85.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 34.0dB | 1.56 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|

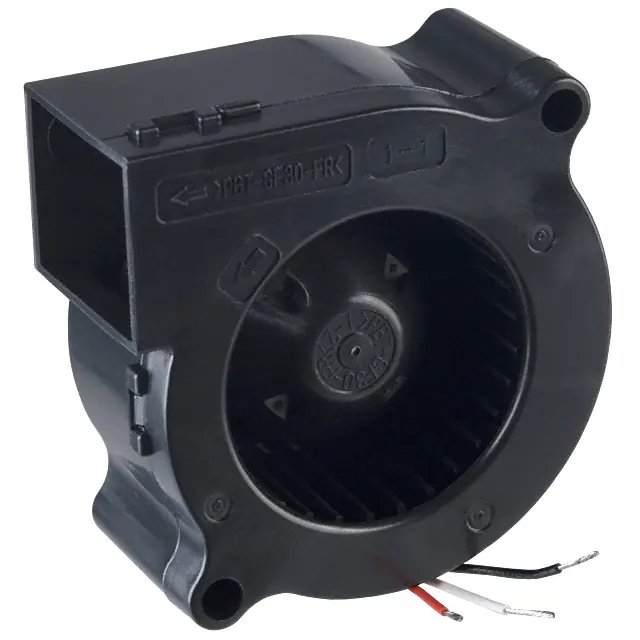

BM5125-04W-B59-L50FAN BLOWER 51X25MM 12VDC WIRE |
2,117 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 6.7 CFM (0.188m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Blower | Speed Sensor (Tach) | 41.0dB | 2.88 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
|
BM6025-04W-B59-L00FAN BLOWER 60X15MM 12VDC WIRE |
4,174 |
|
Datasheet |
|
BM | Box | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Blower | Locked Rotor Sensor | 31.0dB | 3.84 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.077 lb (34.93 g) |
