DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1611RL-04W-B60-B00FAN AXIAL 40X28MM 12VDC WIRE |
4,539 |
|
Datasheet |
 |
1611RL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.7 CFM (0.384m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | - | 49.5dB | 3.24 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.106 lb (48.08 g) |
|
|
1611RL-04W-B70-B00FAN AXIAL 40X28MM 12VDC WIRE |
2,072 |
|
Datasheet |
|
1611RL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 1.138 in H2O (283.5 Pa) | Ball | Tubeaxial | - | 54.0dB | 4.32 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.106 lb (48.08 g) |
|
AFB0912H-TA50FAN AXIAL 92X25.4MM 12VDC WIRE |
3,738 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 59.9 CFM (1.68m³/min) | 0.191 in H2O (47.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.52 W | 2800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
PFB0612GHE-T500FAN AXIAL 60X38MM 12VDC WIRE |
4,477 |
|
Datasheet |
|
PFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 10.2 W | 10000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
AFB0712HHD-R00FAN AXIAL 70X20MM 12VDC WIRE |
3,173 |
|
Datasheet |
|
AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 40.4 CFM (1.13m³/min) | 0.222 in H2O (55.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.5dB(A) | 3 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|
AFB0612HHBFAN AXIAL 60X15MM 12VDC WIRE |
3,433 |
|
Datasheet |
|
AFB | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.3 CFM (0.484m³/min) | 0.195 in H2O (48.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0412VHB-TP25FAN AXIAL 40X15MM 12VDC WIRE |
2,648 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control | 36.5dB(A) | 2.16 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
DV6224TDA-824FAN AXIAL 171.5X50.8MM 24VDC |
3,936 |
|
Datasheet |
|
DV6200TD | Box | Obsolete | 24VDC | Round - 171.5mm Dia | 50.80mm | 412.0 CFM (11.54m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 91 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 1.8 lbs (816.5 g) |
|

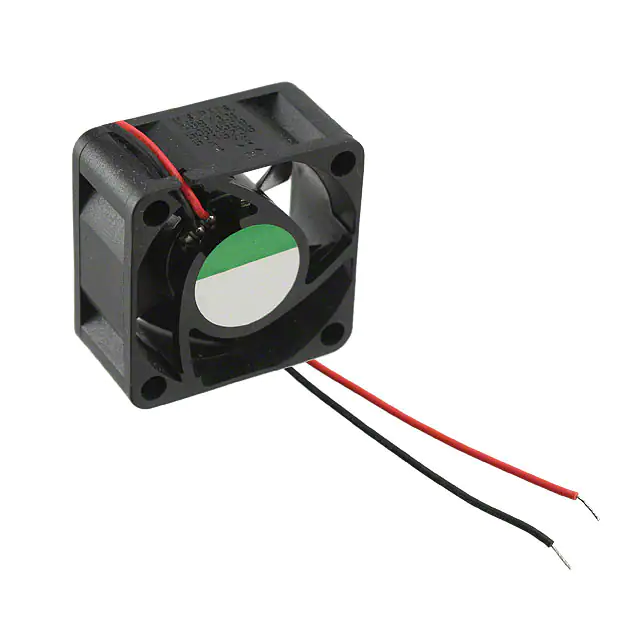

KD1204PKBX.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
3,740 |
|
- |
|
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 28.5dB(A) | 125 mW | 5200 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
|
5910PL-07W-B70-L00FAN AXIAL 172X25.4MM 48VDC WIRE |
4,890 |
|
Datasheet |
|
5910PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 290.0 CFM (8.12m³/min) | 0.935 in H2O (233.0 Pa) | Ball | Tubeaxial | - | 65.0dB(A) | 35.5 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
AUB0812L-9X41FAN AXIAL 80X25.4MM 12VDC |
2,234 |
|
Datasheet |
|
AUB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 1.08 W | 2400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|
EHB1548SHG-C126FAN AXIAL 172X50.8MM 48VDC WIRE |
3,494 |
|
Datasheet |
|
EHB | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 347.1 CFM (9.72m³/min) | 1.492 in H2O (371.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 42.24 W | 4900 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
AFB0912MBFAN AXIAL 92X15MM 12VDC WIRE |
2,770 |
|
Datasheet |
|
AFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 15.00mm | 36.5 CFM (1.02m³/min) | 0.079 in H2O (19.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.56 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|
AFB0612HHB-F00FAN AXIAL 60X15MM 12VDC WIRE |
4,366 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.3 CFM (0.484m³/min) | 0.195 in H2O (48.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0624VH-AF00FAN AXIAL 60X25.4MM 24VDC WIRE |
2,524 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.5dB(A) | 3.36 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0948L-BFAN AXIAL 92X25.4MM 48VDC WIRE |
3,518 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 2.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
EFB0405HD-F00FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,020 |
|
Datasheet |
|
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.5dB(A) | 1.25 W | 7600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
EFB0405LD-R00FAN AXIAL 40X20MM BALL 5VDC WIRE |
3,542 |
|
Datasheet |
|
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 500 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
FFB1224HH-R00FAN AXIAL 120X25.4MM 24VDC WIRE |
3,653 |
|
Datasheet |
|
FFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.7dB(A) | 6.72 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
GFB0424VHFFAN AXIAL DUAL 40X32MM 24VDC |
2,641 |
|
Datasheet |
|
GFB | Bulk | Obsolete | 24VDC | Rectangular - 40mm L x 50mm H | 32.00mm | 19.7 CFM (0.552m³/min) | 0.554 in H2O (138.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 51.5dB(A) | 5.28 W | 9500 Front, 9100 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.101 lb (45.81 g) |
