DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0824L4021FAN AXIAL 80X25MM 24VDC WIRE |
4,396 |
|
Datasheet |
 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R1212T1H12FAN AXIAL 119X38MM 12VDC WIRE |
4,290 |
|
Datasheet |
|
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermistor, External | 39.0dB(A) | 5.75 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
109R1212T1H121FAN AXIAL 119X38MM 12VDC WIRE |
3,260 |
|
Datasheet |
|
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermistor, External | 39.0dB(A) | 5.75 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
109W1212H102-UFAN AXIAL 119X38MM 12VDC WIRE |
4,429 |
|
Datasheet |
|
San Ace 120W | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.926 lb (420.03 g) |
|
|
9AH0612P4H05FAN AXIAL 60X25MM 12VDC WIRE |
4,368 |
|
Datasheet |
|
San Cooler 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | - | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
9AH0812P4H04FAN AXIAL 80X25MM 12VDC WIRE |
3,554 |
|
Datasheet |
|
San Cooler 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | - | 2900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
9CR0612P0H03FAN AXIAL DUAL 60X76MM 12VDC |
2,665 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 69.9 CFM (1.96m³/min) | 1.810 in H2O (450.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 64.0dB(A) | - | 10300 Front, 6500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.507 lb (229.97 g) |
|
|
9CR0612S001FAN AXIAL DUAL 60X76MM 12VDC |
3,661 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 80.0 CFM (2.24m³/min) | 2.210 in H2O (550.5 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 66.0dB(A) | 38.4 W | 11500 Front, 7000 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.507 lb (229.97 g) |
|
|
9CR0612S002FAN AXIAL DUAL 60X76MM 12VDC |
2,311 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 80.0 CFM (2.24m³/min) | 2.210 in H2O (550.5 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 66.0dB(A) | 38.4 W | 11500 Front, 7000 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|
9CR0812P8H03FAN AXIAL DUAL 80X80MM 12VDC |
4,570 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 140.0 CFM (3.92m³/min) | 1.610 in H2O (401.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 43.2 W | 7000 Front, 4600 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
9CRA0412G502FAN AXIAL DUAL 40X56MM 12VDC |
4,921 |
|
Datasheet |
|
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.2 CFM (0.762m³/min) | 1.750 in H2O (435.9 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating | 59.0dB(A) | 12 W | 14000 Front, 10400 Rear | 2 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0612P1G011FAN AXIAL 60X38MM 12VDC WIRE |
2,895 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 18.5 W | 11800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

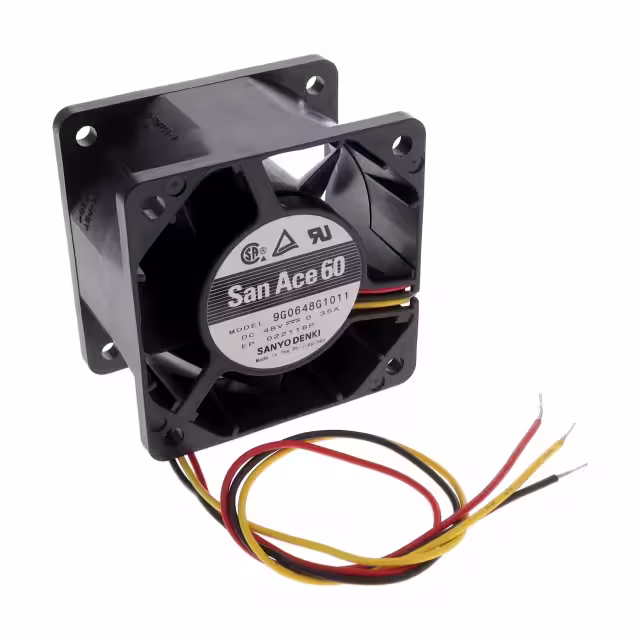

9G0648G1011FAN AXIAL 60X38MM 48VDC WIRE |
3,710 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 16.8 W | 11800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

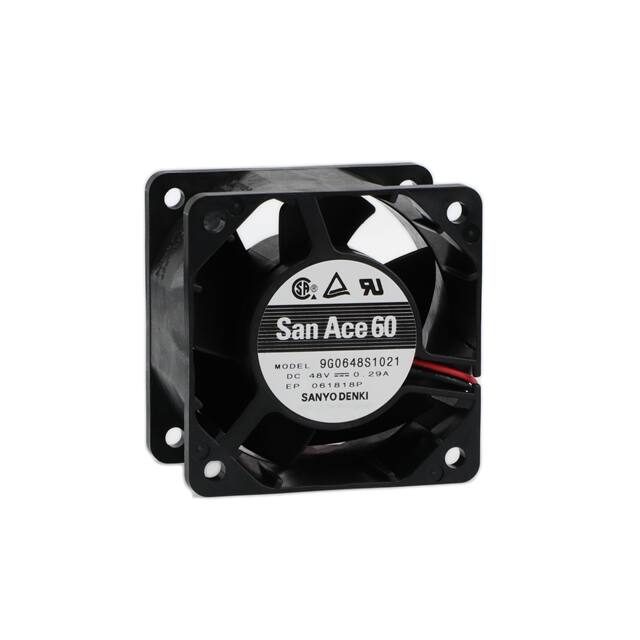

9G0648S1021FAN AXIAL 60X38MM 48VDC WIRE |
4,865 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 13.9 W | 10800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9G0812K1021FAN AXIAL 80X38MM 12VDC WIRE |
2,196 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 21.6 W | 7800 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0812P1K081FAN AXIAL 80X38MM 12VDC WIRE |
3,384 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.285 in H2O (320.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 7800 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

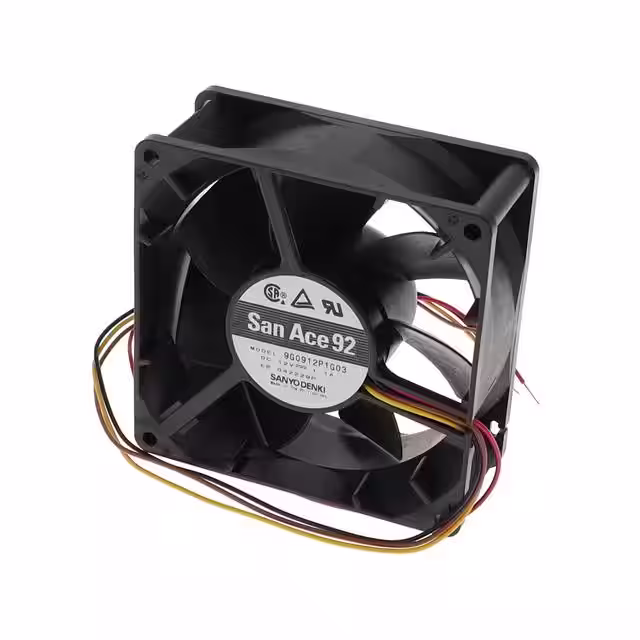

9G0912P1G03FAN AXIAL 92X38MM 12VDC WIRE |
2,332 |
|
Datasheet |
|
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UR | 0.397 lb (180.08 g) |
|
|
9G0912P1G031FAN AXIAL 92X38MM 12VDC WIRE |
2,505 |
|
Datasheet |
|
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UR | 0.397 lb (180.08 g) |
|
|
9G0912P1H05FAN AXIAL 92X38MM 12VDC WIRE |
3,531 |
|
Datasheet |
|
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 6.96 W | 4000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
|
9G1212P4H04FAN AXIAL 119X25MM 12VDC WIRE |
2,142 |
|
Datasheet |
|
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.72 W | 2850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.529 lb (240.00 g) |
