DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0312E3011FAN AXIAL 38X28MM 12VDC WIRE |
4,112 |
|
Datasheet |
 |
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 2.52 W | 10500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0312E302FAN AXIAL 38X28MM 12VDC WIRE |
3,140 |
|
Datasheet |
|
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 2.52 W | 10500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312G302FAN AXIAL 38X28MM 12VDC WIRE |
4,359 |
|
Datasheet |
|
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.0 CFM (0.476m³/min) | 0.924 in H2O (230.0 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 4.8 W | 13500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9GV0312J3D01FAN AXIAL 38X28MM 12VDC WIRE |
4,378 |
|
Datasheet |
|
San Ace 38 | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 1.265 in H2O (315.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.0dB(A) | 7.2 W | 15900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0412K3011FAN AXIAL 40X28MM 12VDC WIRE |
3,812 |
|
Datasheet |
|
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.8 CFM (0.750m³/min) | 1.668 in H2O (415.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 10.08 W | 16500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|

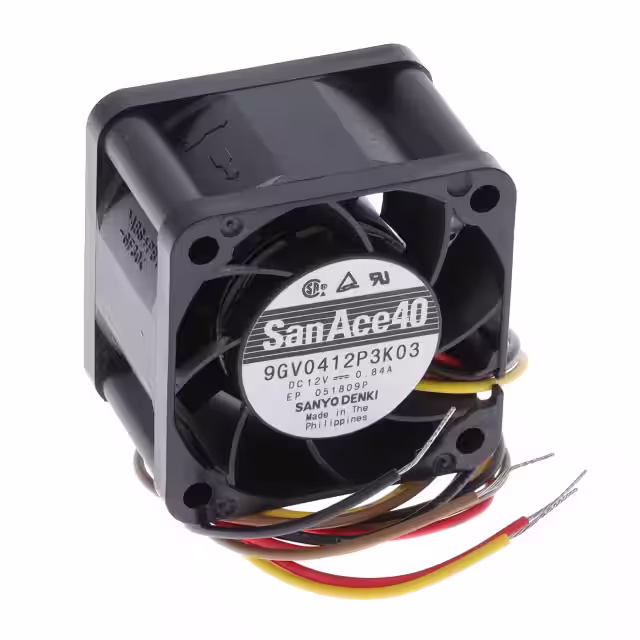

9GV0412P3K03FAN AXIAL 40X28MM 12VDC WIRE |
3,928 |
|
Datasheet |
|
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.8 CFM (0.750m³/min) | 1.668 in H2O (415.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 10.08 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
9GV0848P4K031FAN AXIAL 80X25.4MM 48VDC WIRE |
3,205 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.56 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|
|
9LB1224H101FAN AXIAL 119X38MM 24VDC WIRE |
2,240 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224H102FAN AXIAL 119X38MM 24VDC WIRE |
2,585 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224H1D01FAN AXIAL 119X38MM 24VDC WIRE |
4,204 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224M101FAN AXIAL 119X38MM 24VDC WIRE |
2,266 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.64 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224M102FAN AXIAL 119X38MM 24VDC WIRE |
2,718 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.64 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224M1D01FAN AXIAL 119X38MM 24VDC WIRE |
4,789 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 77.7 CFM (2.18m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.64 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224S101FAN AXIAL 119X38MM 24VDC WIRE |
4,793 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.484 in H2O (120.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 11.04 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1224S102FAN AXIAL 119X38MM 24VDC WIRE |
4,599 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.484 in H2O (120.6 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 11.04 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1248H101FAN AXIAL 119X38MM 48VDC WIRE |
3,615 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
|
9LB1248M1D01FAN AXIAL 119X38MM 48VDC WIRE |
2,279 |
|
Datasheet |
|
San Ace 120L | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.816 lb (370.13 g) |
|
9LB1412H501FAN AXIAL 140X51MM 12VDC WIRE |
4,547 |
|
Datasheet |
|
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 208.0 CFM (5.82m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 15 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9LB1412M501FAN AXIAL 140X51MM 12VDC WIRE |
4,900 |
|
Datasheet |
|
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 138.0 CFM (3.86m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.5 W | 2050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
|
|
9LB1412M5D01FAN AXIAL 140X51MM 12VDC WIRE |
2,860 |
|
Datasheet |
|
San Ace 140L | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 138.0 CFM (3.86m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.5 W | 2050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (610.0 g) |
