DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A225B-018-327-20FAN AXIAL 120X25.4MM 5VDC WIRE |
158 |
|
Datasheet |
 |
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.8dB(A) | 2.25 W | 1800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238V-126-440-20FAN AXIAL 120X38MM 12VDC WIRE |
210 |
|
Datasheet |
|
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 5.81 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
F8025X12B2-RGR-TTLFAN AXIAL 80X25MM 12VDC WIRE |
181 |
|
Datasheet |
|
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
OD4015-12HB02AFAN AXIAL 40X15MM 12VDC WIRE |
461 |
|
Datasheet |
|
OD4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB | 1.8 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.053 lb (24.04 g) |
|
OD6020-12HB02AFAN AXIAL 60X20MM 12VDC WIRE |
329 |
|
Datasheet |
|
OD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
CFM-8038B-130-387FAN AXIAL 80X37.6MM 12VDC WIRE |
197 |
|
Datasheet |
|
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.7dB(A) | 2.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020SA-24T-AL-00FAN AXIAL 60X20MM 24VDC WIRE |
112 |
|
Datasheet |
|
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD5010-12LBFAN AXIAL 50X10.5MM 12VDC WIRE |
451 |
|
Datasheet |
|
OD5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus | - |
|

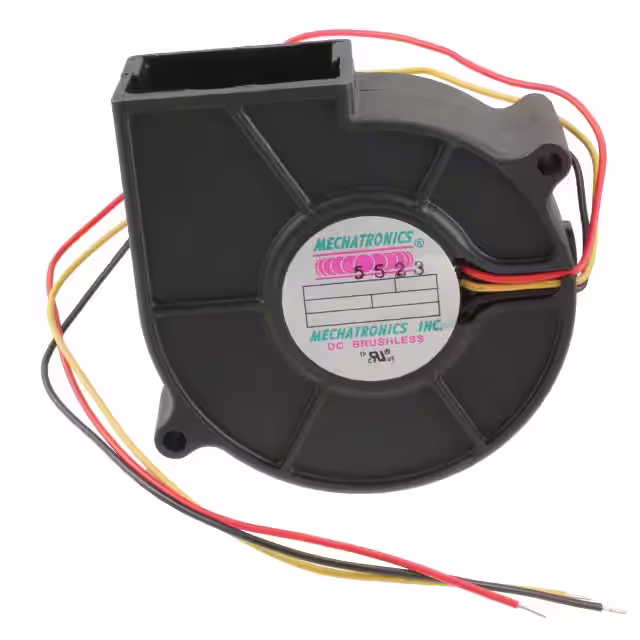

B7530E12B-BSRFAN BLOWER 76X30MM 12VDC WIRE |
283 |
|
Datasheet |
|
B7530 | Bulk | Active | 12VDC | Square/Rounded - 76mm L x 76mm H | 30.00mm | 13.5 CFM (0.378m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 45.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, UL | 0.192 lb (87.08 g) |
|
CFM-3828BF-1120-468-20FAN AXIAL 38X28MM 12VDC WIRE |
166 |
|
Datasheet |
|
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.8dB(A) | 3.24 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020SA-12N-AL-00FAN AXIAL 60X20MM 12VDC WIRE |
170 |
|
Datasheet |
|
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.5dB | 1.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
CFM-3828BF-1210-590-20FAN AXIAL 38X28MM 12VDC WIRE |
172 |
|
Datasheet |
|
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 21000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD4010-24LB01AFAN AXIAL 40X10.5MM 24VDC WIRE |
1,023 |
|
Datasheet |
|
OD4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.7 CFM (0.132m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.1dB | 730 mW | 4000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) |
|
G4020H24B-RSR-CCFAN AXIAL 40X20MM 24VDC WIRE |
142 |
|
Datasheet |
|
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
05125GS-12M-AAD-0FAN BLOWER 12VDC WIRE |
283 |
|
Datasheet |
|
0512GS | Box | Active | 12VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB02512MA-CFAN AXIAL 25X10MM 12VDC WIRE |
699 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.085 in H2O (21.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 480 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
MF40200V1-1000U-F99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
124 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 750 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
|
109P0412D6D01FAN AXIAL 40X20MM 12VDC WIRE |
111 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 2.16 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|

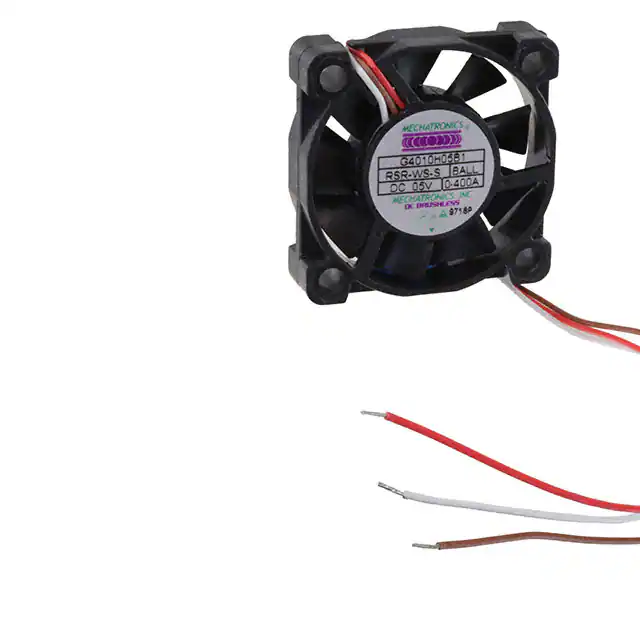

G4010H05B1-RSR-WS-SFAN AXIAL 40X10.3MM 5VDC WIRE |
582 |
|
Datasheet |
|
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
9S0924F4011FAN AXIAL 92X25MM 24VDC WIRE |
208 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 2.16 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
