DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08032CBHW12FAN AXIAL 80.5X32MM 12VDC WIRE |
52 |
|
Datasheet |
 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 50.0 CFM (1.40m³/min) | 0.292 in H2O (72.7 Pa) | Ball | Tubeaxial | - | 42.4dB(A) | 2.28 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.238 lb (107.95 g) |
|
9A0924G401FAN AXIAL 92X25MM 24VDC WIRE |
41 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.56 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
AFB0912VH-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
31 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.218 lb (98.88 g) |
|

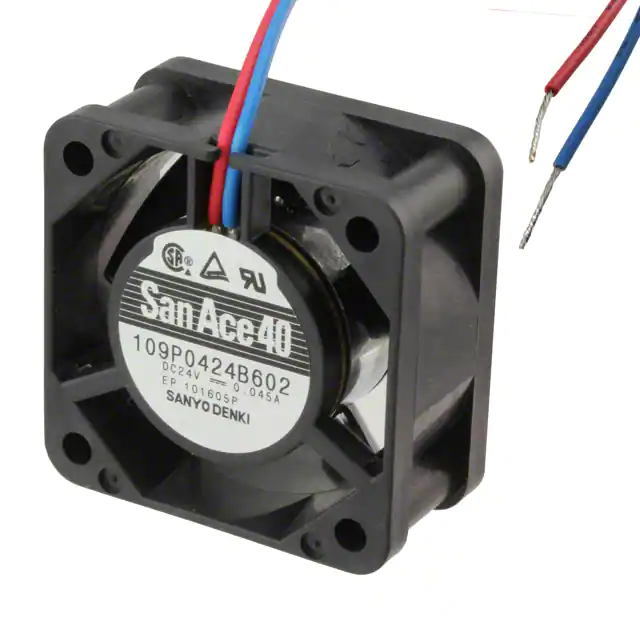

109P0424B602FAN AXIAL 40X20MM 24VDC WIRE |
83 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 1.44 W | 5200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
F8025E24B3-FHRFAN AXIAL 80X25MM 24VDC WIRE |
75 |
|
Datasheet |
|
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
9S0924L4011FAN AXIAL 92X25MM 24VDC WIRE |
54 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 960 mW | 1750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9S0912M4011FAN AXIAL 92X25MM 12VDC WIRE |
52 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.32 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9S0912L401FAN AXIAL 92X25MM 12VDC WIRE |
41 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 840 mW | 1750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
OD5015-12HB02AFAN AXIAL 50X15MM 12VDC WIRE |
21 |
|
Datasheet |
|
OD5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

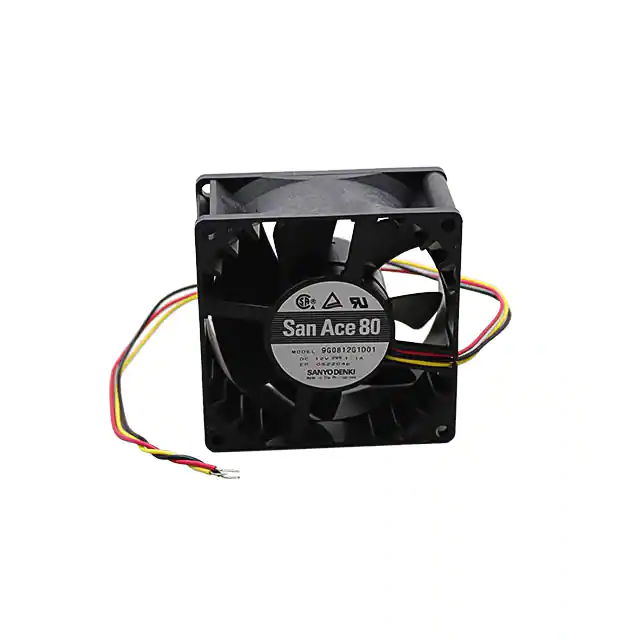

9G0812G1D01FAN AXIAL 80X38MM 12VDC WIRE |
25 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 13.2 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

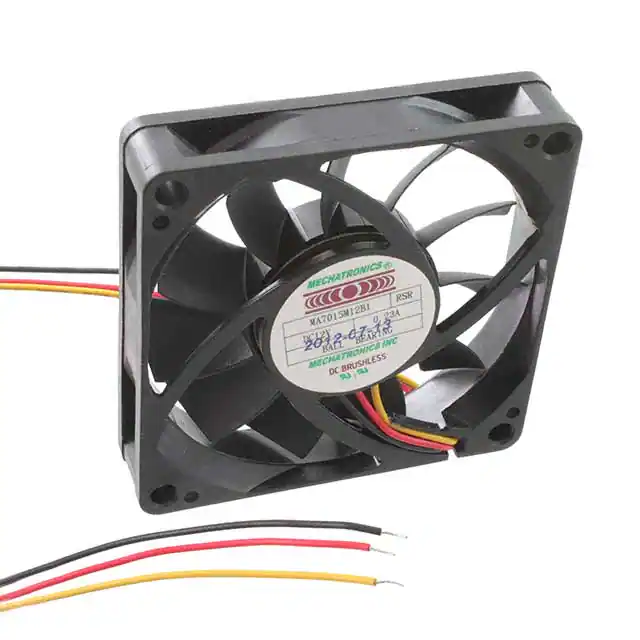

MA7015M12B1-RSRFAN 70X15MM BALL 12VDC WIRE |
7 |
|
Datasheet |
|
MA7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | - | - | Ball | - | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cUL, UL | - |
|
9A0812S4021FAN AXIAL 80X25MM 12VDC WIRE |
89 |
|
Datasheet |
|
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9A0824H4011FAN AXIAL 80X25MM 24VDC WIRE |
76 |
|
Datasheet |
|
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109P0812C6D01FAN AXIAL 80X20MM 12VDC WIRE |
59 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 37.8 CFM (1.06m³/min) | 0.185 in H2O (46.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.48 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0812H601FAN AXIAL 80X20MM 12VDC WIRE |
32 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.52 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

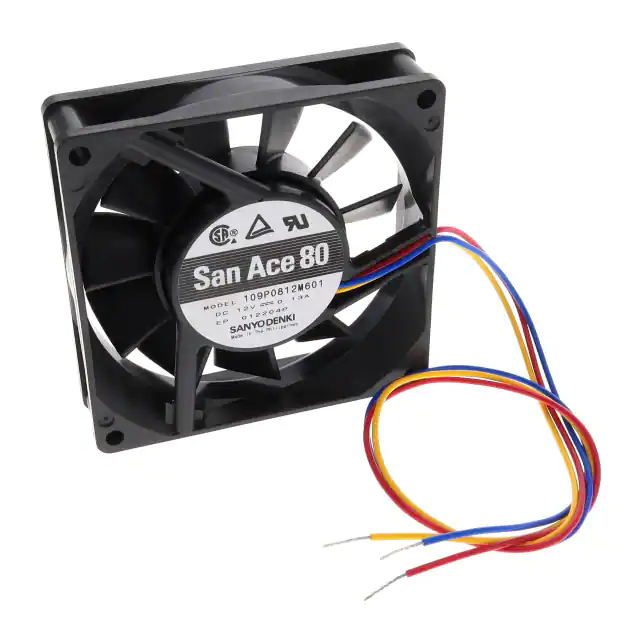

109P0812M601FAN AXIAL 80X20MM 12VDC WIRE |
27 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 23.7 CFM (0.664m³/min) | 0.075 in H2O (18.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.56 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

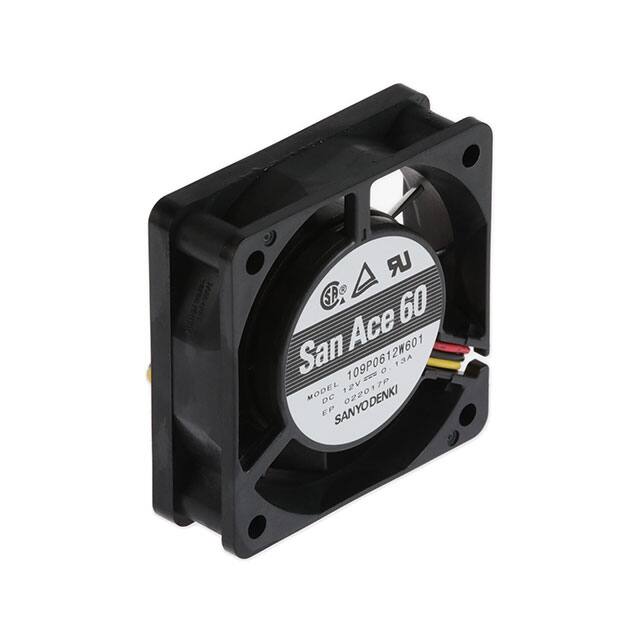

109P0612W601FAN AXIAL 60X20MM 12VDC WIRE |
44 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.56 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
OD3510-05MB01AFAN AXIAL 35X10MM BALL 5VDC WIRE |
21 |
|
Datasheet |
|
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
9S0812P4F01FAN AXIAL 80X25MM 12VDC WIRE |
75 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 2800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|
109P0405H601FAN AXIAL 40X20MM BALL 5VDC WIRE |
77 |
|
Datasheet |
|
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 1.6 W | 8000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
