DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB8025X24B3-FSRFAN 80X25MM BALL 24VDC WIRE |
14 |
|
Datasheet |
 |
MB8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | - | Thermistor | - | - | - | 2 Wire Leads | - | - | cUL, UL | - |
|
CFM-A225-23-20FAN AXIAL 120X25.4MM 24VDC WIRE |
77 |
|
Datasheet |
|
CFM-120 | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 9.36 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.417 lb (189.15 g) |
|
9RA0824P4G0011FAN AXIAL 80X25MM 24VDC WIRE |
39 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G1212G4011FAN AXIAL 119X25MM 12VDC WIRE |
99 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 10.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
G1225L24B2-FSR-NHFAN AXIAL 120X25MM 24VDC WIRE |
21 |
|
Datasheet |
|
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 1800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
109BC12HC7-1FAN BLOWER 51X15MM 12VDC WIRE |
63 |
|
Datasheet |
|
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 15.00mm | 4.0 CFM (0.112m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 1.2 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.073 lb (33.11 g) |
|
MD9238E24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
50 |
|
Datasheet |
|
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 55.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, TUV, UL | 0.397 lb (180.08 g) |
|
9RA0612G40011FAN AXIAL 60X25MM 12VDC WIRE |
64 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.8 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
G1238E12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
56 |
|
Datasheet |
|
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
9RA0624J4001FAN AXIAL 60X25MM 24VDC WIRE |
42 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.32 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0624S4001FAN AXIAL 60X25MM 24VDC WIRE |
87 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.44 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0612S4001FAN AXIAL 60X25MM 12VDC WIRE |
37 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0612G4001FAN AXIAL 60X25MM 12VDC WIRE |
16 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.8 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

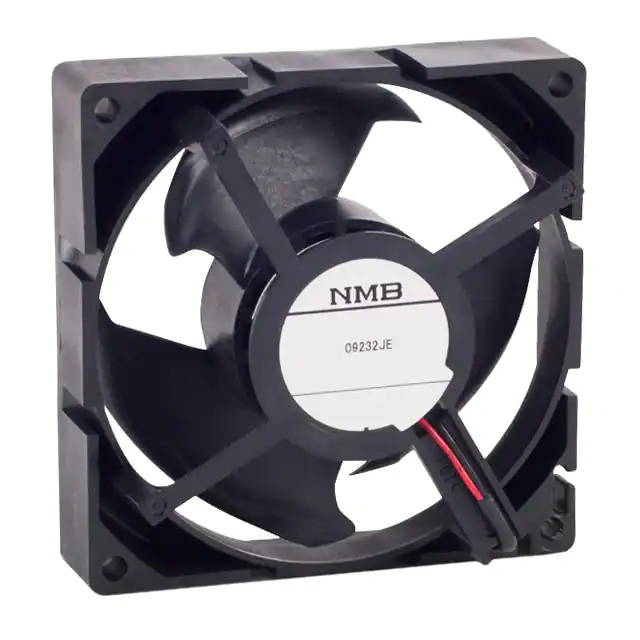

09232JE-12M-BA-F0FAN AXIAL 92X32MM 12VDC WIRE |
22 |
|
Datasheet |
|
09232JE | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 43.8 CFM (1.23m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.5dB | 1.56 W | 3350 RPM | 2 Wire Leads | - | -40 ~ 104°F (-40 ~ 40°C) | - | - |
|
OD8032-12HHB02AFAN AXIAL 80X32MM 12VDC WIRE |
38 |
|
Datasheet |
|
OD8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 55.4 CFM (1.55m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 4.56 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.238 lb (107.95 g) |
|

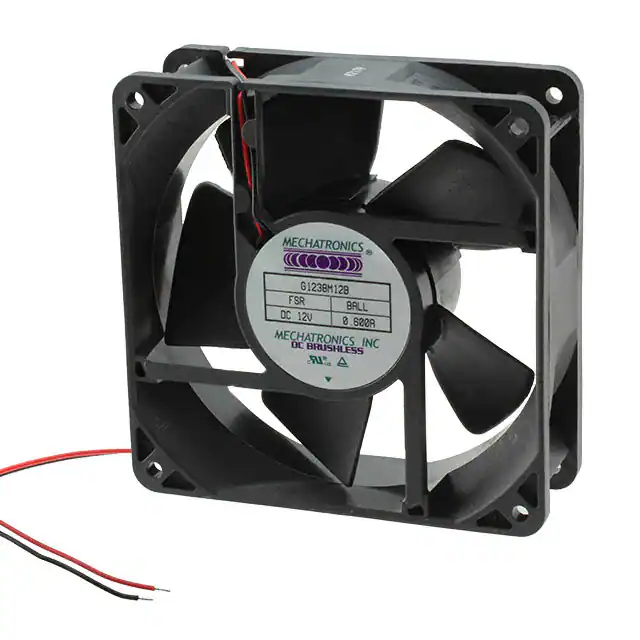

G1238M12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
92 |
|
Datasheet |
|
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G1238H48B-FSRFAN AXIAL 119X38MM 48VDC WIRE |
18 |
|
Datasheet |
|
G1238 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 141.2 CFM (3.95m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
G1225H12B4-FSR-EMFAN AXIAL 120X25MM 12VDC WIRE |
49 |
|
Datasheet |
|
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 38.0dB(A) | - | 2400 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
OD6025-60LBFAN AXIAL 60X25MM 60VDC WIRE |
56 |
|
Datasheet |
|
OD6025 | Box | Active | 60VDC | Square - 60mm L x 60mm H | 25.00mm | 26.0 CFM (0.728m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | - | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | 0.141 lb (63.96 g) |
|
9G0612S101FAN AXIAL 60X38MM 12VDC WIRE |
49 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 1.486 in H2O (370.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 16.3 W | 10800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
