DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GT0812S4002FAN AXIAL 80X25.2MM 12VDC WIRE |
25 |
|
Datasheet |
 |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.52 W | 6700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

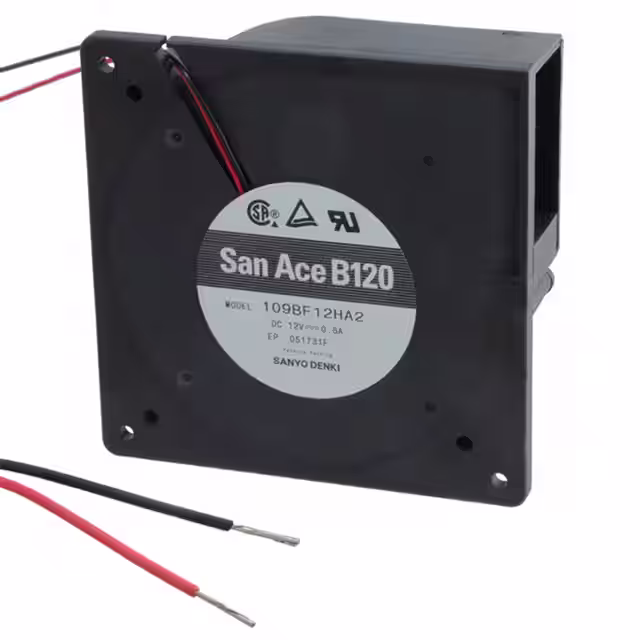

109BF12HA2FAN BLOWER 120X32MM 12VDC WIRE |
14 |
|
Datasheet |
|
San Ace B120 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.704 in H2O (175.4 Pa) | Ball | Blower | - | 52.0dB(A) | 7.2 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
109BF12HC2FAN BLOWER 120X32MM 12VDC WIRE |
9 |
|
Datasheet |
|
San Ace B120 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.704 in H2O (175.4 Pa) | Ball | Blower | Speed Sensor (Tach) | 52.0dB(A) | 7.2 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
|
9LG1224G1002FAN |
17 |
|
Datasheet |
|
San Ace 120L | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1212G1001FAN |
21 |
|
Datasheet |
|
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9WV1224J1002120X38MM 24V,SPLASH PROOF,RBLS D |
11 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9RA1424H1001140X38MM 24VDC LOW NOISE TACH |
10 |
|
Datasheet |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5.3 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1412S1001140X38MM 12VDC LOW NOISE TACH |
20 |
|
Datasheet |
|
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 9 W | 3750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1424S1001140X38MM 24VDC LOW NOISE TACH |
21 |
|
Datasheet |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 6.9 W | 3750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1448M1001140X38MM 48VDC LOW NOISE TACH |
25 |
|
Datasheet |
|
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 113.0 CFM (3.16m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.9 W | 2250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL0912P4G001FAN AXIAL 92X25MM 12VDC WIRE |
16 |
|
Datasheet |
|
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.6 W | 4400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
OD172SAP-24HHB10AZX24VDC 172X150X51MM REVERSIBLE FL |
8 |
|
Datasheet |
|
OD172SAP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 152mm H | 51.00mm | 310.0 CFM (8.68m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 60.0dB | 24 W | 3950 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD172SAP-48HHB10AZX48VDC 172X150X51MM REVERSIBLE FL |
19 |
|
Datasheet |
|
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 152mm H | 51.00mm | 310.0 CFM (8.68m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 60.0dB | 24 W | 3950 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9LG1224G1001FAN |
11 |
|
Datasheet |
|
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1248G1001FAN |
19 |
|
Datasheet |
|
San Ace 120L | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GV5724P5H03FAN AXIAL 172X51MM 24VDC WIRE |
12 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
109E1312A102FAN AXIAL 127X38MM 12VDC WIRE |
18 |
|
Datasheet |
|
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 16.8 W | 3850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9GV1424P1H004FAN 24VDC 140X38MM TACH/PWM CONN |
14 |
|
- |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | - | 5200 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9GP1224P1G001FAN AXIAL 120X38MM 24VDC WIRE |
20 |
|
Datasheet |
|
San Ace 120GP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.97 lb (439.98 g) |
|
|
9CRLB0612P0G001FAN 60x76mm 12VDC TACH/PWM |
14 |
|
Datasheet |
|
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 85.7 CFM (2.400m³/min) | 6.000 in H2O (1510.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 43.2 W | 19700 RPM Front, 18300 RPM Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
