DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

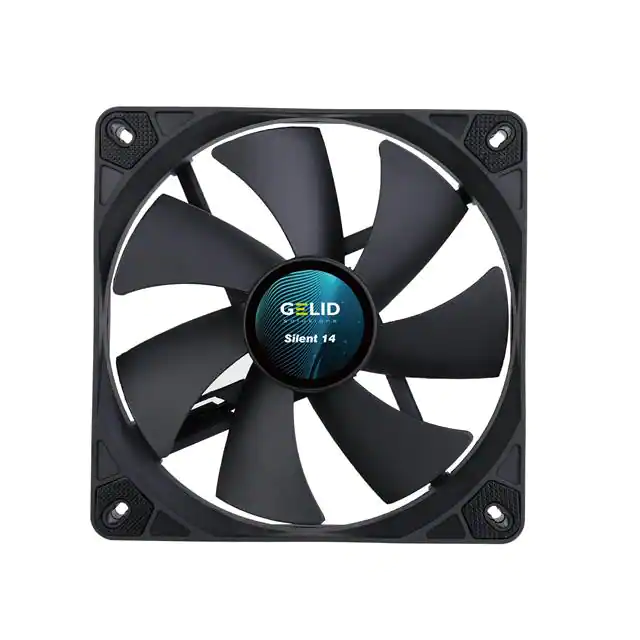

FN-PX14-11SILENT 14 BLACK |
44 |
|
- |
 |
FN | Retail Package | Active | 12VDC | Square - 140mm L x 140mm H | 25.00mm | 67.4 CFM (1.89m³/min) | 0.053 in H2O (13.2 Pa) | Hydrodynamic | Tubeaxial | - | 21.0dB(A) | - | 1000 RPM | 3 Position Rectangular Connector | - | - | - | - |
|
3610KL-05W-B60-D00FAN AXIAL 92X25MM 24VDC WIRE |
29 |
|
Datasheet |
|
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | - | 44.5dB | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
AFB04512LAFAN AXIAL 45X10MM 12VDC WIRE |
29 |
|
- |
|
AFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 7.7 CFM (0.216m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 960 mW | 4000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|
|
3610KL-04W-B20-D00FAN AXIAL 92X25MM 12VDC WIRE |
18 |
|
Datasheet |
|
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.5dB | 1.32 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
CFM-9225V-145-455FAN AXIAL 92X25MM 12VDC WIRE |
4,531 |
|
Datasheet |
|
CFM-92V | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 45.5dB(A) | 5.12 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|
FN-PX14P-15FAN AXL 140X25MM 12VDC RECT CONN |
44 |
|
- |
|
Silent Pro 14 PWM | Retail Package | Last Time Buy | 12VDC | Square/Rounded - 140mm L x 140mm H | 25.00mm | 80.7 CFM (2.26m³/min) | 0.073 in H2O (18.2 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 27.8dB(A) | - | 1500 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|
|
FN-PX14-12FAN AXL 140X25MM 12VDC RECT CONN |
14 |
|
- |
|
Silent 14 PWM | Retail Package | Last Time Buy | 12VDC | Square - 140mm L x 140mm H | 25.00mm | 74.5 CFM (2.09m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | - | 1200 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|

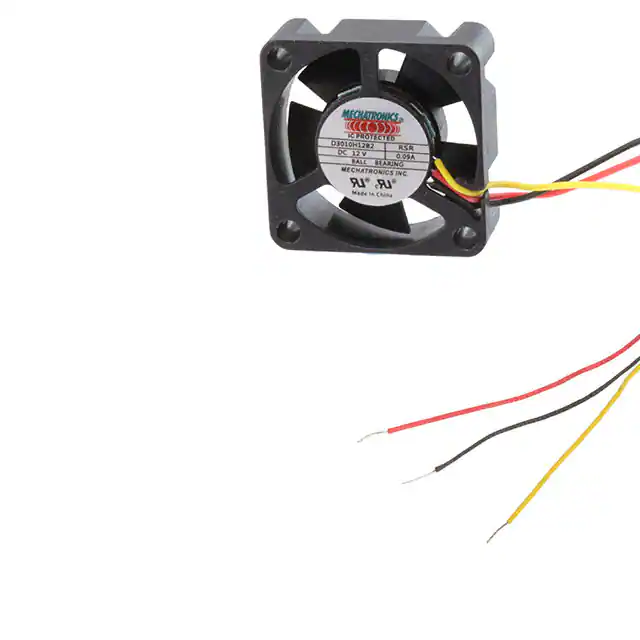

D3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
30 |
|
Datasheet |
|
D3010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | - | - | - | 3 Wire Leads | - | - | - | - |
|
1611RL-04W-B80-B00FAN AXIAL 40X28MM 12VDC WIRE |
21 |
|
Datasheet |
|
1611RL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.4 CFM (0.543m³/min) | 1.611 in H2O (402.0 Pa) | Ball | Tubeaxial | - | 60.0dB | 7.44 W | 18000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.106 lb (48.08 g) |
|
2406KL-04W-B59-L00FAN AXIAL 60X15MM 12VDC WIRE |
79 |
|
Datasheet |
|
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 1.92 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
OD5010-05LBFAN AXIAL 50X10.5MM 5VDC WIRE |
15 |
|
Datasheet |
|
OD5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus | - |
|
F8025E12B1-FHRFAN AXIAL 80X25MM 12VDC WIRE |
6 |
|
Datasheet |
|
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
2406VL-04W-B39-B50FAN AXIAL 60X15MM 12VDC WIRE |
84 |
|
Datasheet |
|
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 960 mW | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.121 lb (54.88 g) |
|
MD4028V12B1-FSR-L11FAN AXIAL 40X28MM 12VDC WIRE |
10 |
|
Datasheet |
|
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
109R0824G4021FAN AXIAL 80X25MM 24VDC WIRE |
40 |
|
Datasheet |
|
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
OD6025-24HBXCFAN, DC 60X25 24VDC 37 CFM |
15 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4710KL-05W-B30-E00FAN AXIAL 119X25.5MM 24VDC WIRE |
46 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 88.2 CFM (2.47m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.6 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
OD3510-12LLBFAN AXIAL 35X10MM 12VDC WIRE |
44 |
|
Datasheet |
|
OD3510 | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | - | 17.0dB(A) | 600 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.02 lb (9.07 g) |
|
|
QYW12038012BM-EAH-6120X38MM 12V BALL 3000RPM W/AR, |
31 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FN-PX12-16SILENT 12 PWM - BLACK |
30 |
|
- |
|
FN | Retail Package | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 64.5 CFM (1.81m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | PWM Control | 25.5dB(A) | - | 750/1600 RPM | 4 Position Rectangular Connector | - | - | CE | - |
