DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3412/2FAN AXIAL 92X25.4MM 12VDC WIRE |
4,176 |
|
Datasheet |
 |
3400 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.4 W | - | 3 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

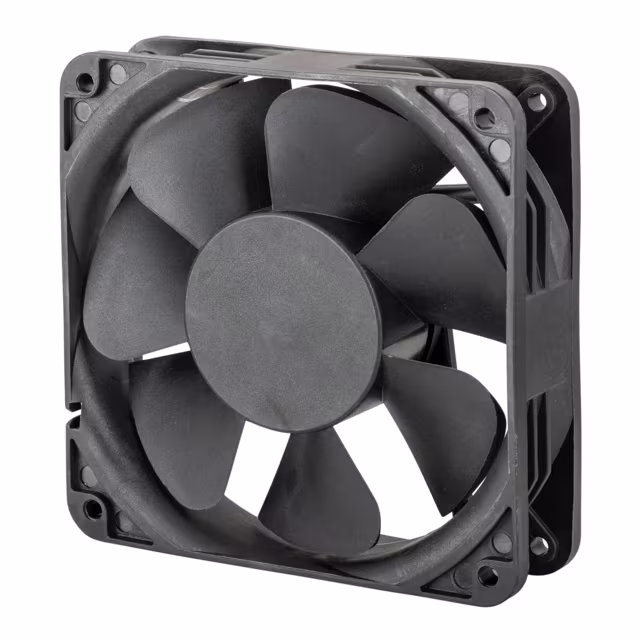

G1232X48BPLB2FAN AXIAL 120X32MM 48VDC WIRE |
80 |
|
Datasheet |
|
Intelligent Motion | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 117.2 CFM (3.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 46.7dB(A) | 6.86 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9G0912P2A0192X32MM 12V,HIGH PERF. DC TACH,P |
60 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | CSA, TUV, UR | - |
|
|
9G1248F4021FAN AXIAL 120X25MM 48VDC WIRE |
56 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.88 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
FD9225B24W11-81-3HDC Axial Fan 92x92x25mm 24VDC |
17 |
|
Datasheet |
|
81 | Tape & Box (TB) | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 69.7 CFM (1.95m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Auto Restart | 41.2dB(A) | 8.4 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cUL, TUV, UL | 0.218 lb (98.88 g) |
|
|
FBD6025B12W3-81-4JDC Blower 60x60x25mm 12VDC |
7 |
|
Datasheet |
|
81 | Tape & Box (TB) | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 7.1 CFM (0.199m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Alarm Sensor, PWM Control, Speed Sensor (Tach) | 25.5dB(A) | 1.56 W | 2500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 0.115 lb (52.16 g) |
|
9RA0848H10011FAN AXIAL 80X38MM 48VDC WIRE |
34 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.64 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
ASFN84391FAN AXIAL 80X25MM 12VDC WIRE |
3,348 |
|
- |
|
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.3 CFM (0.680m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 1.2 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | 0.176 lb (79.83 g) |
|
|
CFR2B5HFAN BLOWER CF 68.8X23.5MM 5VDC |
8 |
|
Datasheet |
|
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 68.8mm L x 23mm H | 23.50mm | 5.5 CFM (0.154m³/min) | - | Ball | Blower, Cross Flow | - | 25.0dB | 1 A | 7500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B5H-SFAN BLOWER CF 68.8X23.5MM 5VDC/T |
7 |
|
Datasheet |
|
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 68.8mm L x 23mm H | 23.50mm | 5.5 CFM (0.154m³/min) | - | Ball | Blower, Cross Flow | - | 25.0dB | 1 A | 7000 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
9GA0912L40192X25MM 12V,HIGH PERF.,LOW POWER |
59 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
CFM-9238BF-180-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
50 |
|
Datasheet |
|
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 13.68 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFR2B12H-SFAN BLOWER CF 68.8X23.5MM 12VDC/ |
7 |
|
Datasheet |
|
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 68.8mm L x 23mm H | 23.50mm | 5.5 CFM (0.154m³/min) | - | Ball | Blower, Cross Flow | - | 25.0dB | 1 A | 7000 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR2B12HFAN BLOWER CF 68.8X23.5MM 12VDC |
7 |
|
Datasheet |
|
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 68.8mm L x 23mm H | 23.50mm | 5.5 CFM (0.154m³/min) | - | Ball | Blower, Cross Flow | - | 25.0dB | 1 A | 7000 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
9RA0824H10011FAN AXIAL 80X38MM 24VDC WIRE |
27 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
8412NLFAN AXIAL 80X25.4MM 12VDC WIRE |
2,212 |
|
Datasheet |
|
8400N | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.0 CFM (0.532m³/min) | - | Ball | Tubeaxial | - | 17.0dB(A) | 600 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
|
9RA0812G1001FAN AXIAL 80X38MM 12VDC WIRE |
24 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0924F4D0192X25MM 24V,HIGH PERF., LOW POWE |
56 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
CFR1B5X-S-PFAN MICR BLOWER 48.5X23.5MM 5VDC |
21 |
|
Datasheet |
|
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 48.5mm L x 23mm H | 23.50mm | - | 0.230 in H2O (57.3 Pa) | Ball | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), PWM Control | 36.0dB(A) | 1.2 V | 11500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR1B5XFAN MICR BLOWER 48.5X23.5MM 5VDC |
10 |
|
Datasheet |
|
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 48.5mm L x 23mm H | 23.50mm | - | 0.230 in H2O (57.3 Pa) | Ball | Micro Blower | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.2 V | 11500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
