DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9232M12BPLB1-7FAN AXIAL 92X32MM 12VDC WIRE |
33 |
|
Datasheet |
 |
Intelligent Motion | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 60.3 CFM (1.71m³/min) | 0.220 in H2O (54.7 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 35.3dB(A) | 2.52 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

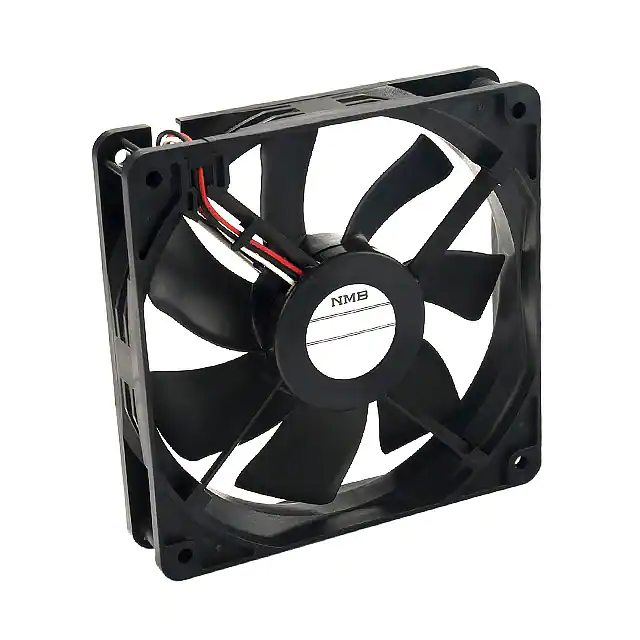

11925SA-12N-EA-00FAN AXIAL 119X25MM 12VDC WIRE |
24 |
|
Datasheet |
|
11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 2.88 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
9GV0412G301FAN AXIAL 40X28MM 12VDC WIRE |
25 |
|
Datasheet |
|
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.2 CFM (0.594m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 5.64 W | 13000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|

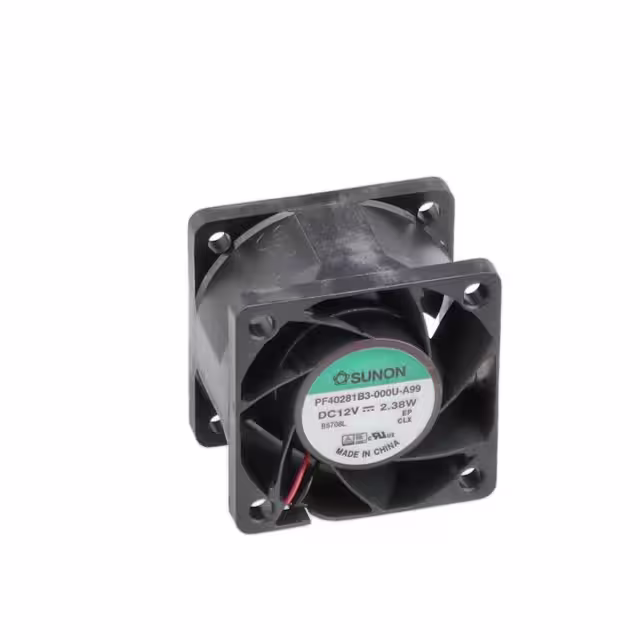

PF40281B3-000U-A99FAN AXIAL 40X28MM 12VDC WIRE |
85 |
|
Datasheet |
|
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.4 CFM (0.431m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 43.9dB(A) | 1.95 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
PF80251V3-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE |
74 |
|
Datasheet |
|
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.5dB(A) | 2.4 W | 4200 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
XYW12038012BSS-5(R)FAN AXIAL 120X38MM 12VDC WIRE |
11 |
|
- |
|
XYW | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 142.0 CFM (4.02m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.5dB(A) | 11.4 W | 4500 RPM | 3 Wire Leads | - | - | - | - |
|
AFB0912H-R00FAN AXIAL 92X25.4MM 12VDC WIRE |
69 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.92 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
EYW08025012BH-12FAN AXIAL 80X25MM 12VDC WIRE |
20 |
|
Datasheet |
|
EYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.0 CFM (1.18m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 33.1dB(A) | 2.28 W | 2700 RPM | 2 Wire Leads | - | - | - | - |
|

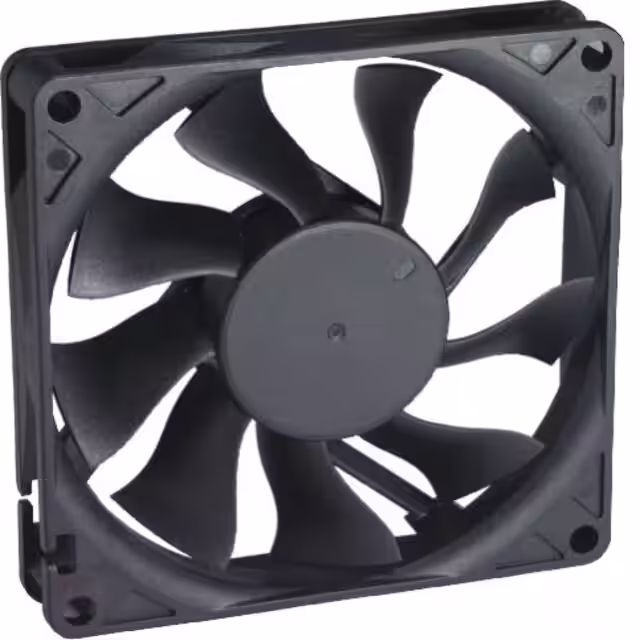

YW08015012BL-12(Q)FAN AXIAL 80X15MM 12VDC WIRE |
20 |
|
Datasheet |
|
YW08015 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 23.5 CFM (0.658m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 840 mW | 2100 RPM | 2 Wire Leads | - | - | - | - |
|
AUB1212H-CK15FAN AXIAL 120X25.4MM 12VDC WIRE |
90 |
|
Datasheet |
|
AUB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 88.6 CFM (2.48m³/min) | 0.161 in H2O (40.2 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 3.24 W | 2200 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.485 lb (220.00 g) |
|

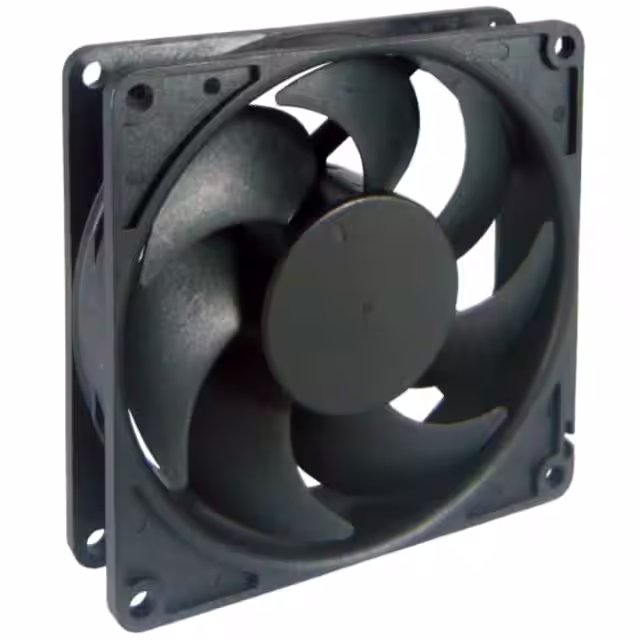

QYW09225012BL-12FAN AXIAL 92X25MM 12VDC WIRE |
20 |
|
Datasheet |
|
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 25.9 CFM (0.725m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 16.7dB(A) | 420 mW | 2000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225012BH-12FAN AXIAL 92X25MM 12VDC WIRE |
20 |
|
Datasheet |
|
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 1.74 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
3610VL-04W-B50-E00FAN AXIAL 92X25MM 12VDC WIRE |
76 |
|
Datasheet |
|
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
D8025H48BPLB2AFAN AXIAL 80X25MM 48VDC WIRE |
54 |
|
Datasheet |
|
Intelligent Motion | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 39.3 CFM (1.12m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.1dB(A) | 2.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
MR4028H48B1+6-RSR-2946FAN DC 12 VDC |
43 |
|
Datasheet |
|
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GA0612M7D01FAN |
100 |
|
Datasheet |
|
San Ace 60 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
QYW09225024BH-12FAN AXIAL 92X25MM 24VDC WIRE |
20 |
|
Datasheet |
|
QYW9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225024BL-12FAN AXIAL 92X25MM 24VDC WIRE |
20 |
|
Datasheet |
|
QYW9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 25.9 CFM (0.725m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 16.7dB(A) | 1.08 W | 2000 RPM | 2 Wire Leads | - | - | - | - |
|
YW04020012BS-N-5FAN AXIAL 40X20MM 12VDC WIRE |
20 |
|
Datasheet |
|
YW04020-N | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
AGA154UFAN MICRO FAN 15X4MM 3VDC WIRE |
100 |
|
- |
|
Air-G | Box | Active | 3VDC | Square - 15mm L x 15mm H | 4.00mm | 0.120 CFM (0.003m³/min) | 0.027 in H2O (6.7 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 14.6dB(A) | - | 7500 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.003 lb (1.36 g) |
