DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB1212MEFAN AXIAL 120X38MM 12VDC WIRE |
3,514 |
|
Datasheet |
 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.12 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
GF92251B1-000U-AC9FAN AXIAL 92X25MM 12VDC WIRE |
4,522 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 4.72 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
AFC1212D-SP19FAN AXIAL 120X25.4MM 12VDC WIRE |
5 |
|
Datasheet |
|
AFC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 89.7 CFM (2.51m³/min) | 0.338 in H2O (84.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 3.84 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.503 lb (228.16 g) |
|
|
17002003ACR4028-XD12BPL |
4,073 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 56.0dB(A) | 2.76 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
GF92382BX-1000U-ADPFAN AXIAL 24V 92X38MM GR487 |
4,795 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GA0812P4J0011FAN AXIAL 80X25MM 12VDC WIRE |
3,760 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 7400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
GF92382BX-1000U-SDP24VDC FAN 92X38MM TACH/PWM GR487 |
2,414 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial | PWM Control | 66.8dB(A) | 40.8 W | 9000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF92382B1-1000U-SDP24VDC FAN 92X38MM TACH/PWM GR487 |
4,787 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 145.3 CFM (4.07m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control | 60.6dB(A) | 20.4 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF92382B1-1000U-SEP24VDC FAN 92X38MM TACH/PWM IP68 |
2,698 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 145.3 CFM (4.07m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | PWM Control | 60.6dB(A) | 20.4 W | 7200 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
AFB0612H-EPFAN AXIAL 60X25.4MM 12VDC WIRE |
3,128 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 22.6 CFM (0.633m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection | 34.0dB(A) | 1.68 W | 4250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
PFB0824UHEP0AXIAL 80X38 24VPWM |
2,543 |
|
Datasheet |
|
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 18.48 W | 7500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, VDE | - |
|
9GA0812P2M0011FAN AXIAL 80X32MM 12VDC WIRE |
4,332 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.7 CFM (1.67m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.2 W | 6700 RPM | 4 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
AFB0648EH-TP27FAN AXIAL 60X25.4MM 48VDC WIRE |
3,033 |
|
Datasheet |
|
AFB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 6.72 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
9RA1224H1001120X38MM 24VDC TACH |
5 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.1 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9G0912H1011FAN AXIAL 92X38MM 12VDC WIRE |
3,169 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 6.96 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|

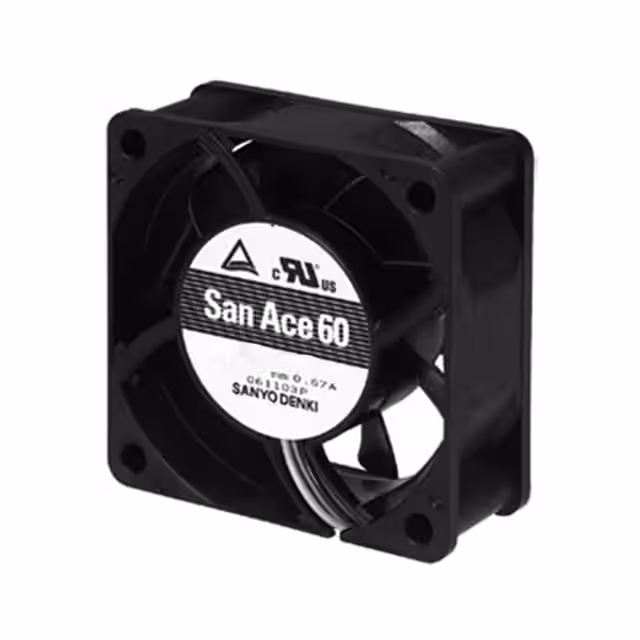

9G0648P4S0011FAN AXIAL 60X25MM 48VDC WIRE |
4,743 |
|
Datasheet |
|
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.223 in H2O (304.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.64 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
PFR0612EE-00AXIAL 60X38 12VDC PWM |
3,211 |
|
Datasheet |
|
PFR | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 77.0 CFM (2.16m³/min) | 3.185 in H2O (793.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.7dB(A) | 27.6 W | 16500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
9BMB24G2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
2,825 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Sensor | 61.0dB(A) | 19.9 W | 5750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9G0624P4S0011FAN AXIAL 60X25MM 24VDC WIRE |
2 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.16 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
GF80321B1-000U-AE9FAN AXIAL 80X32MM 12VDC WIRE |
2,491 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 45.2dB(A) | 3.72 W | 4800 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.24 lb (108.86 g) |
