DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PFR0912SE-00AXIAL 92X38 12VDC PWM |
4,981 |
|
Datasheet |
 |
PFR | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 3.724 in H2O (927.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 34.8 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
9HVA0312P3G00138X28MM, DC 12V, HIGH STATIC PRE |
3,433 |
|
Datasheet |
|
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 25.1 CFM (0.703m³/min) | 5.219 in H2O (1300.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 13.2 W | 30000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9HVA0312P3G001138X28MM, DC 12V, HIGH STATIC PRE |
3,221 |
|
Datasheet |
|
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 25.1 CFM (0.703m³/min) | 5.219 in H2O (1300.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 13.2 W | 30000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
THB0648BEFAN AXIAL 60X38MM 48VDC WIRE |
3,804 |
|
Datasheet |
|
THB | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 68.6 CFM (1.92m³/min) | 2.886 in H2O (718.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 16.32 W | 14700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
|
9HVA0312P3K001138X28MM, DC 12V, HIGH STATIC PRE |
4,360 |
|
Datasheet |
|
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 32.5 CFM (0.910m³/min) | 8.431 in H2O (2100.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 25.2 W | 38500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9HVA0312P3K00138X28MM, DC 12V, HIGH STATIC PRE |
2,389 |
|
Datasheet |
|
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 32.5 CFM (0.910m³/min) | 8.431 in H2O (2100.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 25.2 W | 38500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0924J1001FAN AXIAL 92X38MM 24VDC TACH |
2,860 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 14.9 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA0848P1S61FAN AXIAL 80X38MM 48VDC WIRE |
2,135 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 12 W | 9550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
|
9CRV0412P5G20140X56MM 12VDC COUNTER ROTATING T |
3,095 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 26.8 CFM (0.750m³/min) | 3.003 in H2O (748.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 19000 Front, 16900 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
GFC0624DW-DT48FAN AXIAL DUAL 60X76MM 21VDC |
4,068 |
|
Datasheet |
|
GFC | Box | Active | 21VDC | Square - 60mm L x 60mm H | 76.00mm | 69.4 CFM (1.94m³/min) | 3.025 in H2O (753.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 31.2 W | 11300 Front, 12500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.573 lb (260.00 g) |
|

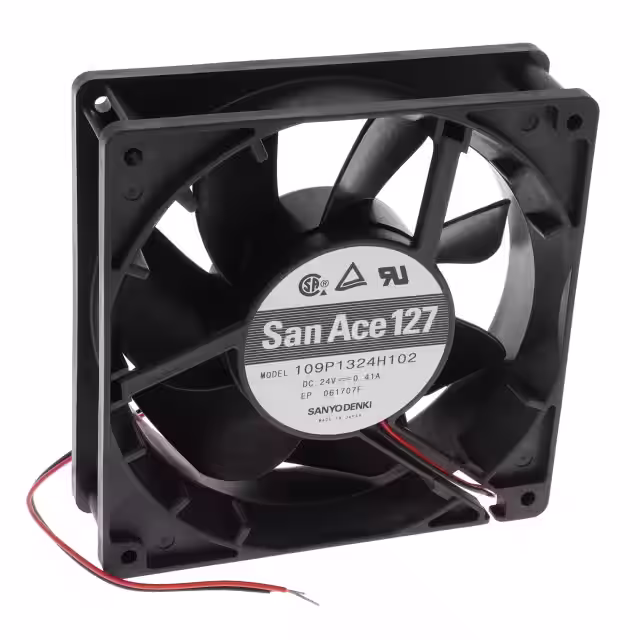

109P1324H102FAN AXIAL 127X38MM 24VDC WIRE |
1 |
|
Datasheet |
|
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.84 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
9RA1212E1001120X38MM 12VDC TACH |
3,058 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5.6 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
PFB0812UHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
5 |
|
Datasheet |
|
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 18.6 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
|
PFB1212SE-00AXIAL 120X38 12VDC PWM |
4,083 |
|
Datasheet |
|
PFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 260.7 CFM (7.38m³/min) | 2.654 in H2O (661.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 54 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
QFR0624UHP6AXIAL 60X25.4 24V PWM IP68 |
3,244 |
|
Datasheet |
|
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 41.3 CFM (1.16m³/min) | 0.742 in H2O (184.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.24 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9WG1224M101-EFAN AXIAL 120X38MM 24VDC WIRE |
4,969 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.64 W | 1950 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9RA1224P1K0011120X38MM 24VDC RBLS TACH/PWM |
4,117 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.5 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GA1248G40011FAN AXIAL 120X25.4MM 48VDC WIRE |
3,676 |
|
Datasheet |
|
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 11.52 W | 6400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
EFB1524HHGFAN AXIAL 172X50.8MM 24VDC WIRE |
4,028 |
|
Datasheet |
|
EFB | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 279.7 CFM (7.83m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 18.48 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
GFC0812DW-SM00B7PFAN AXIAL DUAL 80X80MM 12VDC |
4,112 |
|
Datasheet |
|
GFC - Three-Phase | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 167.0 CFM (4.68m³/min) | 4.170 in H2O (1038.7 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.5dB(A) | 62.4 W | 12000 Front, 10500 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.851 lb (386.01 g) |
