DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE2408PTS3-6FAN AXIAL 80X25.5MM 24VDC WIRE |
3,582 |
|
Datasheet |
 |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 29.4 CFM (0.823m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 24.5dB(A) | 2.4 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.265 lb (120.2 g) |
|
FAD1-06020CSKW11FAN AXIAL 60X20MM 12VDC WIRE |
4,271 |
|
Datasheet |
|
FAD1-06020 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.283 in H2O (70.5 Pa) | Sleeve | Tubeaxial | - | 39.0dB(A) | 2.4 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.108 lb (48.99 g) |
|

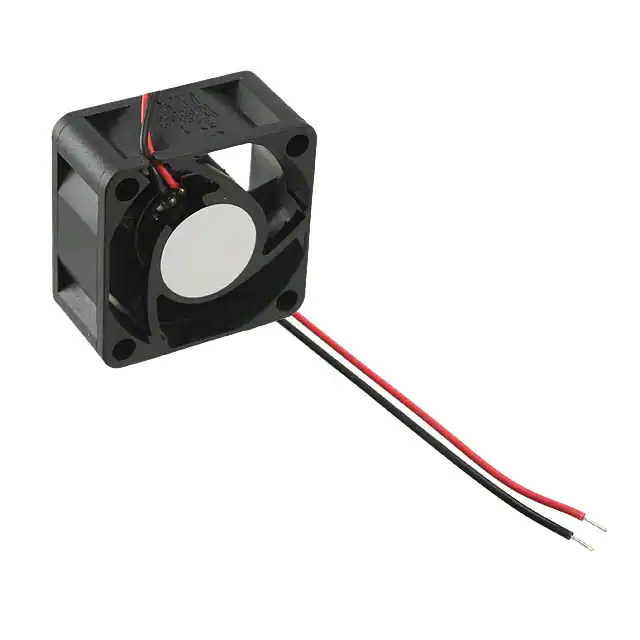

KDE1204PKV2 MS.A.GNFAN AXIAL 40X20MM 12VDC WIRE |
2,610 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 21.0dB(A) | 600 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|

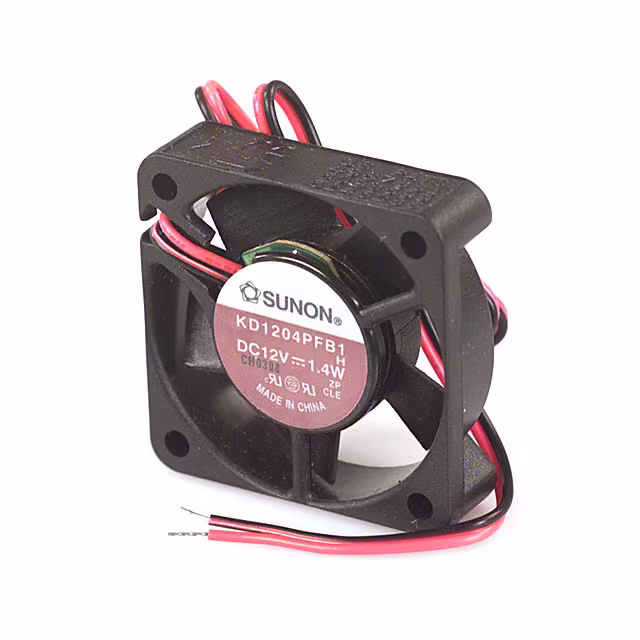

KD1204PFB1 ( H )FAN AXIAL 40X10.5MM 12VDC WIRE |
4,233 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 8.3 CFM (0.232m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.4 W | 8400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

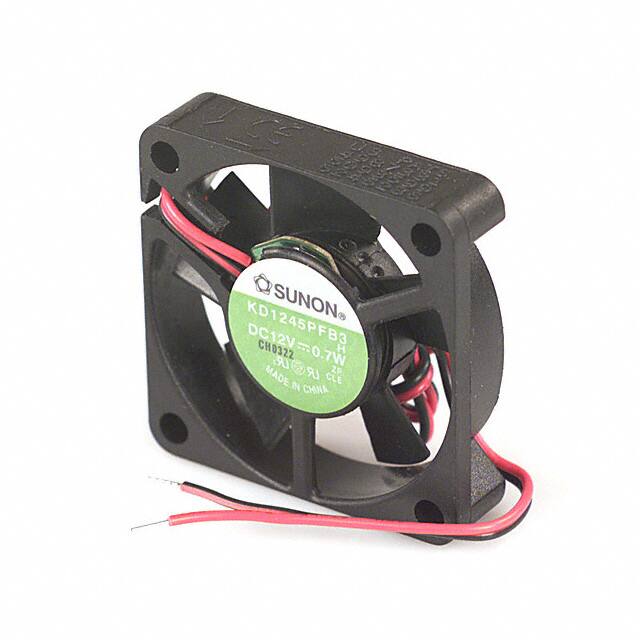

KD1245PFB3 HFAN AXIAL 45X10.5MM 12VDC WIRE |
2,340 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 6.1 CFM (0.171m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 700 mW | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|

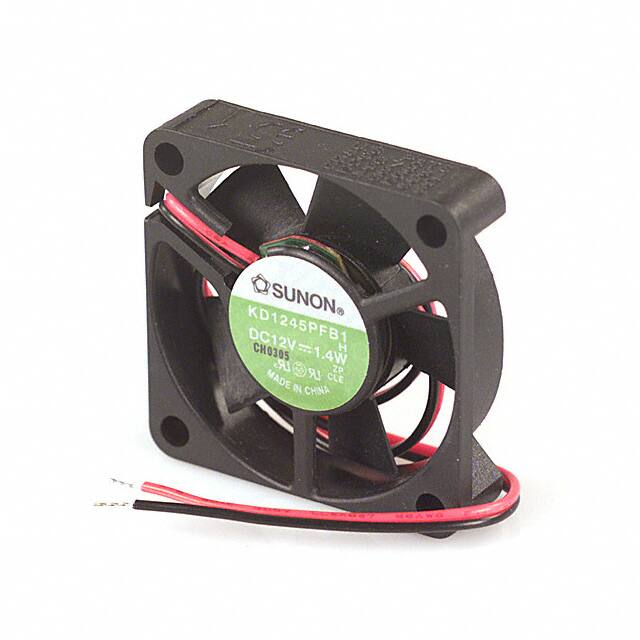

KD1245PFB1 HFAN AXIAL 45X10.5MM 12VDC WIRE |
2,999 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 9.5 CFM (0.266m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 33.8dB(A) | 1.4 W | 7100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|

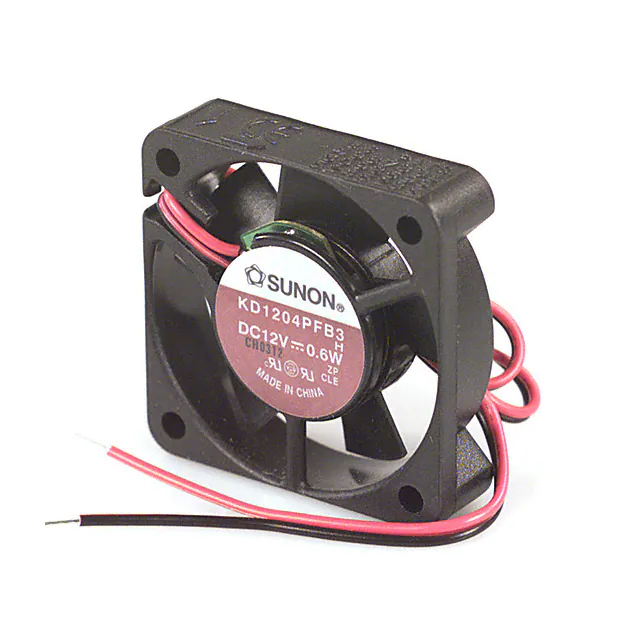

KD1204PFB3 HFAN AXIAL 40X10.5MM 12VDC WIRE |
2,973 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.7 CFM (0.132m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|

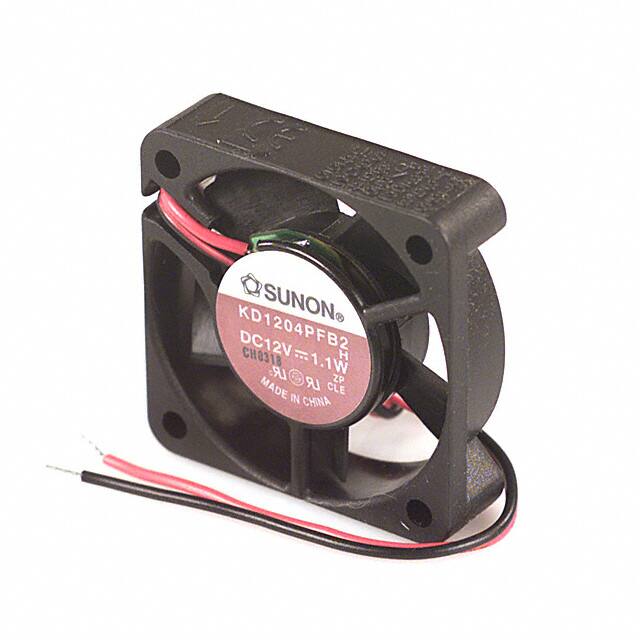

KD1204PFB2 HFAN AXIAL 40X10.5MM 12VDC WIRE |
3,870 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 6.5 CFM (0.182m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 1.1 W | 6600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
|
EB45101S2-000U-999FAN |
2,431 |
|
- |
|
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE45101S1-000U-999FAN |
4,542 |
|
- |
|
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

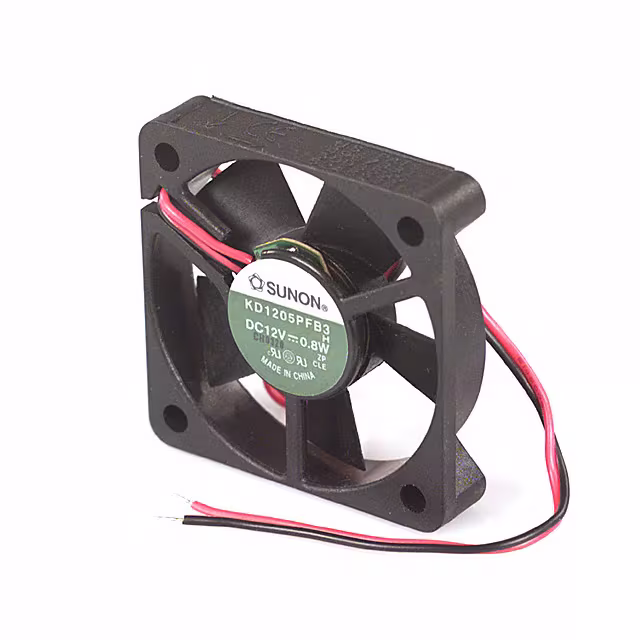

KD1205PFB3 HFAN AXIAL 50X10.5MM 12VDC WIRE |
4,422 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 8.0 CFM (0.224m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 24.3dB(A) | 800 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

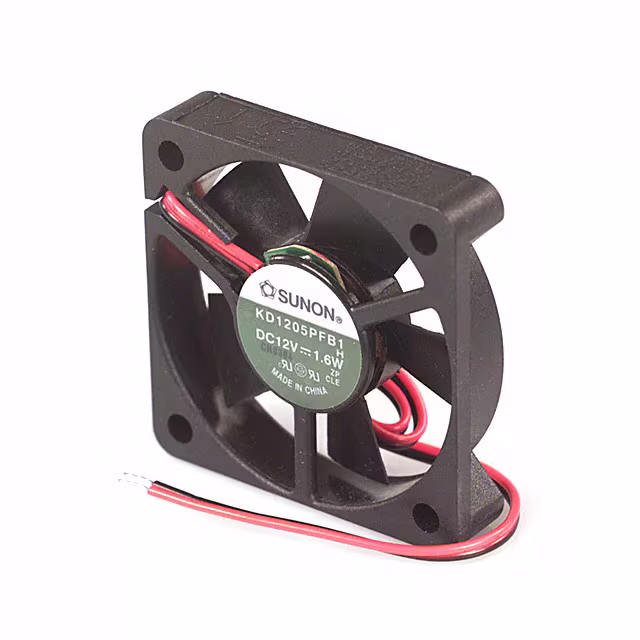

KD1205PFB1 HFAN AXIAL 50X10.5MM 12VDC WIRE |
3,482 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.4 CFM (0.319m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 34.7dB(A) | 1.6 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|
KD1205PFB2 HFAN AXIAL 50X10.5MM 12VDC WIRE |
2,144 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 9.5 CFM (0.266m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.9dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.051 lb (23.13 g) |
|

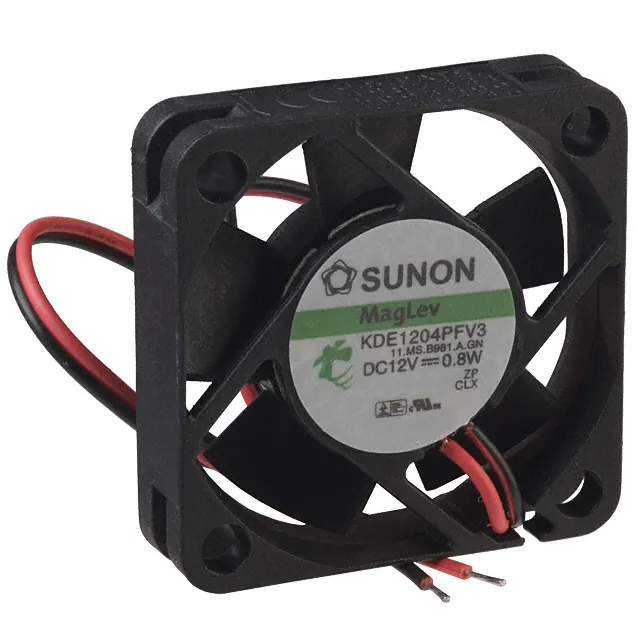

KDE1204PFV3 11.MS.B981.A.GNFAN AXIAL 40X10MM 12VDC WIRE |
4,272 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 600 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.04 lb (18.14 g) |
|
EE80251B2-000U-999FAN AXIAL 80X25MM 12VDC WIRE |
3,930 |
|
Datasheet |
|
EE | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|

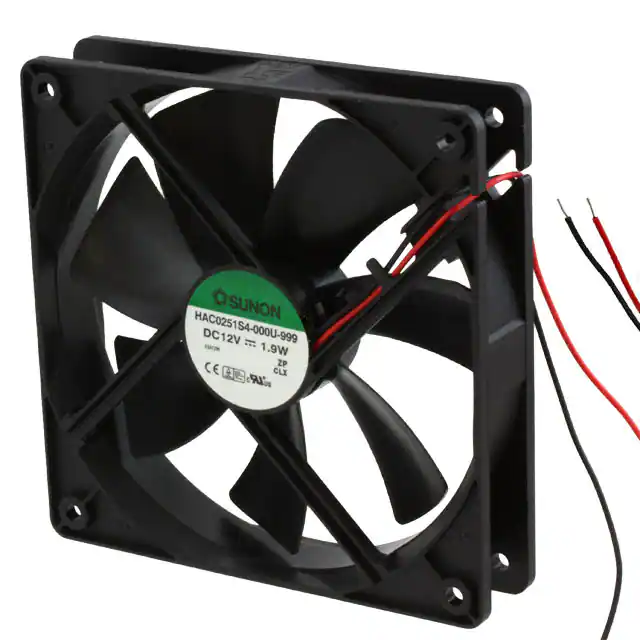

HAC0251S4-000U-999FAN AXIAL 120X25MM 12VDC WIRE |
4,836 |
|
Datasheet |
|
HAC | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | - | 29.6dB(A) | 1.9 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.218 lb (98.88 g) |
|

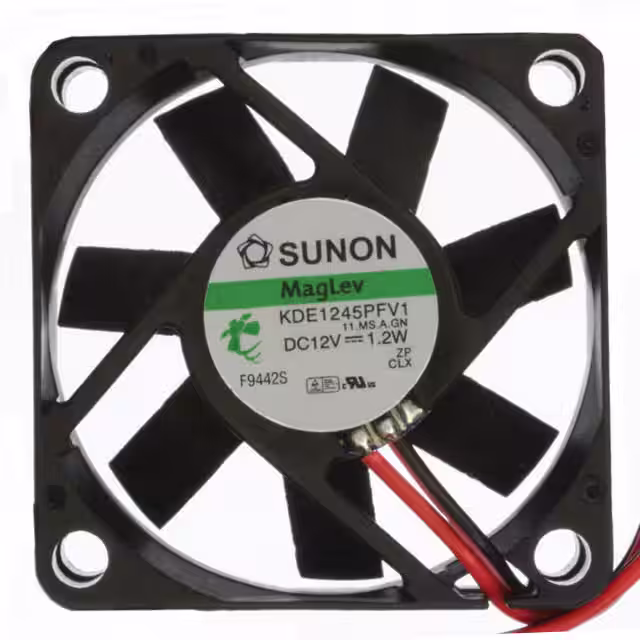

KDE1245PFV1.11.MS.A.GNFAN AXIAL 45X10MM 12VDC WIRE |
4,389 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 1.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.041 lb (18.6 g) |
|

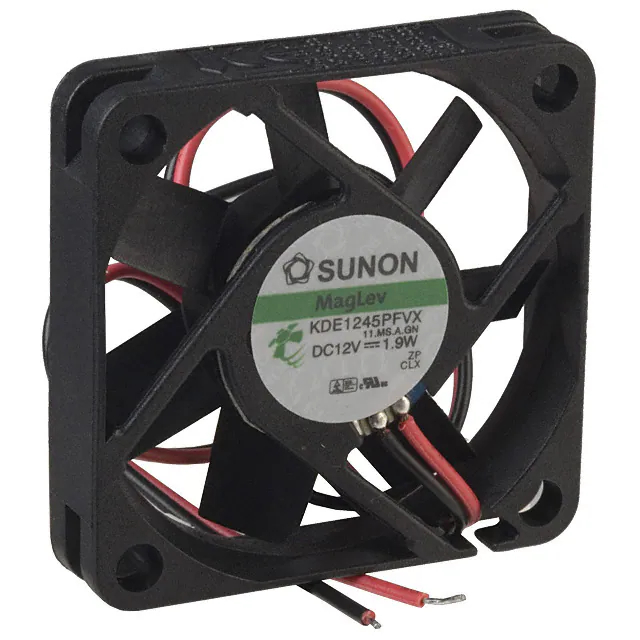

KDE1245PFVX.11.MS.A.GNFAN AXIAL 45X10MM 12VDC WIRE |
2,436 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 12.5 CFM (0.350m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 35.0dB(A) | 1.9 W | 7100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.041 lb (18.6 g) |
|

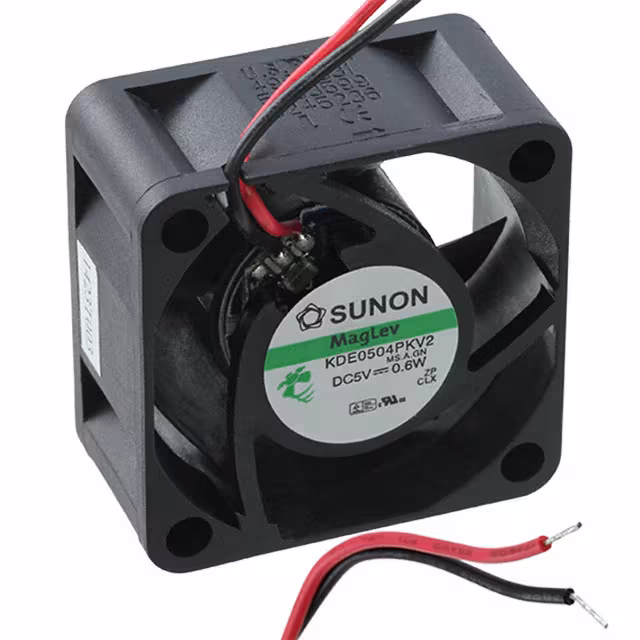

KDE0504PKV2.MS.A.GNFAN AXIAL 40X20MM VAPO 5VDC WIRE |
3,012 |
|
Datasheet |
|
KDE | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 600 mW | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | CE, cURus, TUV | - |
|

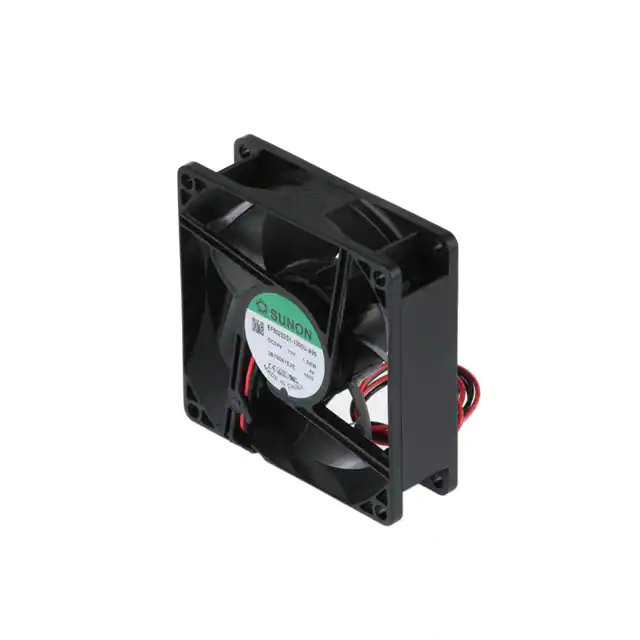

EF80252S1-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,752 |
|
Datasheet |
|
EF | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (45.0 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.32 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
