DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

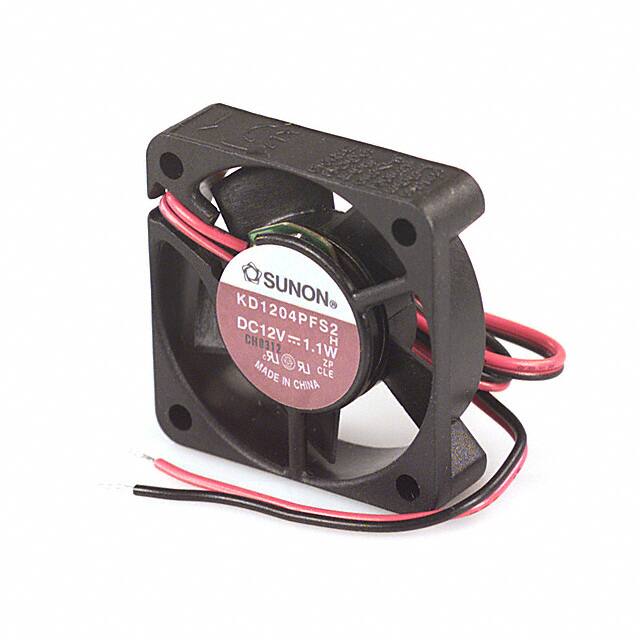

KD1204PFS2 HFAN AXIAL 40X10.5MM 12VDC WIRE |
3,738 |
|
Datasheet |
 |
KD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 1.1 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.034 lb (15.42 g) |
|
FAD1-05010BSHW11FAN AXIAL 50X10.5MM 5VDC WIRE |
2,643 |
|
Datasheet |
|
FAD1-05010 | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.50mm | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | - | 27.5dB(A) | 1.1 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.04 lb (18.14 g) |
|
KD1245PFS3 HFAN AXIAL 45X10.5MM 12VDC WIRE |
2,998 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.50mm | 5.5 CFM (0.154m³/min) | - | Sleeve | Tubeaxial | - | - | 500 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

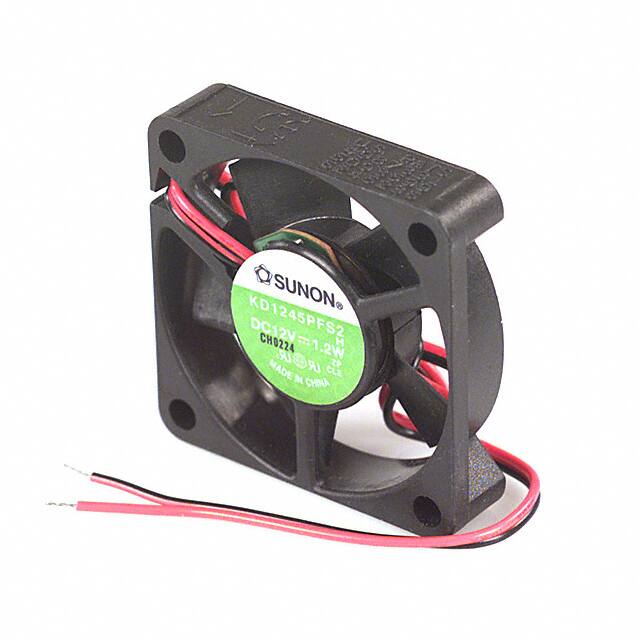

KD1245PFS2 HFAN AXIAL 45X10MM 12VDC WIRE |
2,061 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 7.1 CFM (0.199m³/min) | - | Sleeve | Tubeaxial | - | - | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
|
KD1208PTS2 HFAN AXIAL 80X25MM 12VDC WIRE |
2,312 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.5 CFM (1.02m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 30.0dB(A) | 2.3 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.204 lb (92.53 g) |
|
|
KD1208PTS3 HFAN AXIAL 80X25MM 12VDC WIRE |
3,375 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 1.6 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.204 lb (92.53 g) |
|
|
ME80201V1-000U-G99DC FAN 80X20MM |
4,940 |
|
- |
|
ME | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 35.9 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.0dB(A) | 1.56 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MC25150V2-000U-A99DC FAN 25X10MM |
3,576 |
|
- |
|
MC | Box | Obsolete | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 14.0dB(A) | 0.3 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ME45101V1-000U-G99DC FAN 45X10MM |
4,059 |
|
- |
|
ME | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 11.8 CFM (0.330m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.5dB(A) | 1.32 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
KD1208PTS1 HFAN AXIAL 80X25MM 12VDC WIRE |
4,566 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.5 CFM (1.05m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 32.5dB(A) | 2.4 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.204 lb (92.53 g) |
|
|
KD1205PFS1 HFAN AXIAL 50X10.5MM 12VDC WIRE |
2,656 |
|
- |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 9.6 CFM (0.269m³/min) | - | Sleeve | Tubeaxial | - | - | 900 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KD1205PFS3 HFAN AXIAL 50X10.5MM 12VDC WIRE |
3,581 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.0 CFM (0.196m³/min) | - | Sleeve | Tubeaxial | - | - | 500 mW | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

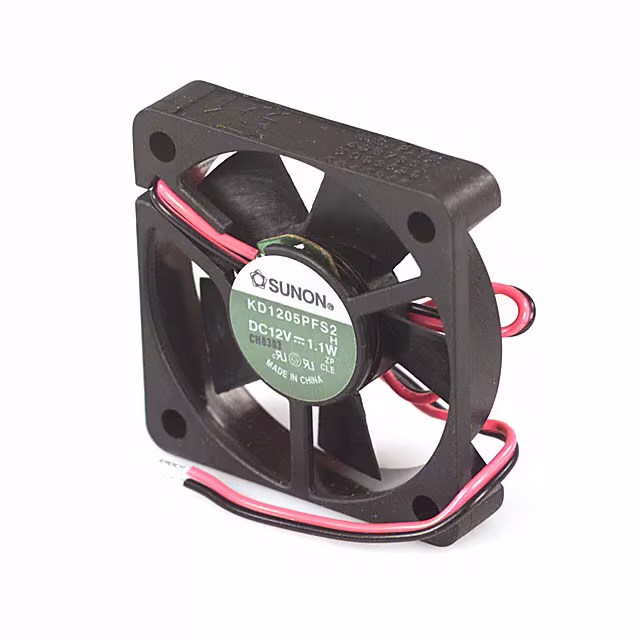

KD1205PFS2 HFAN AXIAL 50X10MM 12VDC WIRE |
4,936 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 8.5 CFM (0.238m³/min) | - | Sleeve | Tubeaxial | - | - | 1.1 W | - | 2 Wire Leads | - | - | - | - |
|
|
KD1209PTS1 HFAN AXIAL 92X25MM 12VDC WIRE |
2,940 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.5 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 33.0dB(A) | 2.6 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|
|
KD1209PTS3 HFAN AXIAL 92X25MM 12VDC WIRE |
3,888 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | 1.7 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|
|
KD1209PTS2 HFAN AXIAL 92X25MM 12VDC WIRE |
2,623 |
|
Datasheet |
|
KD | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 32.0dB(A) | 2.5 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.238 lb (107.95 g) |
|

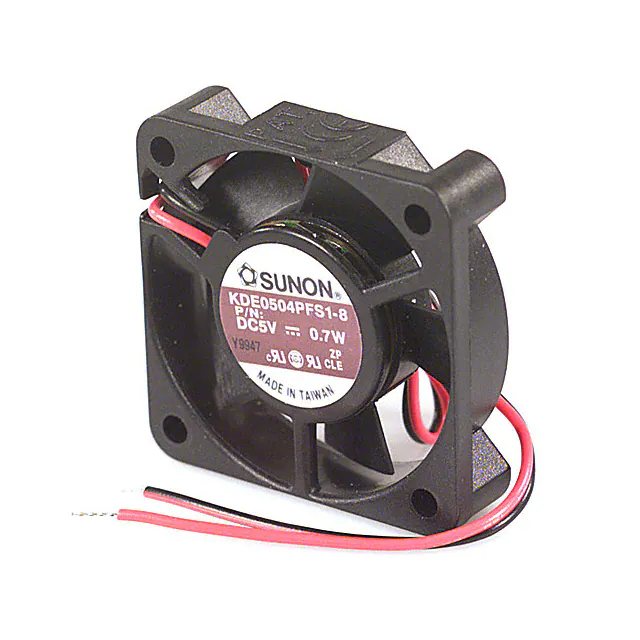

KDE0504PFS1-8FAN AXIAL 40X10.5MM 5VDC WIRE |
2,449 |
|
Datasheet |
|
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.6 CFM (0.185m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 25.0dB(A) | 700 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.044 lb (19.96 g) |
|

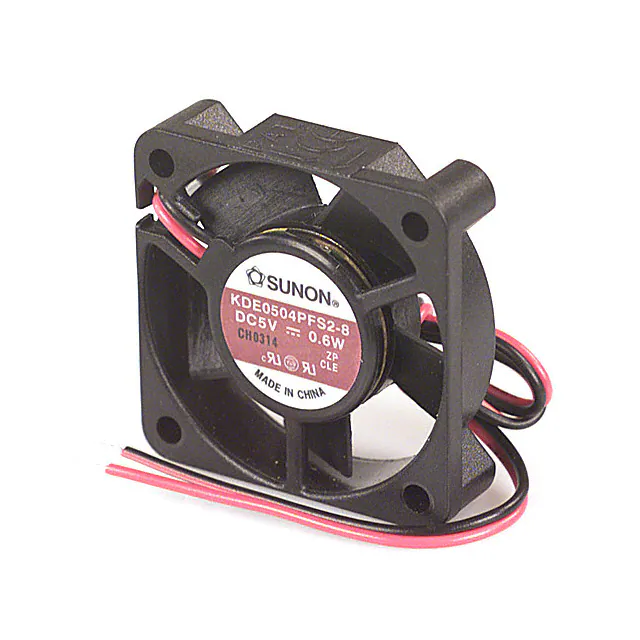

KDE0504PFS2-8FAN AXIAL 40X10.5MM 5VDC WIRE |
2,376 |
|
Datasheet |
|
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.6 CFM (0.157m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | - | 24.0dB(A) | 600 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.044 lb (19.96 g) |
|

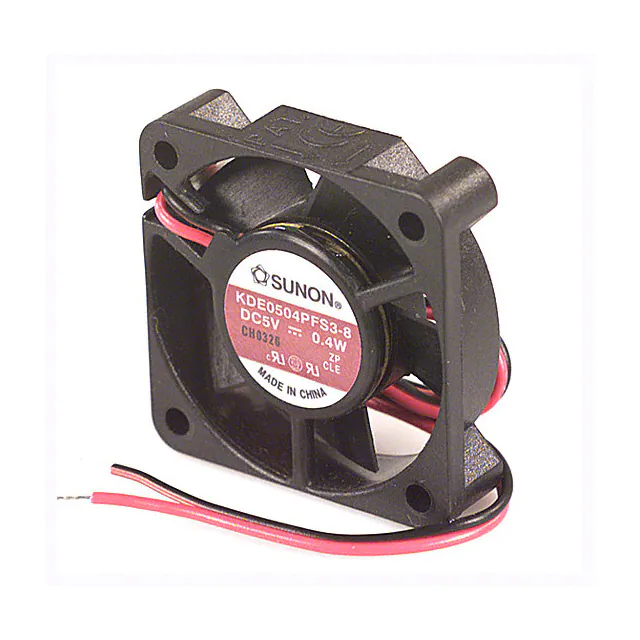

KDE0504PFS3-8FAN AXIAL 40X10.5MM 5VDC WIRE |
2,534 |
|
Datasheet |
|
KDE | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.5 CFM (0.126m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 22.8dB(A) | 400 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUR, UL | 0.044 lb (19.96 g) |
|
|
KDE1205PHS3FAN AXIAL 52X15.5MM 12VDC WIRE |
3,539 |
|
Datasheet |
|
KDE | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.50mm | 7.6 CFM (0.213m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 24.0dB(A) | 900 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.081 lb (36.74 g) |
