DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-2507CF-0140-313-22DC AXIAL FAN, 25 MM SQUARE, 7 MM |
3,156 |
|
Datasheet |
 |
CFM-25CF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 7.00mm | 3.1 CFM (0.087m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.4dB(A) | 1.75 W | 14000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020S-130-257FAN AXIAL 60X20MM 12VDC WIRE |
2,257 |
|
Datasheet |
|
CFM-60S | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 25.7dB(A) | 960 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020V-060-210FAN AXIAL 40X20MM 5VDC WIRE |
2,814 |
|
Datasheet |
|
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.0dB(A) | 620 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-070-255FAN AXIAL 40X20MM 5VDC WIRE |
2,298 |
|
Datasheet |
|
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 25.5dB(A) | 870 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-150-165FAN AXIAL 40X20MM 12VDC WIRE |
4,048 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.5dB(A) | 560 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-160-210FAN AXIAL 40X20MM 12VDC WIRE |
2,347 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.0dB(A) | 650 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CBM-4010C-150-227-20FAN BLOWER 39.5X10MM 12VDC WIRE |
3,588 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 22.8dB(A) | 1.08 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015C-145-176-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
2,900 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 17.6dB(A) | 0.6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015C-175-287-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
4,734 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.7dB(A) | 1.2 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-02510BALW11FAN AXIAL 25X10MM 5VDC WIRE |
3,975 |
|
Datasheet |
|
FAD1-02510 | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 18.3dB(A) | 400 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-02510BAMW11FAN AXIAL 25X10MM 5VDC WIRE |
3,670 |
|
Datasheet |
|
FAD1-02510 | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 500 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-02510CAAW11FAN AXIAL 25X10MM 12VDC WIRE |
4,427 |
|
Datasheet |
|
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.065 in H2O (16.2 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 12.5dB(A) | 480 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-02510CALW11FAN AXIAL 25X10MM 12VDC WIRE |
3,125 |
|
Datasheet |
|
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.090 in H2O (22.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 18.3dB(A) | 840 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
FAD1-02510CAMW11FAN AXIAL 25X10MM 12VDC WIRE |
3,344 |
|
Datasheet |
|
FAD1-02510 | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.150 in H2O (37.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 720 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|

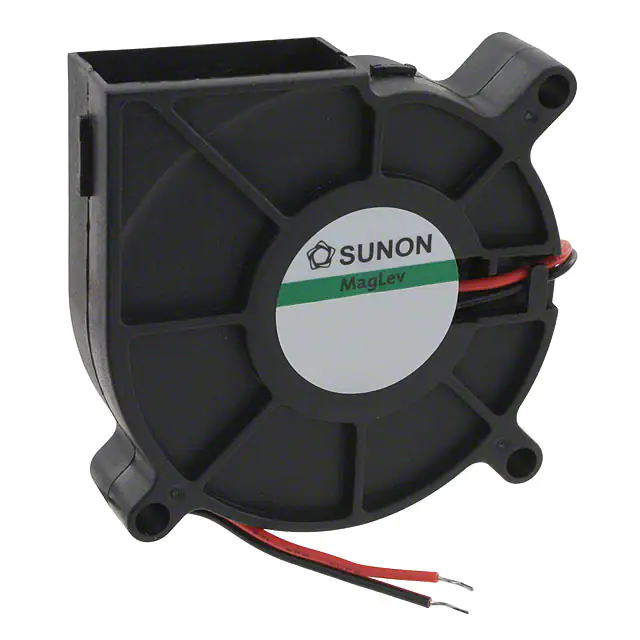

GB1206PHV1-AY.GNFAN BLOWER 60X15.4MM 12VDC WIRE |
2,346 |
|
Datasheet |
|
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.40mm | 5.2 CFM (0.146m³/min) | 0.440 in H2O (109.6 Pa) | Vapo-Bearing™ | Blower | - | 40.5dB(A) | 1.3 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.099 lb (44.91 g) |
|
|
EF92251S3-1000U-G9912VDC FAN 92X25MM ALARM |
2,697 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.96 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251S1-1000U-G9912VDC FAN 92X25MM ALARM |
4,445 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251S2-1000U-G9912VDC FAN 92X25MM ALARM |
3,138 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.32 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
HA92251V4-000U-999FAN AXIAL 92X25MM 12VDC WIRE |
3,351 |
|
Datasheet |
|
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.1 CFM (0.787m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | - | 17.7dB(A) | 900 mW | 1700 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.039 lb (17.69 g) |
|
|
CBM-5015CF-155-391-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,342 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 39.2dB(A) | 1.8 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
