DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CBM-5015CF-055-391-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,655 |
|
Datasheet |
 |
CBM-50CF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 39.2dB(A) | 1.5 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF60252S1-1000U-G9924VDC FAN 60X25MM ALARM |
4,248 |
|
Datasheet |
|
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
KDE1205PFVX.11.MS.A.GNFAN AXIAL 50X10MM 12VDC WIRE |
2,279 |
|
Datasheet |
|
MagLev® KDE | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 15.2 CFM (0.426m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 35.0dB(A) | 2 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.044 lb (19.96 g) |
|

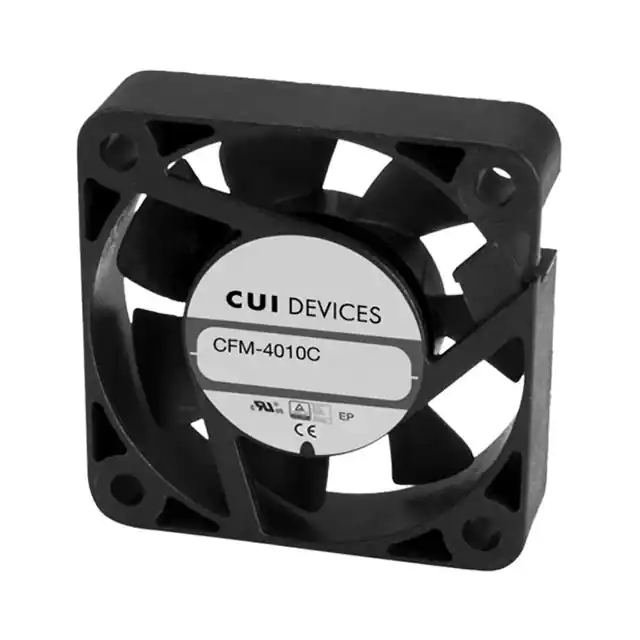

CFM-4010C-065-251-22FAN AXIAL 40X10.5MM 5VDC WIRE |
2,647 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.1dB(A) | 850 mW | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4010C-150-195-22FAN AXIAL 40X10.5MM 12VDC WIRE |
4,396 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 19.5dB(A) | 600 mW | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4010C-050-195-22FAN AXIAL 40X10.5MM 5VDC WIRE |
3,044 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 19.5dB(A) | 400 mW | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4010C-165-251-22FAN AXIAL 40X10.5MM 12VDC WIRE |
3,030 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.1dB(A) | 720 mW | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
KD2406PHB2FAN AXIAL 60X15.5MM 24VDC WIRE |
4,018 |
|
Datasheet |
|
KD | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 18.5 CFM (0.518m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 1.9 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.099 lb (44.91 g) |
|
AUB0412HDYFMFAN AXIAL 40X20MM 12VDC WIRE |
3,003 |
|
Datasheet |
|
AUB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.166 in H2O (41.3 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 960 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, VDE | 0.073 lb (33.11 g) |
|
|
04015SS-24M-AT-00FAN AXIAL 40X15MM 24VDC WIRE |
3,956 |
|
- |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 7300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-12M-AT-00FAN AXIAL 40X15MM 12VDC WIRE |
2,774 |
|
- |
|
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 600 mW | 7300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-24L-AT-00FAN AXIAL 40X15MM 24VDC WIRE |
3,002 |
|
- |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 600 mW | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-12M-AL-00FAN AXIAL 40X15MM 12VDC WIRE |
4,684 |
|
- |
|
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 600 mW | 7300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-12L-AT-00FAN AXIAL 40X15MM 12VDC WIRE |
3,420 |
|
- |
|
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 480 mW | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-24L-AL-00FAN AXIAL 40X15MM 24VDC WIRE |
4,044 |
|
- |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB(A) | 600 mW | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-24M-AL-00FAN AXIAL 40X15MM 24VDC WIRE |
4,961 |
|
- |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 960 mW | 7300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-05M-AL-00FAN AXIAL 40X15MM 5VDC WIRE |
4,674 |
|
- |
|
04015SS | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 650 mW | 7300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-05N-AT-00FAN AXIAL 40X15MM 5VDC WIRE |
3,489 |
|
- |
|
04015SS | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB | 900 mW | 8300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-7015C-250-406DC AXIAL FAN, 70 MM SQUARE, 15 M |
4,422 |
|
Datasheet |
|
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 40.6dB(A) | 4.08 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KDE1209PTB1-6AFFAN AXIAL 92X25MM 12VDC WIRE |
3,642 |
|
Datasheet |
|
KDE | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 2.3 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
