DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6020V-131-210-11FAN AXIAL 60X20MM 12VDC WIRE |
3,883 |
|
Datasheet |
 |
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 580 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6020V-142-280-11FAN AXIAL 60X20MM 12VDC WIRE |
3,765 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 900 mW | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6020V-150-335-11FAN AXIAL 60X20MM 12VDC WIRE |
2,176 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.5dB(A) | 1.38 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6020V-157-390-11FAN AXIAL 60X20MM 12VDC WIRE |
3,584 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 25.6 CFM (0.717m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.0dB(A) | 1.97 W | 5700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6025V-131-167-11FAN AXIAL 60X25MM 12VDC WIRE |
3,391 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.7dB(A) | 640 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-138-220-11FAN AXIAL 60X25MM 12VDC WIRE |
4,202 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 1 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-145-270-11FAN AXIAL 60X25MM 12VDC WIRE |
2,838 |
|
Datasheet |
|
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.05 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
M5210E12C-RSFAN AXIAL 52X10MM 12VDC WIRE |
2,581 |
|
Datasheet |
|
M5210 | Bulk | Obsolete | 12VDC | Square - 52mm L x 52mm H | 10.00mm | 11.3 CFM (0.316m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.044 lb (19.96 g) |
|
CFM-4020V-270-255-11FAN AXIAL 40X20MM 24VDC WIRE |
2,394 |
|
Datasheet |
|
CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 940 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-280-275-11FAN AXIAL 40X20MM 24VDC WIRE |
2,227 |
|
Datasheet |
|
CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB(A) | 1.08 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-4010B-050-195-20FAN AXIAL 40X10.5MM 5VDC WIRE |
4,949 |
|
Datasheet |
|
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.5dB(A) | 400 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6015V-239-292FAN AXIAL 60X15MM 24VDC WIRE |
4,070 |
|
Datasheet |
|
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 29.2dB(A) | 1.16 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
|
MF60151V1-1000U-F9912VDC FAN 60X15MM TACH |
3,501 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.2dB(A) | 1.53 W | 4700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V3-1000U-F9912VDC FAN 60X15MM TACH |
3,294 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.3dB(A) | 0.58 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151VX-1000U-F9912VDC FAN 60X15MM TACH |
3,968 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 30.4 CFM (0.851m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.2dB(A) | 2.22 W | 5400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V2-1000U-F9912VDC FAN 60X15MM TACH |
4,957 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.8 CFM (0.638m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.2dB(A) | 0.82 W | 3900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CFM-6025V-231-167FAN AXIAL 60X25MM 24VDC WIRE |
4,884 |
|
Datasheet |
|
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.7dB(A) | 680 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
EE92251B3-000U-999FAN AXIAL 92X25MM 12VDC WIRE |
3 |
|
Datasheet |
|
EE | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.3 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|

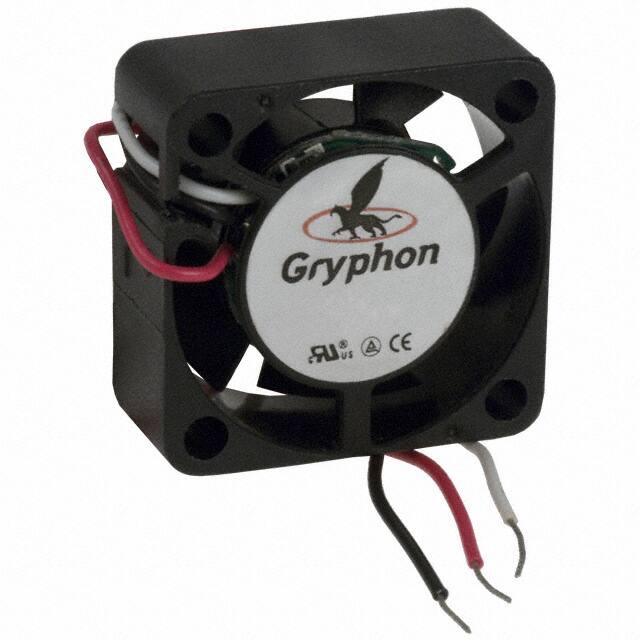

GDA2510-12BBFAN AXIAL 25X10MM 12VDC WIRE |
4,549 |
|
Datasheet |
|
Gryphon | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 27.4dB(A) | 1.2 W | 13000 RPM | 3 Wire Leads | - | - | - | 0.016 lb (7.26 g) |
|
|
CBM-5015CF-135-293-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,093 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.4dB(A) | 600 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
