DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CBM-5015CF-145-348-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,817 |
|
Datasheet |
 |
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | omniCOOL™ Magnetic Sleeve | Blower | PWM Control, Speed Sensor (Tach) | 34.8dB(A) | 1.44 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-035-293-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,806 |
|
Datasheet |
|
CBM-50CF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.3dB(A) | 700 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020C-145-305-22DC BLOWER, 40 MM SQUARE, 20 MM, |
3,579 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.0 CFM (0.056m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 30.5dB(A) | 0.48 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020C-130-216-22DC BLOWER, 40 MM SQUARE, 20 MM, |
4,475 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 1.3 CFM (0.036m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.6dB(A) | 0.24 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-275-416-22DC AXIAL FAN, 50 MM SQUARE, 20 M |
3,640 |
|
Datasheet |
|
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 22.8 CFM (0.638m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.6dB(A) | 2.64 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020C-260-367-22DC AXIAL FAN, 50 MM SQUARE, 20 M |
2,776 |
|
Datasheet |
|
CFM-50C | Box | Active | 24VDC | Square - 50mm L x 50mm H | 19.80mm | 18.2 CFM (0.510m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.7dB(A) | 1.68 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3510CF-160-188-20FAN AXIAL 35X10.3MM 12VDC WIRE |
3,958 |
|
- |
|
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.8dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
.F.GN.JPG)
|

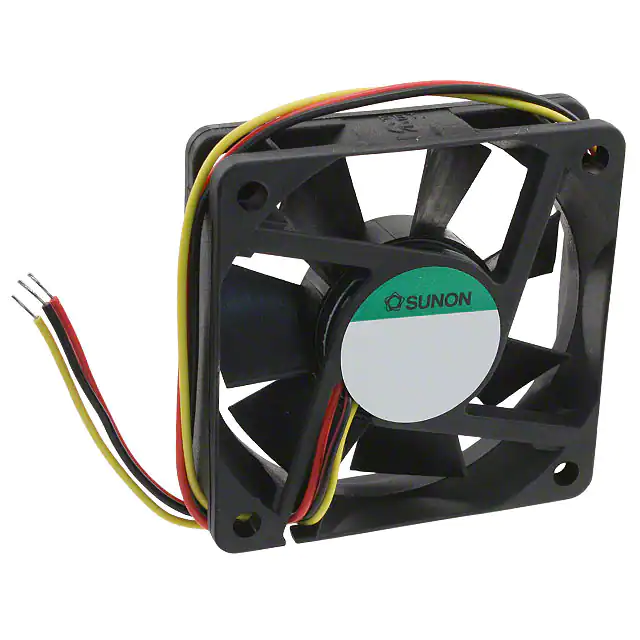

KD1206PHB1 (2).F.GNFAN AXIAL 60X15MM 12VDC WIRE |
3,462 |
|
Datasheet |
|
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.9 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.092 lb (41.73 g) |
|
|
CBM-7530CF-140-454-20DC BLOWER, 75.7 X 75.7 X 30 MM, |
3,439 |
|
Datasheet |
|
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 48.1dB(A) | 4.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB02512HHAFAN AXIAL 25X10MM 12VDC WIRE |
4,805 |
|
Datasheet |
|
AFB | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 960 mW | 13000 RPM | 2 Wire Leads | - | - | - | 0.024 lb (10.89 g) |
|
MF92251V1-1000U-G99FAN AXIAL 92X25MM 12VDC WIRE |
2,711 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF92251V2-1000U-G9912VDC FAN 92X25MM ALARM |
3,138 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.26 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF92251V3-1000U-G9912VDC FAN 92X25MM ALARM |
2,557 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.9 W | 2400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
2410SB-04W-B20-E00FAN AXIAL 60X25MM 12VDC WIRE |
4,369 |
|
Datasheet |
|
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | - | 17.0dB(A) | 720 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B30-E00FAN AXIAL 60X25MM 12VDC WIRE |
3,179 |
|
Datasheet |
|
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 22.5dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B40-E00FAN AXIAL 60X25MM 12VDC WIRE |
3,785 |
|
Datasheet |
|
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B50-E00FAN AXIAL 60X25MM 12VDC WIRE |
4,389 |
|
Datasheet |
|
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B20-E00FAN AXIAL 60X25MM 24VDC WIRE |
2,591 |
|
Datasheet |
|
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | - | 17.0dB(A) | 720 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B30-E00FAN AXIAL 60X25MM 24VDC WIRE |
3,785 |
|
Datasheet |
|
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 22.5dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B50-E00FAN AXIAL 60X25MM 24VDC WIRE |
3,153 |
|
Datasheet |
|
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.92 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
