DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF50152VX-1000U-G9924VDC FAN 50X15MM ALARM |
3,768 |
|
Datasheet |
 |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.1dB(A) | 1.32 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50152V2-1000U-G9924VDC FAN 50X15MM ALARM |
2,176 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 0.65 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

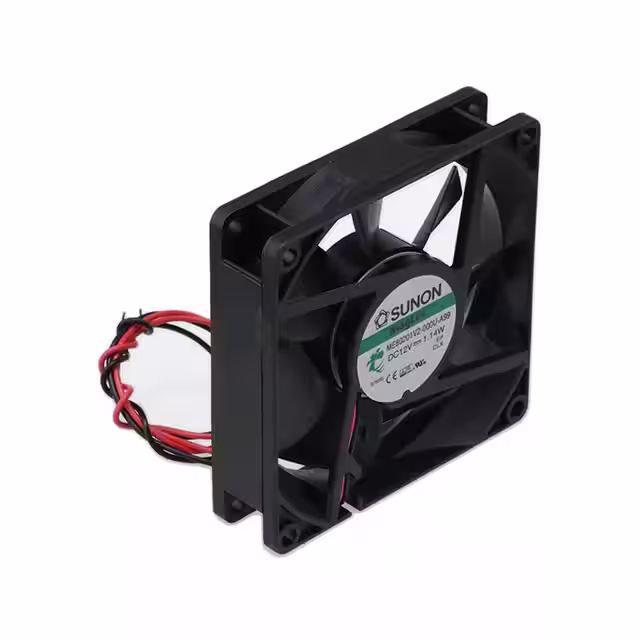

ME80201V2-000U-A99FAN AXIAL 80X20MM 12VDC WIRE |
3,571 |
|
Datasheet |
|
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 33.0 CFM (0.924m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 35.0dB(A) | 1.14 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.146 lb (66.22 g) |
|
ME70151V3-000U-A99FAN AXIAL 70X15MM 12VDC WIRE |
3,331 |
|
Datasheet |
|
MagLev® ME | Bulk | Not For New Designs | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.5dB(A) | 570 mW | 2300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
CFM-6025V-238-220FAN AXIAL 60X25MM 24VDC WIRE |
3,940 |
|
Datasheet |
|
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 920 mW | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-245-270FAN AXIAL 60X25MM 24VDC WIRE |
4,707 |
|
Datasheet |
|
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
CFM-A225C-015-287FAN AXIAL 120X25.4MM 5VDC WIRE |
3,717 |
|
Datasheet |
|
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 52.2 CFM (1.46m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 24.8dB(A) | 1.2 W | 1500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015CF-130-224-22FAN AXIAL 50X15.5MM 12VDC WIRE |
2,465 |
|
Datasheet |
|
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 7.8 CFM (0.218m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.4dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5015CF-145-312-22FAN AXIAL 50X15.5MM 12VDC WIRE |
2,173 |
|
Datasheet |
|
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 11.7 CFM (0.328m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 31.3dB(A) | 1.08 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-155-391-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
4,467 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | PWM Control, Speed Sensor (Tach) | 39.2dB(A) | 1.8 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015CF-055-391-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
4,819 |
|
Datasheet |
|
CBM-50CF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 39.2dB(A) | 1.5 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4020C-160-367-22DC BLOWER, 40 MM SQUARE, 20 MM, |
2,695 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.7 CFM (0.076m³/min) | 0.190 in H2O (47.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 36.7dB(A) | 0.96 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
ME70151V1-000U-A99FAN AXIAL 70X15MM 12VDC WIRE |
3,017 |
|
Datasheet |
|
MagLev® ME | Bulk | Not For New Designs | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.0 CFM (0.756m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 31.5dB(A) | 1.36 W | 3300 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
|
MF70151V1-1000U-A99FAN AXIAL 12VDC 70X15MM |
2,001 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF70151V2-1000U-A99FAN AXIAL 12VDC 70X15MM |
4,952 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF70151V3-1000U-A99FAN AXIAL 12VDC 70X15MM |
4,760 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-8015V-224-308FAN AXIAL 80X15MM 24VDC WIRE |
3,946 |
|
Datasheet |
|
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.8dB(A) | 1.56 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-8015V-227-320FAN AXIAL 80X15MM 24VDC WIRE |
3,449 |
|
Datasheet |
|
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 32.0dB(A) | 1.8 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-2006CF-1100-189-20DC AXIAL FAN, 20 MM SQUARE, 6 MM |
3,404 |
|
Datasheet |
|
CFM-20CF | Box | Active | 12VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.600 CFM (0.017m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.9dB(A) | 600 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2006CF-160-078-20DC AXIAL FAN, 20 MM SQUARE, 6 MM |
4,675 |
|
Datasheet |
|
CFM-20CF | Box | Active | 12VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.330 CFM (0.009m³/min) | 0.020 in H2O (4.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 7.9dB(A) | 370 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
