DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225SA-24N-ET-D0FAN AXIAL 92X25MM 24VDC WIRE |
588 |
|
Datasheet |
 |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-04010BBHW11FAN AXIAL 40X10MM BALL 5VDC WIRE |
530 |
|
Datasheet |
|
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.2 CFM (0.174m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 800 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
|
FAD1-04010CBHW11FAN AXIAL 40X10MM 12VDC WIRE |
510 |
|
Datasheet |
|
FAD1-04010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.2 CFM (0.174m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 1.08 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
|
CFM-2507CF-170-163-22DC AXIAL FAN, 25 MM SQUARE, 7 MM |
125 |
|
Datasheet |
|
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 1.5 CFM (0.042m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 16.3dB(A) | 720 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2006CF-060-078-22DC AXIAL FAN, 20 MM SQUARE, 6 MM |
114 |
|
Datasheet |
|
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.330 CFM (0.009m³/min) | 0.020 in H2O (4.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.9dB(A) | 300 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-085-295DC BLOWER, 35 MM SQUARE, 10 MM, |
112 |
|
Datasheet |
|
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 1.1 CFM (0.031m³/min) | 0.500 in H2O (124.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.9 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-04010BBMW11FAN AXIAL 40X10MM BALL 5VDC WIRE |
702 |
|
Datasheet |
|
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.0 CFM (0.140m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 550 mW | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|

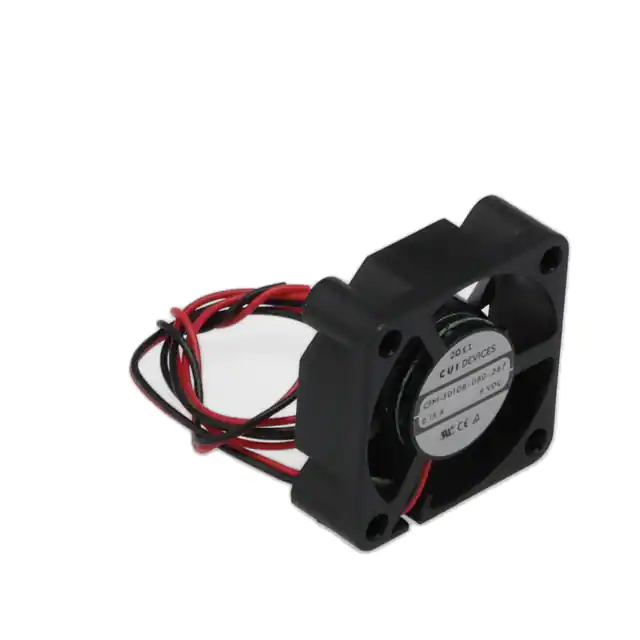

CFM-3010B-080-267FAN AXIAL 30X10.5MM 5VDC WIRE |
501 |
|
Datasheet |
|
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart | 26.8dB(A) | 850 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MF60151V1-1000U-A99FAN AXIAL 60X15MM 12VDC WIRE |
296 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.2dB(A) | 1.53 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) |
|
CFM-6015V-147-342-20FAN AXIAL 60X15MM 12VDC WIRE |
3,815 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 1.77 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
|
CFM-6015V-122-145-20FAN AXIAL 60X15MM 12VDC WIRE |
1,130 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 14.5dB(A) | 350 mW | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|

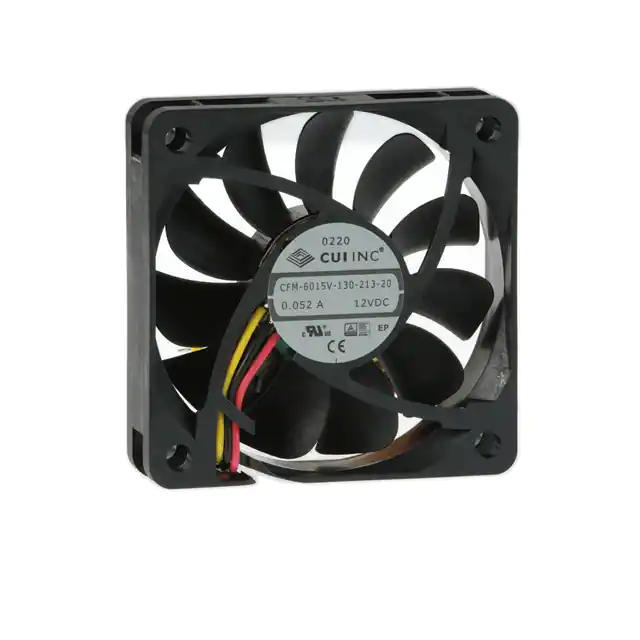

CFM-6015V-130-213-20FAN AXIAL 60X15MM 12VDC WIRE |
506 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 700 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|
|
CBM-5015CF-175-459-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
605 |
|
Datasheet |
|
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Speed Sensor (Tach) | 45.9dB(A) | 3.96 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025C-235-364-20FAN AXIAL 80X25MM 24VDC WIRE |
340 |
|
Datasheet |
|
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.4dB(A) | 3.6 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0412H602FAN AXIAL 40X20MM 12VDC WIRE |
489 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.32 W | 8000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
CFM-3510BF-160-188-20FAN AXIAL 35X10.3MM 12VDC WIRE |
246 |
|
Datasheet |
|
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.8dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020V-150-165-20FAN AXIAL 40X20MM 12VDC WIRE |
1,352 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.5dB(A) | 560 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
FAD1-08025DBLW11-AFAN AXIAL 80X25MM 24VDC WIRE |
282 |
|
Datasheet |
|
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 24.4 CFM (0.683m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | - | 23.6dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
109R0812S4011FAN AXIAL 80X25MM 12VDC WIRE |
3,898 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
MF40200V2-1000U-A99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
3,390 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 540 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.064 lb (29.03 g) |
