DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

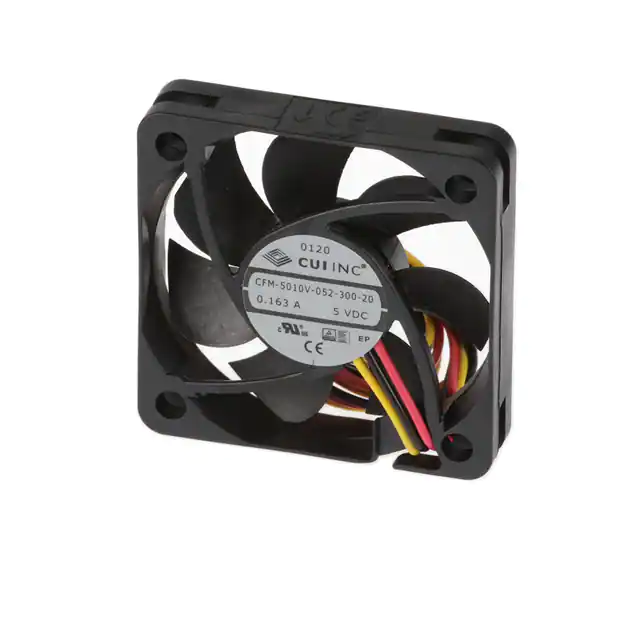

CFM-5010V-052-300-20FAN AXIAL 50X10MM 5VDC WIRE |
1,940 |
|
Datasheet |
 |
CFM-50V | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 13.8 CFM (0.386m³/min) | 0.150 in H2O (37.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.7dB(A) | 1.5 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|
CFM-5010V-043-260-20FAN AXIAL 50X10MM 5VDC WIRE |
1,170 |
|
Datasheet |
|
CFM-50V | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 0.49 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|
CFM-4010V-058-206-20FAN AXIAL 40X10MM 5VDC WIRE |
759 |
|
Datasheet |
|
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.6dB(A) | 550 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|

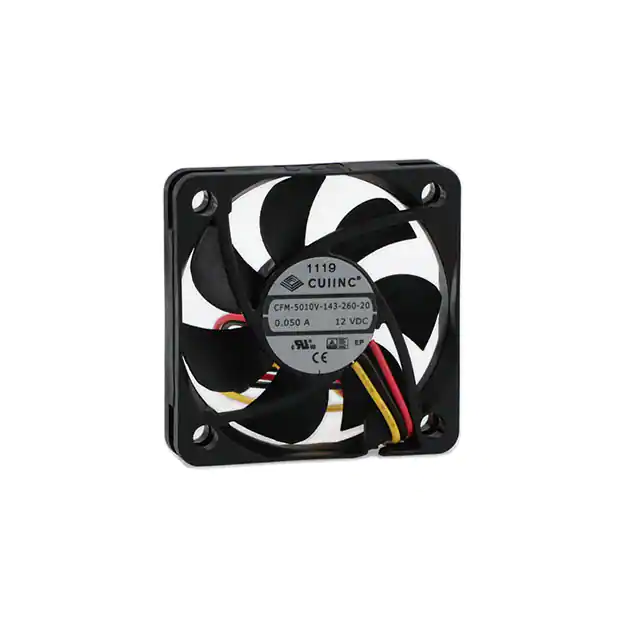

CFM-5010V-143-260-20FAN AXIAL 50X10MM 12VDC WIRE |
471 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 0.7 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|

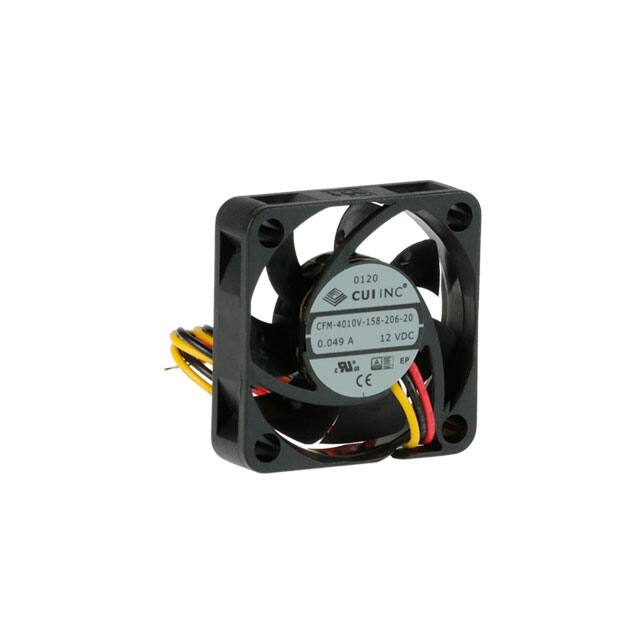

CFM-4010V-158-206-20FAN AXIAL 40X10MM 12VDC WIRE |
406 |
|
Datasheet |
|
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.6dB(A) | 580 mW | 5800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|
ASB0305HA-DF00FAN AXIAL 30X10MM 5VDC WIRE |
1,254 |
|
Datasheet |
|
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 700 mW | 10500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
MF50151V1-1000U-F99FAN AXIAL 50X15MM 12VDC WIRE |
1,052 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 870 mW | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
|
CFM-8025V-129-300-20FAN AXIAL 80X25MM 12VDC WIRE |
1,900 |
|
Datasheet |
|
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.28 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
CFM-6025V-125-107-20FAN AXIAL 60X25MM 12VDC WIRE |
346 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.8 CFM (0.386m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.7dB(A) | 320 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-145-270FAN AXIAL 60X25MM 12VDC WIRE |
998 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.05 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
FAD1-08025CBAW11-AFAN AXIAL 80X25MM 12VDC WIRE |
539 |
|
Datasheet |
|
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.046 in H2O (11.4 Pa) | Ball | Tubeaxial | - | 18.3dB(A) | 720 mW | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
CFM-2507CF-1140-313DC AXIAL FAN, 25 MM SQUARE, 7 MM |
190 |
|
Datasheet |
|
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 3.1 CFM (0.087m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | - | 31.4dB(A) | 2.04 W | 14000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF92252V3-1000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
3,802 |
|
Datasheet |
|
MagLev® MF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 1.01 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.203 lb (92.08 g) |
|
EF92251S1-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
3,643 |
|
Datasheet |
|
EF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 1.68 W | 3000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.203 lb (92.08 g) |
|
|
CFM-2507CF-1100-240-20DC AXIAL FAN, 25 MM SQUARE, 7 MM |
267 |
|
Datasheet |
|
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Speed Sensor (Tach) | 24.1dB(A) | 1.32 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020CF-275-306FAN AXIAL 40X20MM 24VDC WIRE |
304 |
|
Datasheet |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.6dB(A) | 1.92 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
04015SS-24N-AA-00FAN AXIAL 40X15MM 24VDC WIRE |
301 |
|
Datasheet |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 32.0dB | 1.2 W | 8300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04015SS-12L-AA-00FAN AXIAL 40X15MM 12VDC WIRE |
167 |
|
Datasheet |
|
04015SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 26.0dB | 480 mW | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04015SS-24L-AA-00FAN AXIAL 40X15MM 24VDC WIRE |
409 |
|
Datasheet |
|
04015SS | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 26.0dB | 600 mW | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
ASB0305MA-DF00FAN AXIAL 30X10MM 5VDC WIRE |
2,133 |
|
Datasheet |
|
ASB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 550 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.017 lb (7.71 g) |
