DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0702548M2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
4,077 |
|
Datasheet |
 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 4.32 W | 3600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702524U2B-BT4FAN 70X25MM 24VDC PWM/TACH MOLEX |
4,434 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 6.48 W | 5500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922512U2B-2T2FAN 92X25MM 12VDC MOLEX 22-01-10 |
4,939 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3.6 W | 3800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0301012U2B-2T2FAN 30X10MM 12VDC MOLEX 22-01-10 |
3,396 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.08 W | 11000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9232B-230-398-20FAN AXIAL 92.2X32MM 24VDC WIRE |
3,162 |
|
Datasheet |
|
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.9dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9232B-130-398-20FAN AXIAL 92.2X32MM 12VDC WIRE |
3,620 |
|
Datasheet |
|
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.9dB(A) | 3.84 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3828BF-1235-614-20FAN AXIAL 38X28MM 12VDC WIRE |
3,614 |
|
Datasheet |
|
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 22.1 CFM (0.619m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.4dB(A) | 15.36 W | 23500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0251012L2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
2,213 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 600 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
DC0251012M2B-BT0FAN AXIAL 25X10MM 12VDC WIRE |
4,220 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
DC0251005M2B-3T0FAN 25X10MM 5VDC TACH |
3,463 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 300 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0251005L2B-3T0FAN 25X10MM 5VDC TACH |
2,655 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 250 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
AFB0724LB-F00FAN AXIAL 70X15MM 24VDC WIRE |
3,883 |
|
Datasheet |
|
AFB | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 23.4 CFM (0.655m³/min) | 0.089 in H2O (22.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.5dB(A) | 1.44 W | 2800 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
DC0801524U2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
3,452 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 11.52 W | 4500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524H2B-BT4FAN 80X15MM 24VDC PWM/TACH MOLEX |
3,611 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 3600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
MS2006M05D-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
2,701 |
|
Datasheet |
|
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
CFM-A238V-121-370FAN AXIAL 120X38MM 12VDC WIRE |
3,669 |
|
Datasheet |
|
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 37.0dB(A) | 3.33 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
BFB0512VHD-SP01FAN BLOWER 52.1X31.5MM 12VDC |
2,243 |
|
Datasheet |
|
BFB | Box | Obsolete | 12VDC | Square/Rounded - 52.1mm L x 53.3mm H | 31.50mm | 6.1 CFM (0.171m³/min) | 0.644 in H2O (160.4 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.4 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|

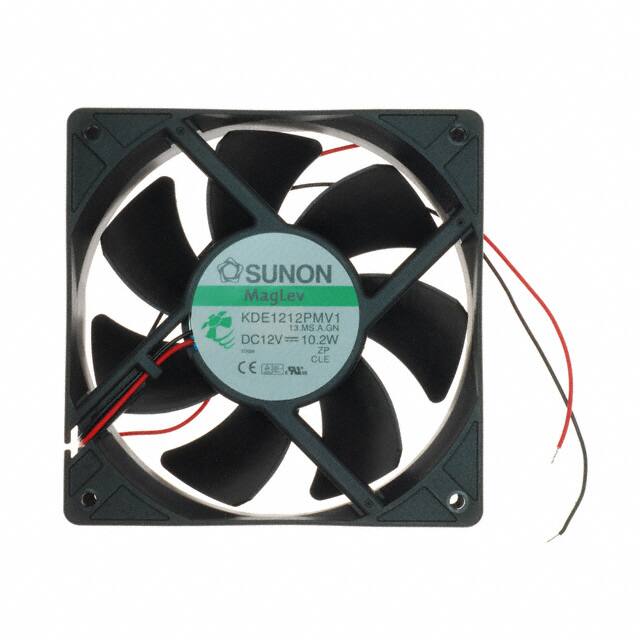

KDE1212PMV1.13.MS.A.GNFAN AXIAL 120X38MM 12VDC WIRE |
4,207 |
|
Datasheet |
|
MagLev® KDE | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 10.2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.661 lb (299.82 g) |
|
|
DC0602512L2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
3,306 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.44 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512M2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
4,910 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.8 W | 4250 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
