DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF40060V1-1000U-F995VDC FAN 40X6MM TACH |
3,397 |
|
Datasheet |
 |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.3dB(A) | 0.44 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF40060V1-1000U-S995VDC FAN 40X6MM TACH/PWM |
2,108 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.3dB(A) | 0.44 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
OD9225-24LBFAN AXIAL 92.5X25MM 24VDC WIRE |
4,349 |
|
Datasheet |
|
OD9225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
04028DA-12N-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
4,424 |
|
- |
|
04028DA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04028DA-12P-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
4,071 |
|
- |
|
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB | 2.16 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04028DA-12L-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
2,083 |
|
- |
|
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.4 CFM (0.375m³/min) | 0.387 in H2O (96.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.0dB | 1.68 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04028DA-12M-ATF-0FAN AXIAL 40X28MM 12VDC WIRE |
2,202 |
|
- |
|
04028DA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 17.0 CFM (0.476m³/min) | 0.587 in H2O (146.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB | 3.12 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0301005H2B-3T0FAN 30X10MM 5VDC TACH |
2,760 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 350 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005H2B-BT0FAN 30X10MM 5VDC PWM/TACH |
2,195 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | 350 mW | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005L2B-BT0FAN 30X10MM 5VDC PWM/TACH |
3,695 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 17.0dB(A) | 150 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0301005M2B-BT0FAN 30X10MM 5VDC PWM/TACH |
3,889 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 250 mW | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
B.jpg)
|
CFM-A225B-125-398-22FAN AXIAL 120X25.4MM 12VDC WIRE |
3,363 |
|
Datasheet |
|
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 87.0 CFM (2.44m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.7dB(A) | 4.92 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225B-020-350-22FAN AXIAL 120X25.4MM 5VDC WIRE |
3,144 |
|
Datasheet |
|
CFM-120B | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 2.85 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
04028DA-12P-ALF-0DC AXIAL FAN |
3,633 |
|
Datasheet |
|
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.2 CFM (0.370m³/min) | 0.923 in H2O (230.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.0dB | 2.16 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
PMD4808PTB1-A.(2).GNFAN AXIAL 80X25MM 48VDC WIRE |
3,733 |
|
- |
|
PMD | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 6.2 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
PMD4809PTB1-A.(2).GNFAN AXIAL 92X25MM 48VDC WIRE |
2,765 |
|
Datasheet |
|
PMD | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 6.7 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
(9238S).jpg)
|

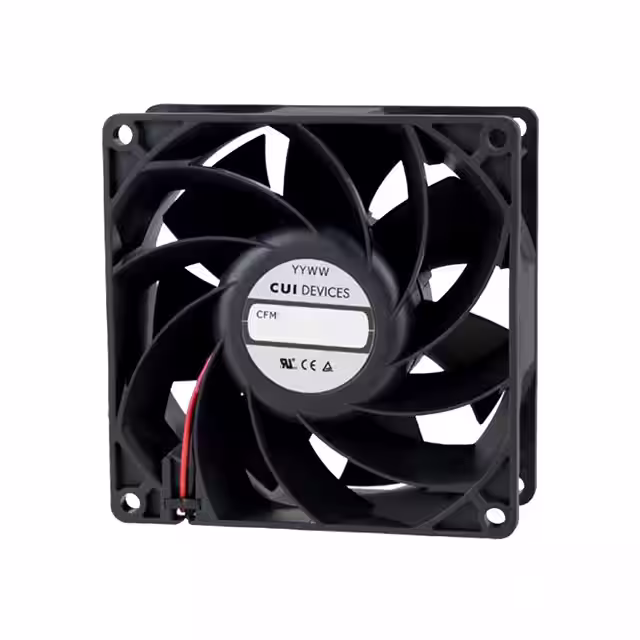

CFM-9225B-230-356-22FAN AXIAL 92X25MM 24VDC WIRE |
3,627 |
|
Datasheet |
|
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.6dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225B-220-269-22FAN AXIAL 92X25MM 24VDC WIRE |
4,838 |
|
Datasheet |
|
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.9dB(A) | 1.2 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225B-225-317-22FAN AXIAL 92X25MM 24VDC WIRE |
2,314 |
|
Datasheet |
|
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.7dB(A) | 1.92 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(9232B)(9238B).jpg)
|
CFM-9225B-130-356-22FAN AXIAL 92X25MM 12VDC WIRE |
4,051 |
|
Datasheet |
|
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.6dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
