DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GFB1212VHWFAN AXIAL DUAL 120X76.2MM 12VDC Delta Electronics |
3,293 |
|
Datasheet |
 |
GFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.20mm | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 59.0dB(A) | 31.8 W | 3550 Front, 3200 Rear | 2 Wire Leads per Fan | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
BFB1212EH-TP34FAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
3,486 |
|
Datasheet |
|
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 54.9 CFM (1.54m³/min) | 3.485 in H2O (868.1 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 28.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|

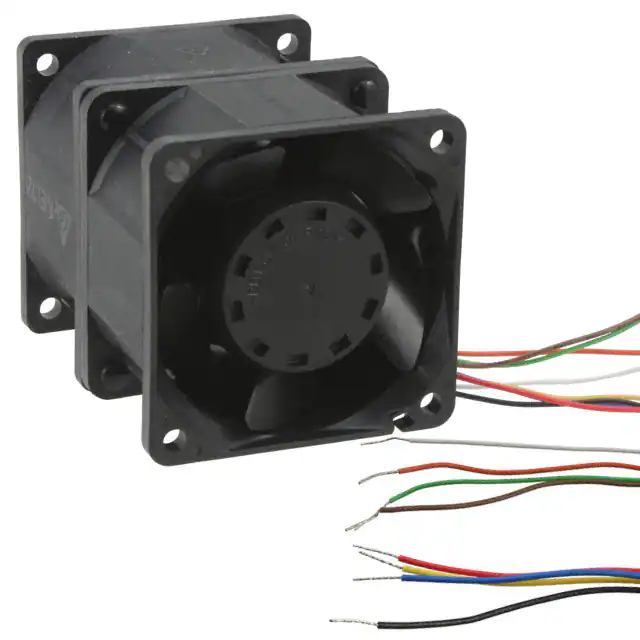

GFC0612DW-F00FAN AXIAL DUAL 60X76MM 12VDC Delta Electronics |
2,982 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 69.7 CFM (1.95m³/min) | 2.690 in H2O (670.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.2dB(A) | 28.8 W | 13300 Front, 9600 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.617 lb (280.00 g) |
|
1-NPT/603-1469FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
4,698 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
FFB1224SHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,214 |
|
Datasheet |
|
FFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.5dB(A) | 19.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
BFB1224VH-AF00FAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
2,204 |
|
Datasheet |
|
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 42.5 CFM (1.19m³/min) | 1.848 in H2O (460.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 16.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
FFB1224HH-T500FAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
3,309 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.7dB(A) | 6.72 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
PFB0912UHE-T500FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
2,685 |
|
Datasheet |
|
PFB | Box | Not For New Designs | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 23.5 W | 7000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
BFB1248HH-TP21FAN BLOWER 120X32MM 48VDC WIRE Delta Electronics |
2,359 |
|
Datasheet |
|
BFB | Box | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 12 W | 2800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|

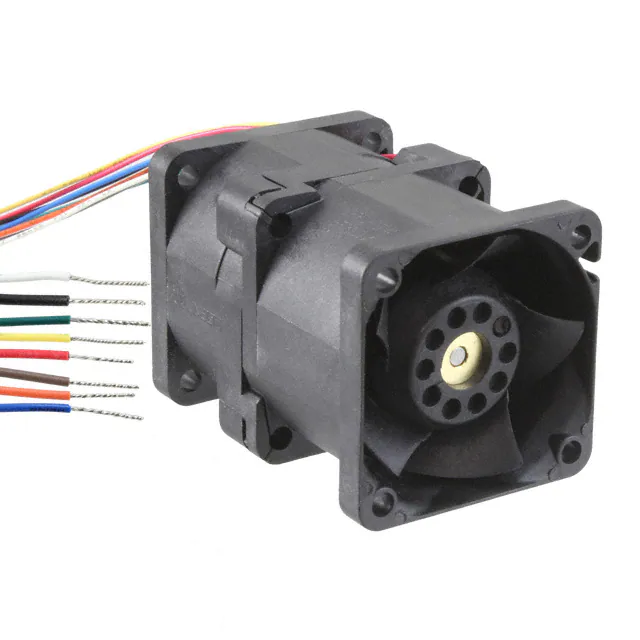

GFM0412SS-BL4FFAN AXIAL DUAL 40X56MM 12VDC Delta Electronics |
4,345 |
|
Datasheet |
|
GFM | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.1 CFM (0.759m³/min) | 2.230 in H2O (555.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 9.6 W | 17200 Front, 14000 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | cULus, TUV | 0.183 lb (83.01 g) |
