DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

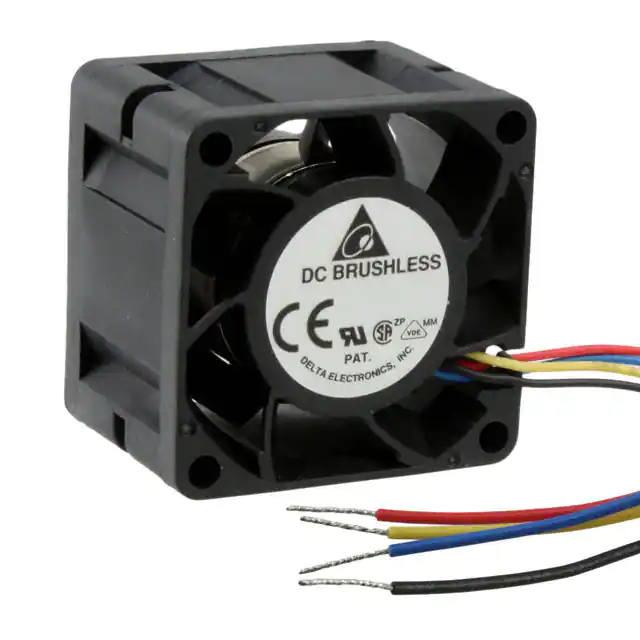

FFB03812VN-SPCFAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
249 |
|
Datasheet |
 |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.5dB(A) | 10.2 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.106 lb (48.08 g) |
|
AFB1224HHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
13,829 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

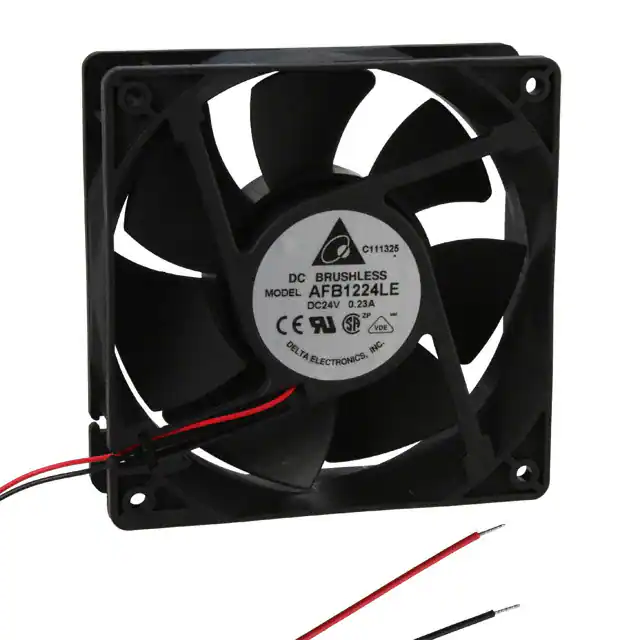

AFB1224LEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,354 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 3.6 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

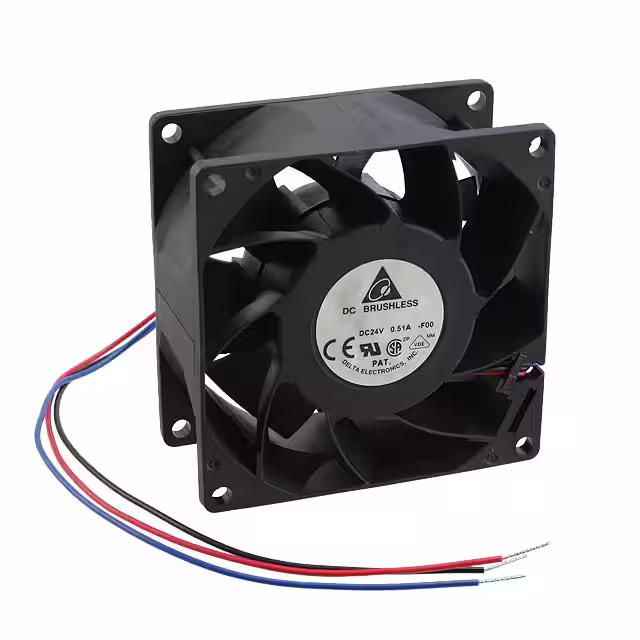

FFB0824SHE-F00FAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
154 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 8.16 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|

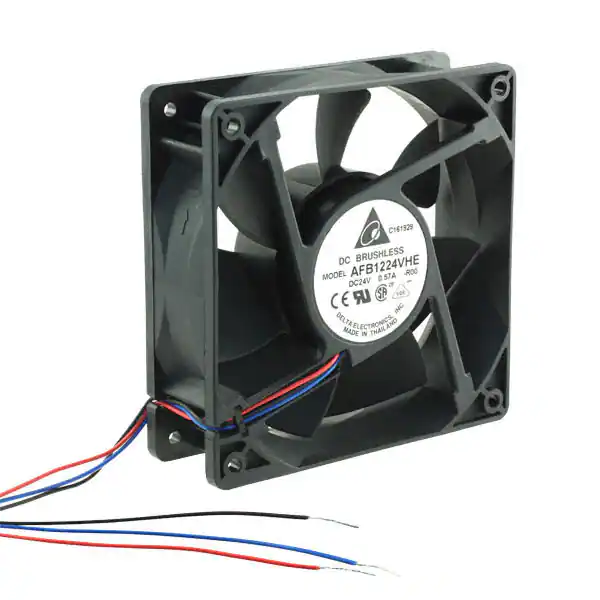

AFB1224VHE-R00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,183 |
|
Datasheet |
|
AFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 9.12 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1224SH-T500FAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
682 |
|
Datasheet |
|
AFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.72 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

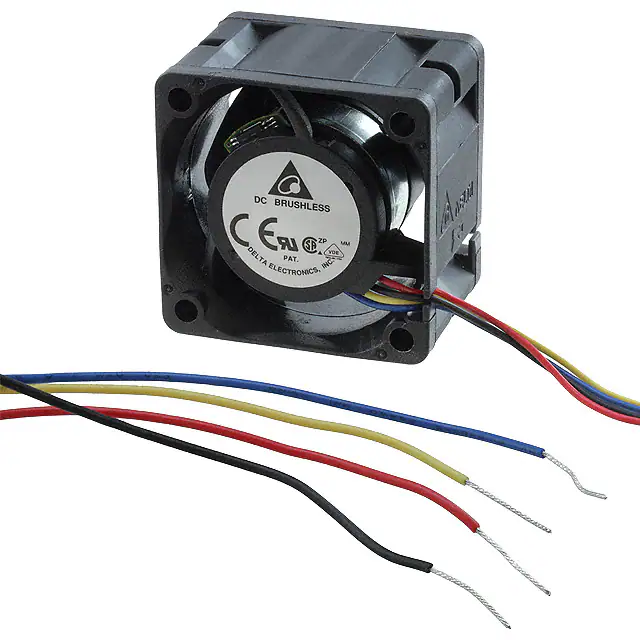

PFB0412EHN-TP06FAN AXIAL 40X28MM 12VDC WIRE Delta Electronics |
4,904 |
|
Datasheet |
|
PFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.8 CFM (0.610m³/min) | 1.431 in H2O (356.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.5dB(A) | 6 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
AFB0648SH-AFAN AXIAL 60X25.4MM 48VDC WIRE Delta Electronics |
1,791 |
|
Datasheet |
|
AFB | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 5.28 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
PFB0512EHF-R00FAN AXIAL 50X32MM 12VDC WIRE Delta Electronics |
237 |
|
Datasheet |
|
PFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 32.00mm | 31.6 CFM (0.885m³/min) | 1.051 in H2O (261.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.2dB(A) | 6.48 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB1212VHE-F00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
2,920 |
|
Datasheet |
|
AFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
