DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0405MA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
4,529 |
|
Datasheet |
 |
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.5dB(A) | 250 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0412MA-AF00FAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
4,483 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.5dB(A) | 360 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0405LA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
3,827 |
|
Datasheet |
|
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 16.0dB(A) | 150 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0412HA-AF00FAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
3,688 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 480 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0405HA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
4,957 |
|
Datasheet |
|
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 350 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
AFB0405VHA-AR00FAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
2,722 |
|
Datasheet |
|
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.5dB(A) | 550 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
EFB0505HA-R00FAN AXIAL 50X10MM BALL 5VDC WIRE Delta Electronics |
3,505 |
|
Datasheet |
|
EFB | Box | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 11.4 CFM (0.319m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
AFB0405HA-AFAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
3,022 |
|
Datasheet |
|
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 350 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|

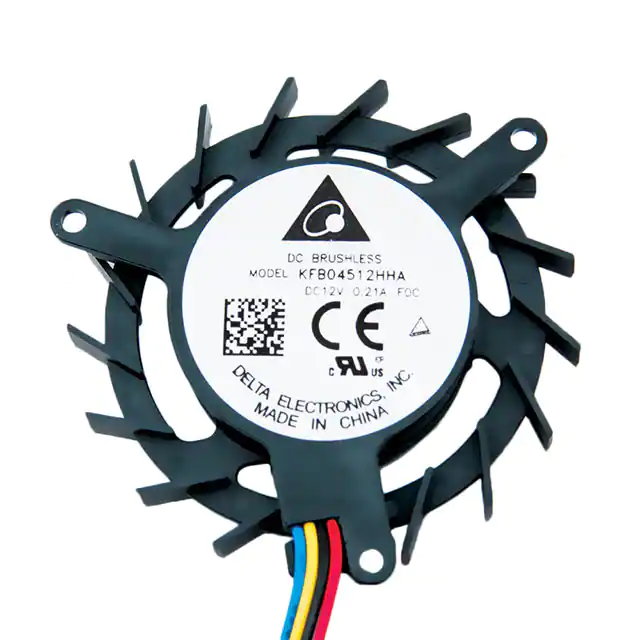

KFB04512HHAF0CFAN IMP MTR 49X10.8MM 12VDC Delta Electronics |
2,533 |
|
Datasheet |
|
KFB - Frameless | Box | Obsolete | 12VDC | Round - 49mm Dia | 10.80mm | 4.3 CFM (0.120m³/min) | 0.171 in H2O (42.6 Pa) | Ball | Motorized Impellers, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.5dB(A) | 2.16 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.034 lb (15.42 g) |
|

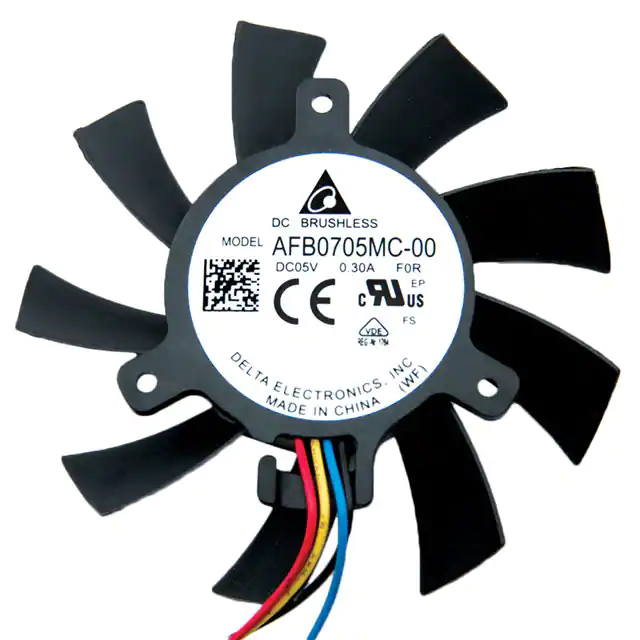

AFB0705MC-00F0RFAN AXL FRAMELSS 65.8X13MM 5VDC Delta Electronics |
4,390 |
|
Datasheet |
|
AFB - Frameless | Box | Active | 5VDC | Round - 65.8mm Dia | 13.00mm | 22.1 CFM (0.619m³/min) | 0.093 in H2O (23.2 Pa) | Ball | Tubeaxial, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.1dB(A) | 1.1 W | 2900 RPM | 4 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | CE, cURus, TUV | 0.057 lb (25.85 g) |
