DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

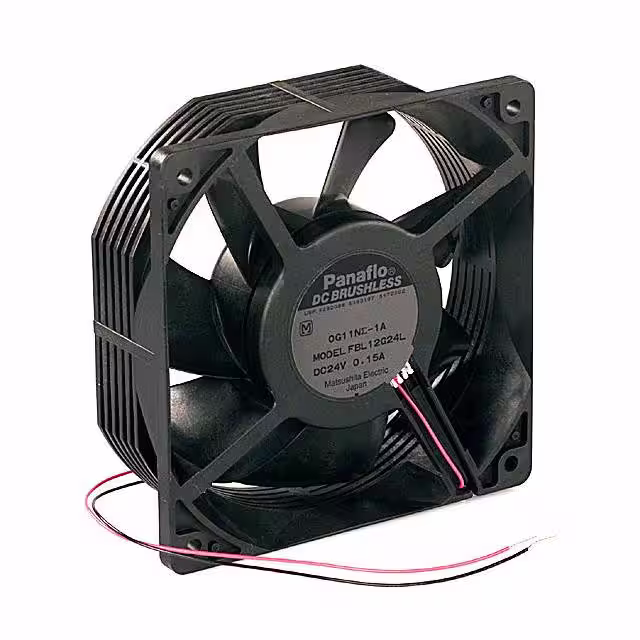

FBL12G24L1AFAN AXIAL 120X38MM 24VDC WIRE |
4,898 |
|
Datasheet |
 |
FBL | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 0.130 in H2O (32.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.3 W | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.595 lb (269.89 g) |
|
|
DC1202512V2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
2,986 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 7.8 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512M2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
4,234 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 5.76 W | 2800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512U2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
4,214 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 7.44 W | 3700 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512H2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
3,366 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 6 W | 3400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512L2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
2,188 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 2500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512J2B-2T2FAN 120X25MM 12VDC MOLEX 22-01-1 |
4,841 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 2100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD1225-12HB10AFAN AXIAL 120X25MM 12VDC WIRE |
3,643 |
|
Datasheet |
|
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 5.4 W | 3100 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-12MB01AFAN AXIAL 120X25MM 12VDC WIRE |
4,690 |
|
Datasheet |
|
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
9GA0412F6001FAN AXIAL 40X20MM 12VDC WIRE |
4,524 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 8000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.078 lb (35.38 g) |
|
|
9GA0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
3,550 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 1.68 W | 12400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.078 lb (35.38 g) |
|
AFB1224HH-BF00FAN AXIAL 120X25.4MM 24VDC WIRE |
2,178 |
|
Datasheet |
|
AFB | Bulk | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.5dB(A) | 4.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
DC0601524U2B-3T1FAN 60X15MM 24VDC TACH COMPUTER |
4,235 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 5000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922512J2B-3T1FAN 92X25MM 12VDC TACH COMPUTER |
3,646 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.08 W | 2100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512H2B-3T1FAN 92X25MM 12VDC TACH COMPUTER |
3,524 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.4 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512L2B-3T1FAN 92X25MM 12VDC TACH COMPUTER |
4,682 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.32 W | 2450 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512M2B-3T1FAN 92X25MM 12VDC TACH COMPUTER |
4,839 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 2850 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
GB0504AFV3-8B1289.GNFAN BLOWER 40X10MM 5VDC WIRE |
2,151 |
|
Datasheet |
|
MagLev® GB | Bulk | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 10.00mm | - | - | Vapo-Bearing™ | Blower | - | - | - | - | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
|
9GX3612K300236X28MM 12V,GUIDE VANE, HIGH PER |
3,236 |
|
Datasheet |
|
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
109R0648G4D01FAN AXIAL 60X25MM 48VDC WIRE |
4,724 |
|
Datasheet |
|
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.36 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
