DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3612KL-05W-B50-E00FAN AXIAL 92X32MM 24VDC WIRE |
4,924 |
|
Datasheet |
 |
3612KL | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 69.9 CFM (1.96m³/min) | 0.333 in H2O (83.0 Pa) | Ball | Tubeaxial | - | 43.5dB | 6 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|

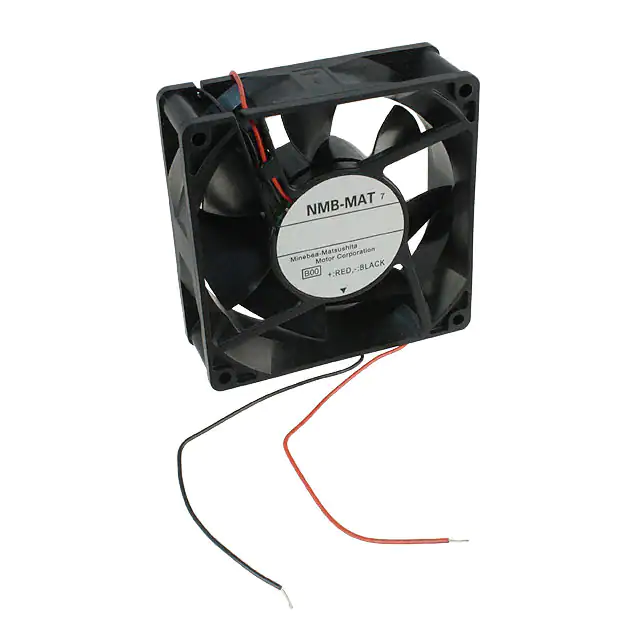

3612KL-05W-B60-B00FAN AXIAL 92X32MM 24VDC WIRE |
3,782 |
|
Datasheet |
|
3612KL | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 47.3 CFM (1.32m³/min) | 0.333 in H2O (83.0 Pa) | Ball | Tubeaxial | - | 43.5dB | 5.52 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
|
EFB1212VHEFAN AXIAL 120X38MM 12VDC WIRE |
2,138 |
|
Datasheet |
|
EFB | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | - | 47.5dB(A) | 5.76 W | 3200 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|
|
AFB1212LEFAN AXIAL 120X38MM 12VDC WIRE |
3,342 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.28 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
9GA0624G702FAN AXIAL 60X15MM 24VDC WIRE |
2,297 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 1.92 W | 5900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
OD1225-12MB10AFAN AXIAL 120X25MM 12VDC WIRE |
2,455 |
|
Datasheet |
|
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 4 W | 2500 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
CFM-8025BG-270-517-20FAN AXIAL 80X25.4MM 24VDC WIRE |
3,387 |
|
Datasheet |
|
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 72.4 CFM (2.03m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.8dB(A) | 13.44 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG-170-517-20FAN AXIAL 80X25.4MM 12VDC WIRE |
4,568 |
|
Datasheet |
|
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 72.4 CFM (2.03m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.8dB(A) | 9 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-260-540-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
4,682 |
|
Datasheet |
|
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 17.9 CFM (0.501m³/min) | 1.320 in H2O (328.8 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 54.0dB(A) | 16.56 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-160-540-20DC BLOWER, 75.7 X 75.7 X 30 MM, |
4,706 |
|
Datasheet |
|
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 20.1 CFM (0.563m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 58.0dB(A) | 11.64 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803224M2B-BT4FAN 80X32MM 24VDC PWM/TACH MOLEX |
4,486 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 8.4 W | 4800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224L2B-BT4FAN 80X32MM 24VDC PWM/TACH MOLEX |
3,312 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 49.5 CFM (1.39m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 4.8 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224H2B-BT4FAN 80X32MM 24VDC PWM/TACH MOLEX |
4,101 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 12 W | 5500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548H2B-3T1FAN 70X25MM 48VDC TACH COMPUTER |
2,570 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803224J2B-BT4FAN 80X32MM 24VDC PWM/TACH MOLEX |
4,545 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 3.6 W | 3000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0702548U2B-3T1FAN 70X25MM 48VDC TACH COMPUTER |
4,019 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 12.96 W | 5500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-9225BG-140-438-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
4,459 |
|
Datasheet |
|
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.5 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.8dB(A) | 4.32 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
09533GS-24M-ATD-0FAN 24VDC 97X95X33MM |
2,239 |
|
Datasheet |
|
09533GS | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 30.7 CFM (0.870m³/min) | 0.983 in H2O (245.0 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 55.0dB(A) | 7.92 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | - |
|
|
9GA0612H6002FAN AXIAL 60X20MM 12VDC WIRE |
4,816 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.08 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
|
|
9GA0612M6002FAN AXIAL 60X20MM 12VDC WIRE |
3,365 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 600 mW | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
