DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8038BF-2110-595-20FAN AXIAL 80X38MM 24VDC WIRE |
3,243 |
|
Datasheet |
 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 83.6 CFM (2.34m³/min) | 1.960 in H2O (488.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB(A) | 21.12 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038BF-1110-595-20FAN AXIAL 80X38MM 12VDC WIRE |
3,324 |
|
Datasheet |
|
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 83.6 CFM (2.34m³/min) | 1.960 in H2O (488.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB(A) | 19.68 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF-180-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,890 |
|
Datasheet |
|
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | 13.68 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF-280-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
3,482 |
|
Datasheet |
|
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | 13.68 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0923824U2B-2T2FAN 92X38MM 24VDC MOLEX 22-01-10 |
3,737 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 67.0dB(A) | 60 W | 7000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923824H2B-2T2FAN 92X38MM 24VDC MOLEX 22-01-10 |
3,238 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 28.8 W | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923824M2B-3T3FAN 92X38MM 24VDC TACH MOLEX 22- |
2,979 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 5000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
PFR0612UHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
3,182 |
|
Datasheet |
|
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 56.7 CFM (1.59m³/min) | 1.979 in H2O (492.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.2dB(A) | 12 W | 12500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
PFR0612DHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
4,973 |
|
Datasheet |
|
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.0 CFM (1.85m³/min) | 2.502 in H2O (623.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.3dB(A) | 19.2 W | 14500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
PFR0612XHE-F00FAN AXIAL 60X38MM 12VDC WIRE |
4,323 |
|
Datasheet |
|
PFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 76.2 CFM (2.13m³/min) | 3.185 in H2O (793.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 67.7dB(A) | 27.6 W | 16500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.287 lb (130.18 g) |
|
|
DC0923812U2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
4,692 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 30 W | 7000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0923848H2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
2,494 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 57.6 W | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923848U2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
2,391 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 67.0dB(A) | 120 W | 7000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803812L2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
2,472 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 4200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

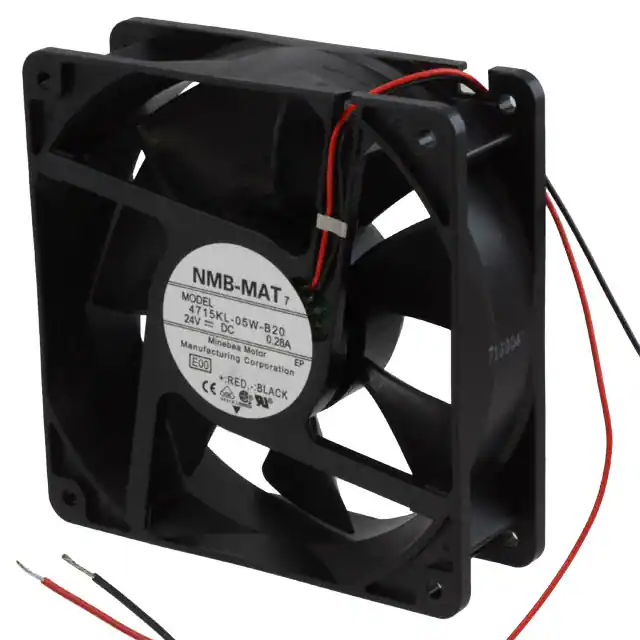

4715KL-05W-B20-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
1 |
|
Datasheet |
|
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 41.0dB | 5.04 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
4715KL-05W-B30-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,189 |
|
Datasheet |
|
11938KA | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 42.5dB | 7.44 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
19031162AFAN AXIAL 80X25.4MM 12VDC FE12B3 |
3,528 |
|
Datasheet |
|
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | Tubeaxial | - | 36.2dB(A) | 2 W | 3574 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
|
|
19031163AFAN AXIAL 80X25.4MM 24VDC FE24B3 |
3,073 |
|
Datasheet |
|
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | Tubeaxial | - | 36.2dB(A) | 2 W | 3628 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
|
|
DC0603812J2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
2,783 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 8.16 W | 9000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603812L2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
2,694 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 12 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
