DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0603812I2B-3T3FAN 60X38MM 12VDC TACH MOLEX 22- |
3,120 |
|
Datasheet |
 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 6.24 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PSD1204PBB1-A(2).Z.F.PWM.GNFAN AXIAL 40X24MM 12VDC WIRE |
2,517 |
|
Datasheet |
|
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.00mm | 21.6 CFM (0.605m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 55.7dB(A) | 6 W | 14700 RPM | 3 Wire Leads | - | - | - | - |
|
|
DC0923848M2B-BT0FAN 92X38MM 48VDC PWM/TACH |
4,225 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 43.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9WP0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
2,578 |
|
Datasheet |
|
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 4.56 W | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WP0812H402FAN AXIAL 80X25MM 12VDC WIRE |
4,211 |
|
Datasheet |
|
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.3 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1.56 W | 2900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
G1338H12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
2,322 |
|
Datasheet |
|
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
G1338H24B-FSRFAN AXIAL 127X38MM 24VDC WIRE |
2,976 |
|
Datasheet |
|
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
G1338L12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
2,914 |
|
Datasheet |
|
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
G1338L24B-FSRFAN AXIAL 127X38MM 24VDC WIRE |
3,642 |
|
Datasheet |
|
G1338 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|

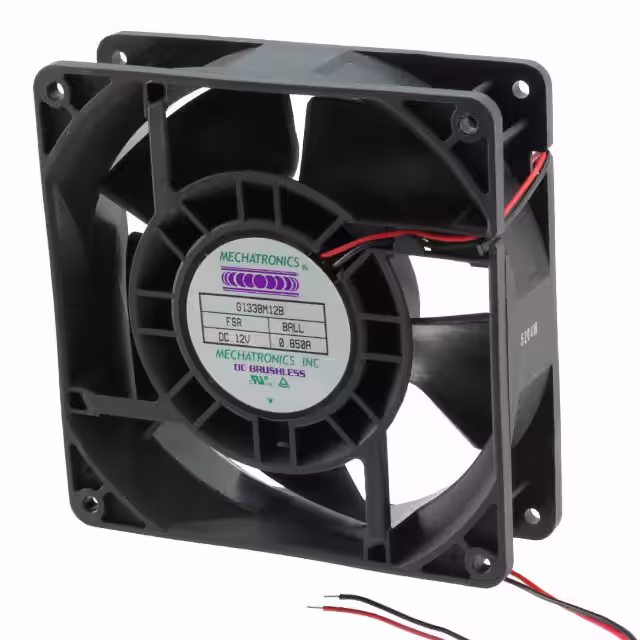

G1338S12B-FSRFAN AXIAL 127X38MM 12VDC WIRE |
4,469 |
|
Datasheet |
|
G1338 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
DC1203824U2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
3,421 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 18 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824V2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
4,696 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 19.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923848M2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
2,220 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 43.2 W | 5000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803848H2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
4,009 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 48 W | 6100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803848M2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
2,389 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 36.48 W | 5600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923812M2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
3,912 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 10.8 W | 5000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803848U2B-BT4FAN 80X38MM 48VDC PWM/TACH MOLEX |
4,396 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 72 W | 7500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
GFC0412DG-CMA4FAN AXIAL DUAL 40X48MM 12VDC |
2,247 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 32.4 CFM (0.907m³/min) | 2.382 in H2O (593.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.4dB(A) | 16.8 W | 15150 Front, 14300 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.167 lb (75.75 g) |
|
|
DC0923824M2B-BT4FAN 92X38MM 24VDC PWM/TACH MOLEX |
2,042 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 21.6 W | 5000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0923812V2B-2T0FAN AXIAL 92X38MM 12VDC WIRE |
4,467 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 72.0dB(A) | 35.4 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.441 lb (200.00 g) |
