DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0912DHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
199 |
|
Datasheet |
 |
PFB | Bulk | Not For New Designs | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 37.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0812DHEFAN AXIAL 80X38MM 12VDC WIRE |
521 |
|
Datasheet |
|
PFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 33 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
614N/2MFAN AXIAL 60X25.4MM 24VDC WIRE |
296 |
|
Datasheet |
|
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 1.4 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
MZB3005T06FAN MIC BLOWR 19X2.3MM 8-19.5VDC |
356 |
|
Datasheet |
|
- | Tray | Active | 8 ~ 19.5VDC | Square - 19mm L x 19mm H | 2.30mm | 0.006 CFM (0.0002m³/min) | 200.737 in H2O (50000.0 Pa) | - | Micro Blower | - | - | 1.1 W | - | 2 Terminals | - | 32°F ~ 113°F (0°C ~ 45°C) | - | - |
|
PFB1224GHEFAN AXIAL 120X38MM 24VDC WIRE |
217 |
|
Datasheet |
|
PFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 32.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
9HV0612P1J001FAN AXIAL DUAL 60X38MM 12VDC |
120 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.4 CFM (1.86m³/min) | 7.000 in H2O (1743.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 32.4 W | 21700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.298 lb (135.17 g) |
_Series.jpg)
|
3414N/39HHFAN AXIAL 92X25.4MM 24VDC WIRE |
214 |
|
Datasheet |
|
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | 3250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|
PFR1212UHE-SP00FAN AXIAL 120X38MM 12VDC WIRE |
2,606 |
|
Datasheet |
|
PFR | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 228.6 CFM (6.40m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.5dB(A) | 32.4 W | 6600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.904 lb (410.05 g) |
|

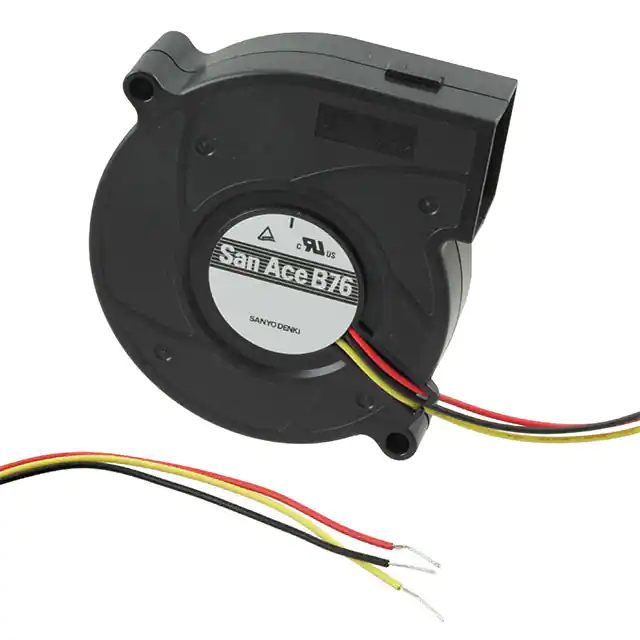

109BD12HC2FAN BLOWER 76X30MM 12VDC WIRE |
513 |
|
Datasheet |
|
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 4.44 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
8312HLFAN AXIAL 80X32MM 12VDC WIRE |
383 |
|
Datasheet |
|
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 4 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|

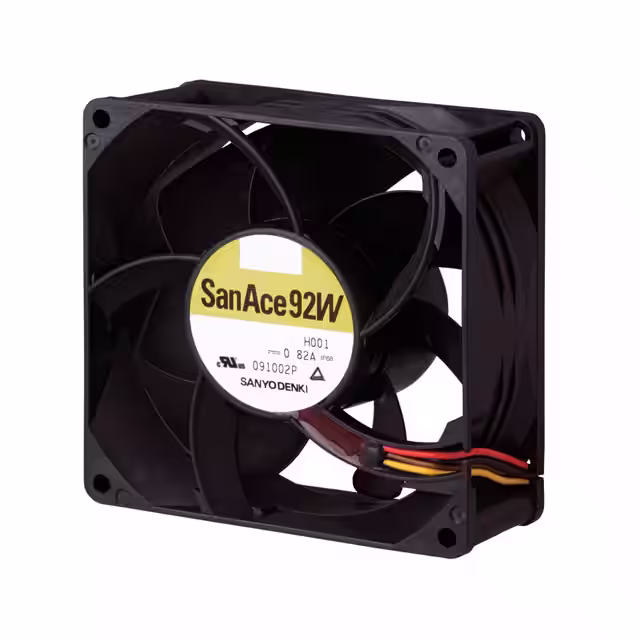

9WV0948P1H001FAN AXIAL 92X38MM 48VDC WIRE |
1,321 |
|
Datasheet |
|
San Ace 92W | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 39.4 W | 8500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.584 lb (264.9 g) |
|
19030616AFAN AXIAL 80X32MM 24VDC ST24B3 |
657 |
|
Datasheet |
|
Sprint | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.3 W | 3440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 0.397 lb (180.08 g) |
|

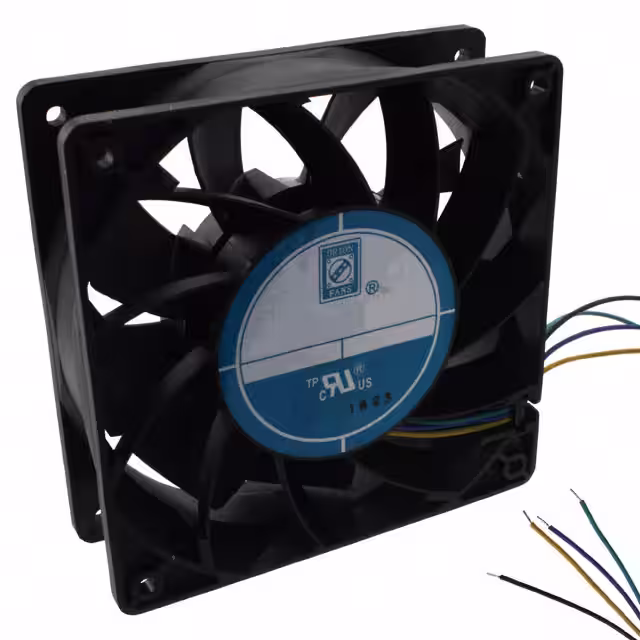

OD1238-12HBVXC10AFAN AXIAL 120X38MM 12VDC WIRE |
227 |
|
Datasheet |
|
OD1238 VA | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.0dB | 43.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
9CRV0412P5J201FAN AXIAL DUAL 40X56MM 12VDC |
108 |
|
Datasheet |
|
San Ace 40 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 21.6 W | 22500 Front, 20000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
19030598AFAN AXIAL 120X32MM 12VDC MC12B7 |
182 |
|
Datasheet |
|
Muffin | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.8dB(A) | 7.9 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
19030829AFAN AXIAL 80X32MM BALL 5V ST05B3 |
277 |
|
Datasheet |
|
Sprint | Box | Active | 5VDC | Square - 80mm L x 80mm H | 32.00mm | 33.0 CFM (0.924m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 2.3 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.397 lb (180.08 g) |
|

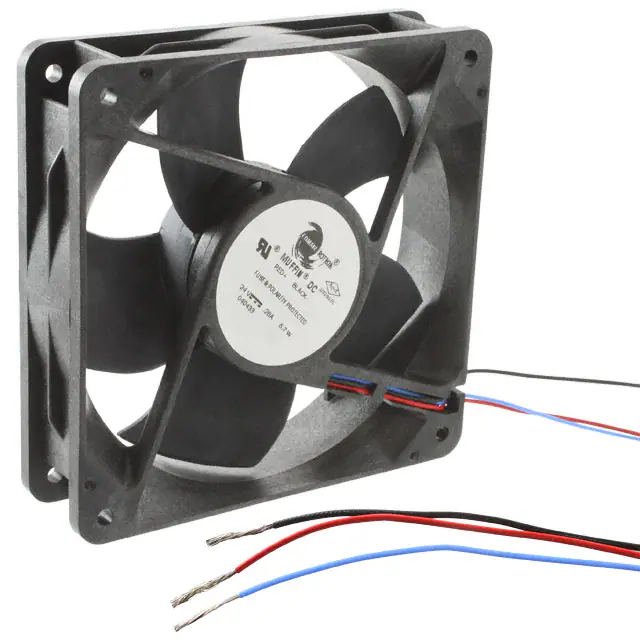

19040433AFAN AXIAL 120X32MM 24V MC24B3NDN |
235 |
|
Datasheet |
|
Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 47.8dB(A) | 5.5 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | - |
|
9G1212H101FAN AXIAL 119X38MM 12VDC WIRE |
208 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
614NHH-119FAN AXIAL 60X25.4MM 24VDC WIRE |
432 |
|
Datasheet |
|
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 2.9 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
9HV0848P1G001FAN AXIAL 80X38MM 48VDC WIRE |
916 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 130.6 CFM (3.66m³/min) | 4.017 in H2O (1000.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
