DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-12MBXEFAN AXIAL 120X38MM 12VDC WIRE |
4,362 |
|
Datasheet |
 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 210.1 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart | 59.3dB(A) | 34 W | 4650 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
FFB1224SHE-F00FAN AXIAL 120X38MM 24VDC WIRE |
3,052 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.5dB(A) | 19.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
FFB1224VHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
3,170 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
DC0803848L2B-3T1FAN 80X38MM 48VDC TACH COMPUTER |
4,695 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 19.2 W | 4200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923848M2B-3T1FAN 92X38MM 48VDC TACH COMPUTER |
2,966 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 43.2 W | 5000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
AFB0912UHE-AF00FAN AXIAL 92X38MM 12VDC WIRE |
4,741 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 160.2 CFM (4.49m³/min) | 1.002 in H2O (249.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 63.0dB(A) | 30 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
DC0603848I2B-3T1FAN 60X38MM 48VDC TACH COMPUTER |
3,813 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 24.96 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848J2B-3T1FAN 60X38MM 48VDC TACH COMPUTER |
2,840 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 32.64 W | 9000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848L2B-3T1FAN 60X38MM 48VDC TACH COMPUTER |
3,758 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 48 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GL1248E1D01FAN AXIAL 120X38MM 48VDC WIRE |
2,271 |
|
Datasheet |
|
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248G1D01FAN AXIAL 120X38MM 48VDC WIRE |
4,080 |
|
Datasheet |
|
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248E101FAN AXIAL 119X38MM 48VDC WIRE |
2,587 |
|
Datasheet |
|
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248G101FAN AXIAL 119X38MM 48VDC WIRE |
4,695 |
|
Datasheet |
|
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9RA1224E4D001120X25MM 24V, LOW NOISE DC LCKRT |
4,718 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.GN.JPG)
|

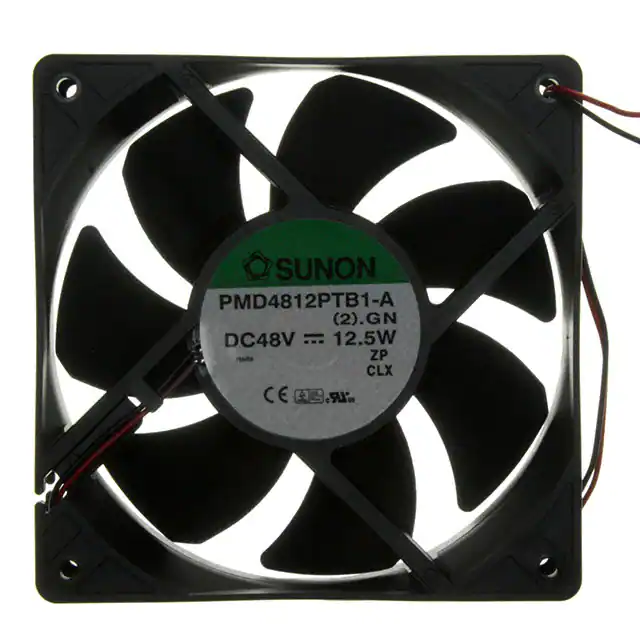

PMD4812PTB1-A.(2).GNFAN AXIAL 120X25MM 48VDC WIRE |
4,502 |
|
Datasheet |
|
PMD | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 150.0 CFM (4.20m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 12.5 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.485 lb (219.99 g) |
|
|
9WP0648H4D011FAN AXIAL 60X25MM 48VDC WIRE |
3,359 |
|
Datasheet |
|
San Ace 60W | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.92 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WP0648H4011FAN AXIAL 60X25MM 48VDC WIRE |
4,285 |
|
Datasheet |
|
San Ace 60W | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 3800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9BMB12G202FAN BLOWER 97.1X33MM 12VDC WIRE |
3,351 |
|
Datasheet |
|
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Protection | 61.0dB(A) | 21.6 W | 5750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB24G202FAN BLOWER 97.1X33MM 24VDC WIRE |
4,899 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Protection | 61.0dB(A) | 19.9 W | 5750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9GA0924G402FAN AXIAL 92X25.2MM 24VDC WIRE |
3,444 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 68.2 CFM (1.91m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 4400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
