DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9BMB12H2D01FAN BLOWER 97.1X33MM 12VDC WIRE |
4,312 |
|
Datasheet |
 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Sensor | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB24F2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
2,122 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | Blower | Locked Rotor Sensor | 56.0dB(A) | 10.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB24H2D01FAN BLOWER 97.1X33MM 24VDC WIRE |
4,668 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Sensor | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
9BMB12H201FAN BLOWER 97.1X33MM 12VDC WIRE |
2,976 |
|
Datasheet |
|
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
DC0923848H2B-3T1FAN 92X38MM 48VDC TACH COMPUTER |
4,876 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 57.6 W | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
OD1238-48LBFAN AXIAL 120X38.5MM 48VDC WIRE |
4,453 |
|
Datasheet |
|
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 26.0dB | 5 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD127-48HBXCFAN AXIAL 127X38.5MM 48VDC WIRE |
2,640 |
|
Datasheet |
|
OD127 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.50mm | 226.0 CFM (6.33m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 65.0dB | - | 4500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
PFR0812DHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
3,836 |
|
Datasheet |
|
PFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 109.5 CFM (3.07m³/min) | 2.187 in H2O (544.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 25.2 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.573 lb (260.00 g) |
|
|
OD1238-48H3BThermal Products |
3,264 |
|
- |
|
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart | 54.0dB(A) | 20.5 W | 4190 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
DC1203812L2B-3T1FAN 120X38MM 12VDC TACH COMPUTER |
2,809 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8038BF-1150-662-20FAN AXIAL 80X38MM 12VDC WIRE |
2,255 |
|
Datasheet |
|
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 114.3 CFM (3.20m³/min) | 3.640 in H2O (906.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.3dB(A) | 36.48 W | 15000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

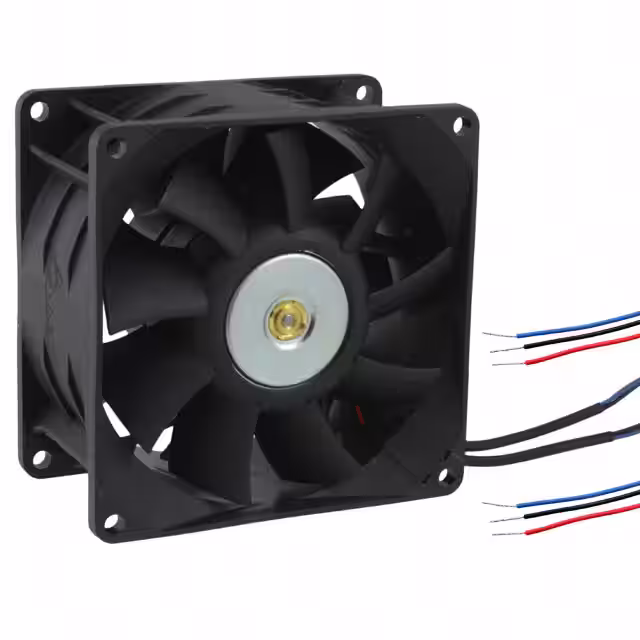

GFB0912SHG-F00FAN AXIAL DUAL 92X50.8MM 12VDC |
3,846 |
|
Datasheet |
|
GFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 50.80mm | 103.1 CFM (2.89m³/min) | 0.651 in H2O (162.2 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 61.5dB(A) | 15.6 W | 4100 Front, 3700 Rear | 3 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
AFB1212EHE-CF00FAN AXIAL 120X38MM 12VDC WIRE |
4,465 |
|
Datasheet |
|
AFB | Bulk | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.5dB(A) | 21.6 W | 4600 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
9CR0412H502FAN AXIAL DUAL 40X56MM 12VDC |
2,787 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating | 54.0dB(A) | 8.64 W | 13300 Front, 9300 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
|
9BMB12G2D01FAN BLOWER 97.1X33MM 12VDC WIRE |
4,540 |
|
Datasheet |
|
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 47.3 CFM (1.32m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Blower | Locked Rotor Sensor | 61.0dB(A) | 21.6 W | 5750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
9WP0812G401FAN AXIAL 80X25MM 12VDC WIRE |
2 |
|
Datasheet |
|
San Ace 80W | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9G1224F1011FAN AXIAL 119X38MM 24VDC WIRE |
3,343 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1224F1D01FAN AXIAL 119X38MM 24VDC WIRE |
4,090 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1212M1011FAN AXIAL 119X38MM 12VDC WIRE |
2,425 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1212M1D01FAN AXIAL 120X38MM 12VDC WIRE |
3,851 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
