DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5015KL-04W-B39-E00DC AXIAL FAN |
3,496 |
|
Datasheet |
 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5015KL-05W-B49-E50DC AXIAL FAN |
2,381 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5015KL-05W-B19-E50DC AXIAL FAN |
2,415 |
|
Datasheet |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
19031103AFAN BLOWER 80X32.4MM 12V WT12M3 |
3 |
|
Datasheet |
|
Whiffet | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.40mm | 8.7 CFM (0.244m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.1 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 0.369 lb (167.38 g) |
|

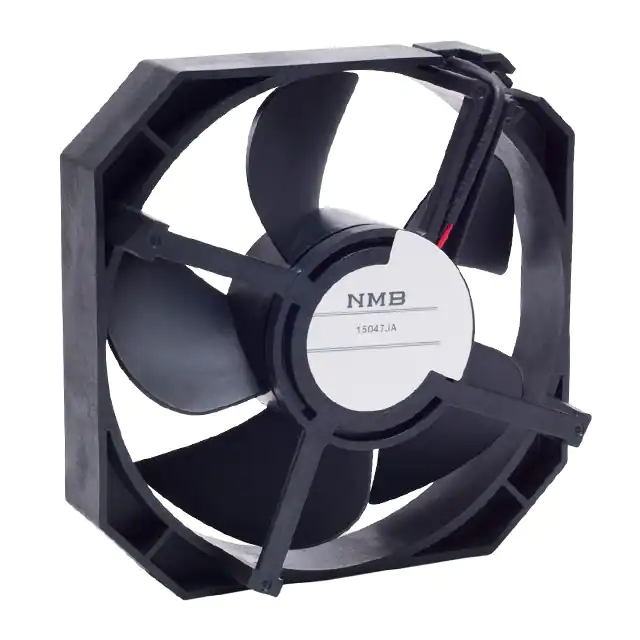

15047JA-12K-YA-00FAN AXIAL 150X47MM 12VDC WIRE |
2,932 |
|
Datasheet |
|
15047JA | Box | Active | 12VDC | Square - 150mm L x 150mm H | 47.00mm | 91.8 CFM (2.57m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 2.28 W | 1400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
9GV1248H401FAN AXIAL 120X25.4MM 48VDC WIRE |
2,416 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 154.0 CFM (4.31m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 15.84 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9GV1248H4D01120X25MM 48V,GUIDE VANE DC LCKRT |
4,284 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
414J/2HFAN AXIAL 40X25.4MM 24VDC WIRE |
3,172 |
|
- |
|
400J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 25.40mm | 12.9 CFM (0.361m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3 W | 11700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.111 lb (50.35 g) |
|
|
8394HDC TUBEAXIAL FAN |
4,009 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GV1248P4H011FAN AXIAL 120X25.4MM 48VDC WIRE |
2,528 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 154.0 CFM (4.31m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 15.84 W | 4600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9GV1512P5M011150X50MM 12V,GUIDE VANE,RBLS DC |
4,613 |
|
Datasheet |
|
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 50.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | CSA, TUV, UR | - |
|
9CR0612P0S03FAN AXIAL DUAL 60X76MM 12VDC |
4,481 |
|
Datasheet |
|
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 79.8 CFM (2.23m³/min) | 2.210 in H2O (550.5 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 11500 Front, 7000 Rear | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.507 lb (229.97 g) |
|
|
9WPA0624S400260X25MM 24VDC |
3,566 |
|
- |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 35.4 CFM (0.992m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | - | 7800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
612NGNVFAN AXIAL 60X25.4MM 12VDC WIRE |
2,388 |
|
Datasheet |
|
600N | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.1 CFM (0.676m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.4 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.146 lb (66.22 g) |
|
|
9RA1248K1001120X38MM 48VDC TACH |
2,239 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 160.8 CFM (4.50m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 4700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1248K10011120X38MM 48VDC TACH |
2,031 |
|
- |
|
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 160.8 CFM (4.50m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 4700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GV1224H102FAN AXIAL 119X38MM 24VDC WIRE |
4,437 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 19.2 W | 5200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224H1021FAN AXIAL 120X38MM 24VDC WIRE |
2,094 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 19.2 W | 5200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J102FAN AXIAL 120X38MM 24VDC WIRE |
4,157 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9GV1224J1021FAN AXIAL 120X38MM 24VDC WIRE |
3,507 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
