FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PMPB12UN,115MOSFET N-CH 20V 7.9A 6DFN NXP USA Inc. |
5,892 | - |
|
- |
 |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 1.8V, 4.5V | 18mOhm @ 7.9A, 4.5V | 1V @ 250µA | 13 nC @ 4.5 V | ±8V | 886 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN2020MD (2x2) |
|

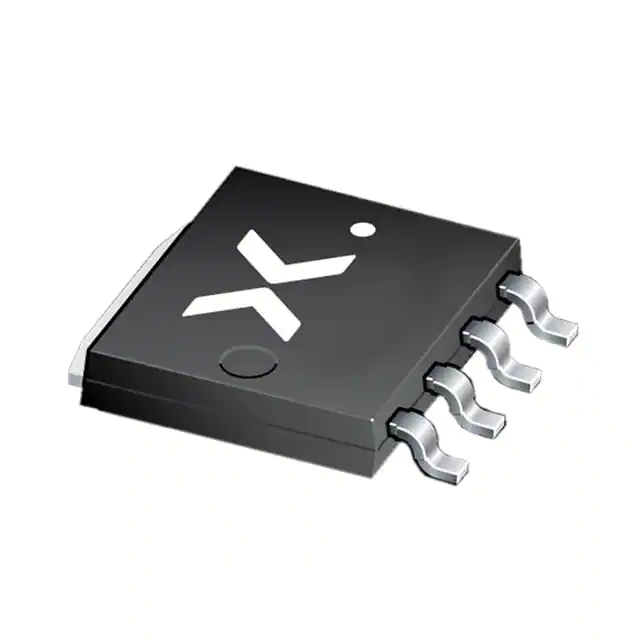

PH1225AL,115MOSFET N-CH 25V 100A LFPAK56 NXP USA Inc. |
4,294 | - |
|
Datasheet |
|
TrenchMOS™ | SOT-1023, 4-LFPAK | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 100A (Tc) | - | 1.2mOhm @ 15A, 10V | 2.15V @ 1mA | 105 nC @ 10 V | - | 6380 pF @ 12 V | - | - | - | - | - | Surface Mount | LFPAK56; Power-SO8 |
|
BUK6213-30A,118TRANSISTOR >30MHZ NXP USA Inc. |
5,270 | - |
|
Datasheet |
|
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Tc) | 10V | 13mOhm @ 10A, 10V | 3V @ 1mA | 44 nC @ 10 V | ±16V | 1986 pF @ 25 V | - | 102W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BUK6228-55C,118PFET, 31A I(D), 55V, 0.044OHM, 1 NXP USA Inc. |
5,437 | - |
|
Datasheet |
|
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 29mOhm @ 10A, 10V | 2.8V @ 1mA | 20.2 nC @ 10 V | ±16V | 1340 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
SOT223-1.jpg)
|
BUK7880-55,135MOSFET N-CH 55V 3.5A SOT223 NXP USA Inc. |
4,017 | - |
|
Datasheet |
|
TrenchMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 3.5A (Ta) | 10V | 80mOhm @ 5A, 10V | 4V @ 1mA | - | ±16V | 500 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-73 |
|
PSMN017-30LL,115MOSFET N-CH 30V 15A 8DFN NXP USA Inc. |
5,884 | - |
|
- |
|
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 17mOhm @ 5A, 10V | 2.15V @ 1mA | 10 nC @ 10 V | ±20V | 526 pF @ 15 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN3333 (3.3x3.3) |
|
BUK7225-55A,118N-CHANNEL TRENCHMOS STANDARD LEV NXP Semiconductors |
4,047 | - |
|
Datasheet |
|
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 43A (Ta) | 10V | 25mOhm @ 25A, 10V | 4V @ 1mA | - | ±20V | 1310 pF @ 25 V | - | 94W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
BUK95150-55A,127MOSFET N-CH 55V 13A TO220AB NXP USA Inc. |
5,392 | - |
|
Datasheet |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 13A (Tc) | 4.5V, 10V | 137mOhm @ 13A, 10V | 2V @ 1mA | - | ±10V | 339 pF @ 25 V | - | 53W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BUK7535-55A,127PFET, 35A I(D), 55V, 0.035OHM, 1 NXP USA Inc. |
5,806 | - |
|
Datasheet |
|
TrenchMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 10V | 35mOhm @ 20A, 10V | 4V @ 1mA | - | ±20V | 872 pF @ 25 V | - | 85W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
BSH207,135MOSFET P-CH 12V 1.52A 6TSOP NXP USA Inc. |
3,856 | - |
|
Datasheet |
|
- | SC-74, SOT-457 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 1.52A (Ta) | 1.8V, 4.5V | 120mOhm @ 1A, 4.5V | 600mV @ 1mA (Typ) | 8.8 nC @ 4.5 V | ±8V | 500 pF @ 9.6 V | - | 417mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
