FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN5R6-100XS,127MOSFET N-CH 100V 61.8A TO220F NXP USA Inc. |
5,329 | - |
|
- |
 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 61.8A (Tc) | 10V | 5.6mOhm @ 15A, 10V | 4V @ 1mA | 145 nC @ 10 V | ±20V | 8061 pF @ 50 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
|
PSMN7R0-100XS,127MOSFET N-CH 100V 55A TO220F NXP USA Inc. |
4,832 | - |
|
Datasheet |
|
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 55A (Tc) | 10V | 6.8mOhm @ 15A, 10V | 4V @ 1mA | 121 nC @ 10 V | ±20V | 6686 pF @ 50 V | - | 57.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F |
|
PMV62XN,215MOSFET N-CH SOT-23 NXP USA Inc. |
5,841 | - |
|
- |
|
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PMV65UN,215MOSFET N-CH 20V 2.2A TO236AB NXP USA Inc. |
5,182 | - |
|
Datasheet |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 1.8V, 4.5V | 76mOhm @ 2A, 4.5V | 1V @ 250µA | 3.9 nC @ 4.5 V | ±8V | 183 pF @ 10 V | - | 310mW (Ta), 2.17W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 (TO-236AB) |
|

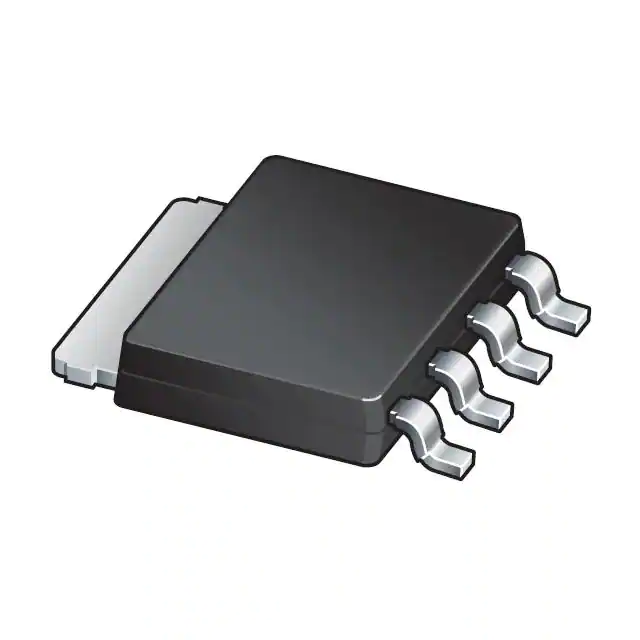

PSMN023-40YLCXMOSFET N-CH 40V 24A LFPAK56 NXP USA Inc. |
5,861 | - |
|
- |
|
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Tc) | 4.5V, 10V | 23mOhm @ 5A, 10V | 1.95V @ 1mA | 8.4 nC @ 10 V | ±20V | 520 pF @ 20 V | - | 25W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
BUK7514-60E,127MOSFET N-CH 60V 58A TO220AB NXP USA Inc. |
3,219 | - |
|
Datasheet |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 58A (Tc) | 10V | 13mOhm @ 15A, 10V | 4V @ 1mA | 22.9 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK753R5-60E,127MOSFET N-CH 60V 120A TO220AB NXP USA Inc. |
3,333 | - |
|
- |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.5mOhm @ 25A, 10V | 4V @ 1mA | 114 nC @ 10 V | ±20V | 8920 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9515-60E,127MOSFET N-CH 60V 54A TO220AB NXP USA Inc. |
5,669 | - |
|
- |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Tc) | 5V, 10V | 13mOhm @ 15A, 10V | 2.1V @ 1mA | 20.5 nC @ 5 V | ±10V | 2651 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK951R6-30E,127MOSFET N-CH 30V 120A TO220AB NXP USA Inc. |
4,641 | - |
|
- |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 5V, 10V | 1.4mOhm @ 25A, 10V | 2.1V @ 1mA | 113 nC @ 5 V | ±10V | 16150 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK951R9-40E,127MOSFET N-CH 40V 120A TO220AB NXP USA Inc. |
3,198 | - |
|
Datasheet |
|
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 5V, 10V | 1.7mOhm @ 25A, 10V | 2.1V @ 1mA | 120 nC @ 5 V | ±10V | 16400 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
